Wurth Elektronik WE-PD2 5820 Unshielded Wirewound Surface Mount Inductor with Ferrite Core 3.3μH ±20% 3A Idc 7447745033

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik WE-PD2 5820 Unshielded Wirewound Surface Mount Inductor with Ferrite Core 3.3μH ±20% 3A Idc 7447745033

Name: Wurth Elektronik WE-PD2 5820 Unshielded Wirewound Surface Mount Inductor with Ferrite Core 3.3μH ±20% 3A Idc 7447745033
Brand: Wurth Elektronik
SKU: 368471
Price: 1.93 USD
Availability: InStock



Category Power Inductors Brand Wurth Elektronik Condition New

Specifications

Country of Origin	China
Brand	Wurth Elektronik
Height	2mm
Length	5.8mm
Depth	5.2mm
Packaging	Tape & Reel
Series	WE-PD2
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Core Material	Ferrite
Inductance	3.3μH
Standards/Approvals	JEDEC JS709B, REACH, RoHS
Package/Case	5820
Maximum DC Current	3A
Pin Count	2
Maximum DC Resistance	49mΩ
Inductance Tolerance	±20 %
Termination Style	Surface Mount
Maximum Self Resonant Frequency	57MHz
Inductor Construction	Wirewound
Automotive Standard	AEC-Q200

Key Features

This inductor features a ferrite core ensuring efficient magnetic performance.
Inductance tolerance is ±20%, suitable for precision applications.
Maximum DC resistance is 49mΩ, minimizing power loss.
Operates reliably within -40°C to 125°C temperature range.
Compliant with JEDEC JS709B, REACH, and RoHS standards for quality and environmental safety.
Designed for surface mount technology with a tape & reel packaging format.
Constructed as wirewound with an unshielded design for flexibility in circuit layouts.
Typical applications include switching regulators, integrated DC/DC converters, and high-efficiency power systems.

Product Description

Wurth Elektronik model 7447745033 represents a WE-PD2 series unshielded wirewound surface mount inductor with a ferrite core, offering an inductance of 3.3μH with a tolerance of ±20%. It supports a maximum DC current of 3 A, making it suitable for robust power regulation and filtering tasks.

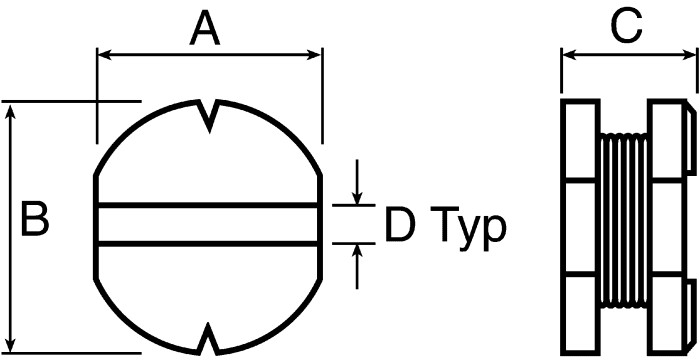

Its 5820 package size measures 5.8mm in length, 5.2mm in depth, and 2mm in height, optimized for surface mount technology and enabling efficient PCB integration. The component withstands operational temperatures from -40°C up to 125°C and is compliant with automotive AEC-Q200 and international standards such as JEDEC JS709B, REACH, and RoHS, ensuring performance reliability and environmental compliance.

The wirewound construction on a ferrite core materials ensures high efficiency with a maximum DC resistance of 49mΩ and a self-resonant frequency of 57MHz. It is molded to a durable finish and packaged in tape & reel format for automated assembly lines.

This inductor is ideal for use in switching regulators with low operating voltages found in computer systems, laptops, mobile phones, pagers, and integrated DC/DC converters where high efficiency is critical.

Ferrite core enhances magnetic efficiency. 3.3μH inductance with ±20% tolerance supports precise filtering. 3 A maximum DC current accommodates medium power applications. Wide operating temperature range from -40°C to 125°C ensures reliability.

Compliant with JEDEC JS709B, REACH, and RoHS standards. Wirewound construction for stable inductance and low resistance. Unshielded design for flexible circuit layout options. 5820 package size optimized for surface mounting.

Available in tape and reel packaging for efficient manufacturing. Common industrial applications include use in power supplies, automotive switching regulators, and energy-efficient electronic devices. Explore the full range of Wurth Elektronik inductors and components in the Electronics & Electricals category at EnvMart.
