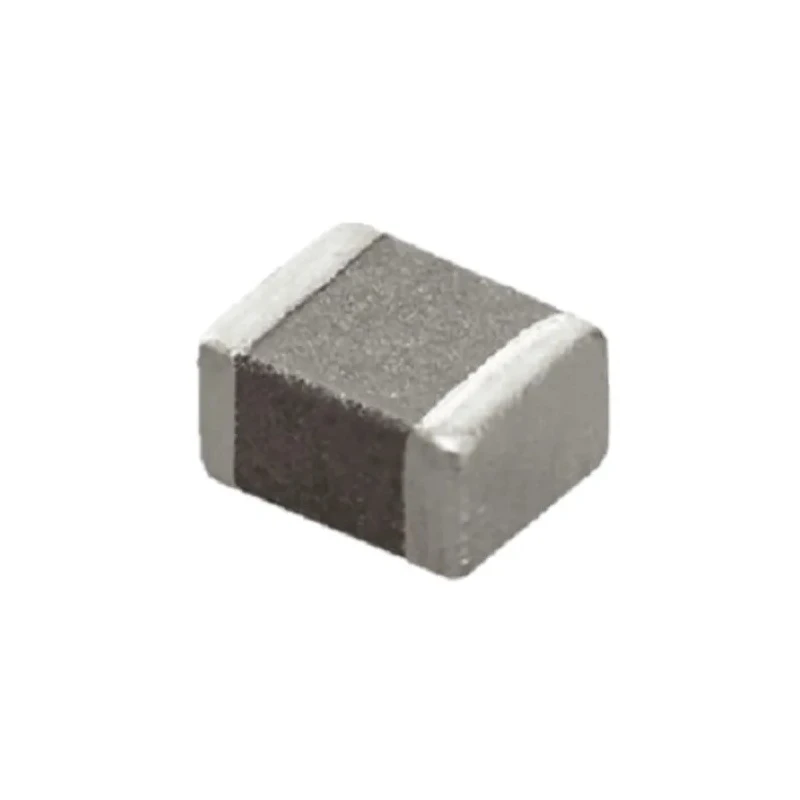

Murata 1210 Unshielded Surface Mount Metal Alloy Core Wirewound Inductor 4.7μH ±20% 3.4A DFE3225RFD
Specifications
| Country of Origin | India |
|---|---|
| Brand | Murata |
| Height | 2mm |
| Length | 3.2mm |
| Model | DFE3225RFD |
| Depth | 2.5mm |
| Packaging | Tape & Reel |
| Series | DFE3225RFD |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Metal Alloy |
| Inductance | 4.7μH |
| Standards/Approvals | RoHS |
| Package/Case | 1210 |
| Maximum DC Current | 3.4A |
| Pin Count | 2 |
| Maximum DC Resistance | 98mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- The 1210 package features precise 3.2mm length, 2mm height, and 2.5mm depth dimensions.
- Constructed with a metal alloy core and wirewound design for durability and performance.
- Operates within a temperature range from -40°C to 125°C, compliant with automotive AEC-Q200 standards.
- Surface mount termination style ensures easy PCB integration and assembly.
- Maximum DC resistance is 98 milliohms, minimizing power loss during operation.
- Inductance test frequency is set at 1 MHz, suitable for automotive and industrial applications.
- RoHS compliant with molded casing designed for reliable performance in harsh environments.
- Supplied in tape & reel packaging for automated assembly processes.
Product Description
Murata DFE3225RFD 1210 unshielded surface mount inductor is designed with a metal alloy core and wirewound construction, delivering a 4.7μH inductance value with ±20% tolerance. Its compact 1210 package measures 3.2mm in length, 2mm in height, and 2.5mm in depth, making it ideal for dense PCB layouts in automotive and industrial electronics.
This surface mount inductor supports a maximum DC current of 3.4 A and a maximum operating temperature of 125°C, satisfying the rigorous AEC-Q200 automotive standard. The maximum DC resistance of 98 milliohms ensures efficient power management with minimal losses.
The component features a surface mount termination style and is supplied molded in tape & reel packaging, facilitating automated PCB assembly. It operates reliably in harsh conditions ranging from -40°C to 125°C, making it suitable for applications demanding high durability and temperature resilience, such as automotive control systems and power supply circuits.
The inductance test frequency is specified at 1 MHz, ensuring stable performance in high-frequency environments. RoHS compliance guarantees that the product meets environmental and safety regulations, adding to its industrial reliability.
The 1210 package type allows for surface mount technology compatibility. Metal alloy core improves magnetic shielding and performance. Wirewound construction enhances current carrying capacity and inductive stability. AEC-Q200 automotive qualification supports use in vehicle applications.
Tape & reel packaging supports mass production and automation.
This Murata surface mount inductor is well-suited for applications in automotive electronics, industrial machinery, power management systems, and other commercial-grade electronic devices requiring compact, high-performance inductors.
Explore more surface mount Inductors and related electronic components on EnvMart for your industrial and commercial needs.
