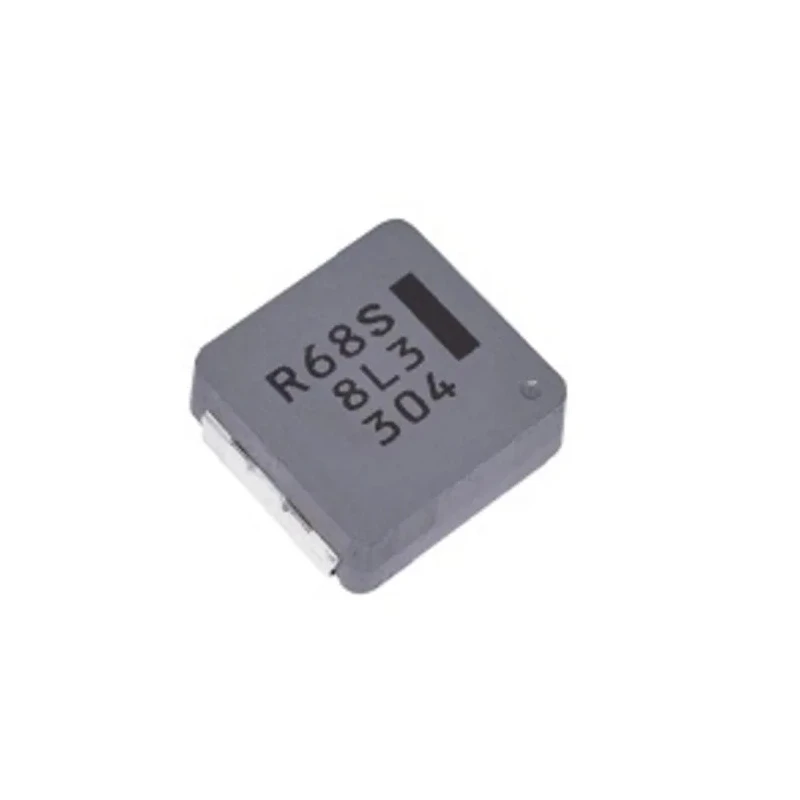

Panasonic Shielded Power Choke Coil with Metal Composite Core 1.9 μH ±20 % 29.8 A Idc Surface Mount ETQP5M
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 5mm |
| Length | 10.9mm |
| Model | ETQP5M |
| Depth | 5mm |
| Packaging | Tape & Reel |
| Series | ETQP5M |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Metal Composite |
| Inductance | 1.9μH |
| Standards/Approvals | RoHS |
| Maximum DC Current | 29.8A |
| Pin Count | 2 |
| Maximum DC Resistance | 4.9mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 100kHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Metal composite core provides stable inductance and low losses.
- Designed for automotive and high vibration environments.
- High heat resistance operation up to 150°C including self-heating.
- Low DC resistance of 4.9 mΩ ensures high efficiency.
- Shielded construction reduces electromagnetic interference.
- Wirewound inductor construction with surface mount termination.
- Complies with RoHS and automotive standard AEC-Q200.
- Compact size with 10.9 mm length, 5 mm height and depth.
Product Description
Panasonic ETQP5M shielded power choke coil features a metal composite core and offers 1.9 μH inductance with a ±20 % tolerance and a maximum DC current rating of 29.8 A. This surface mount device is designed for demanding applications including automotive use, providing excellent robustness and reliability under severe environmental conditions.
The coil exhibits high heat resistance with operation temperatures up to 150°C including the effects of self-heating. Its construction ensures low audible buzz noise and high efficiency with a low DC resistance winding of 4.9 mΩ and minimal eddy current losses in the core material. The shielded design reduces electromagnetic interference, making it suitable for sensitive electronic circuits.
The wirewound inductor is compact with dimensions of 10.9 mm length, 5 mm height, and 5 mm depth, suited for space-constrained PCB designs. It meets the automotive industry standard AEC-Q200 and is RoHS compliant, supporting environmentally conscious manufacturing.
Typical applications include automotive electronics, power management systems, and other industrial equipment requiring stable inductance and reliability under vibration and temperature stress. Packaging is supplied as tape and reel to support automated manufacturing processes.
Metal composite core provides stability and low core losses. High vibration resistance and robustness for automotive use. Wide operating temperature range from -40°C to 150°C. Low DC resistance winding minimizes power loss.
Shielded design for EMI reduction in sensitive circuits. Wirewound construction ensuring excellent inductance stability. Compact and low-profile SMD package for PCB integration. Compliance with RoHS and AEC-Q200 automotive standards.
Suitable for power choke applications in automotive and industrial circuits. Tape and reel packaging for ease of assembly. Explore more industrial-grade Surface Mount Inductors at EnvMart for your automotive and electronics manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ETQP5M has an inductance value of 1.9 μH with a tolerance of ±20%.
This model has a maximum DC current rating of 29.8 A.
The dimensions of this unit are 10.9 mm in length, 5 mm in height, and 5 mm in depth.
The maximum operating temperature for the ETQP5M is 150°C.
Yes, it complies with RoHS and the automotive standard AEC-Q200.
The choke coil features a metal composite core, which provides stability and low losses.
The ETQP5M uses a surface mount termination style.
The maximum DC resistance is 4.9 mΩ, ensuring high efficiency.
It is supplied in tape and reel packaging, suitable for automated manufacturing processes.
This model is suitable for automotive electronics, power management systems, and other industrial equipment requiring stable inductance.
The maximum self-resonant frequency for this inductor is 100 kHz.
It features a wirewound construction, which ensures excellent inductance stability.
