Taiwan Semiconductor 1000 V 300 A 4-Pin Single Bridge Rectifier GBPC2510

Free Delivery in India | Lowest Global Shipping Charges

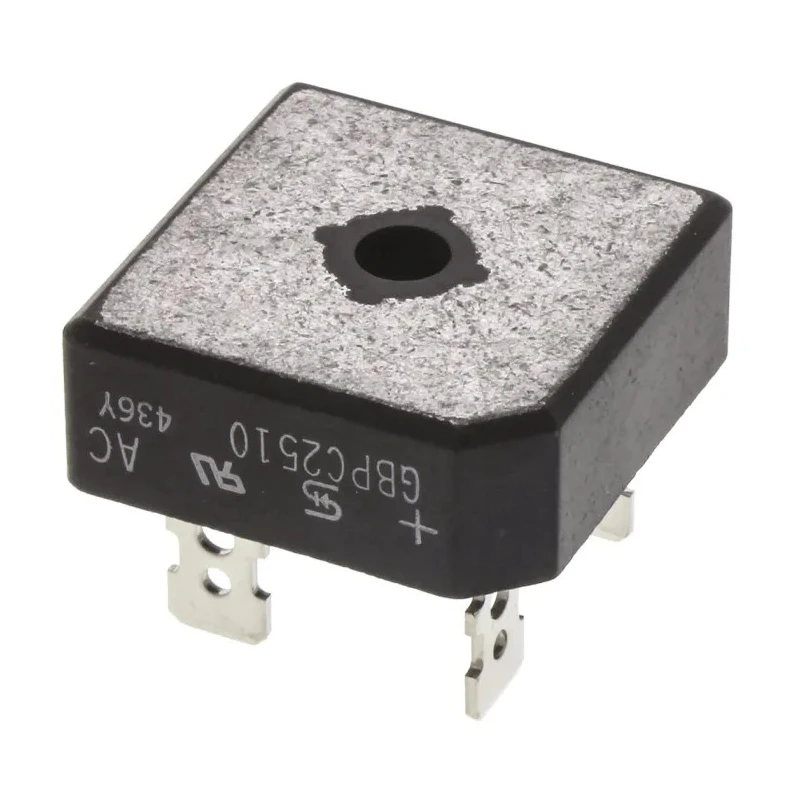

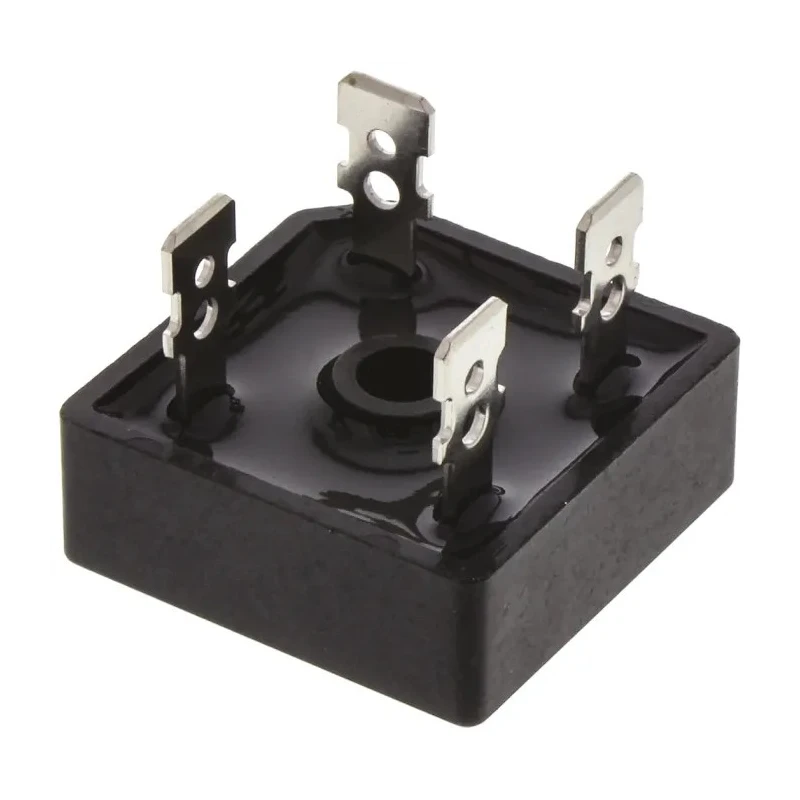

Taiwan Semiconductor 1000 V 300 A 4-Pin Single Bridge Rectifier GBPC2510

Name: Taiwan Semiconductor 1000 V 300 A 4-Pin Single Bridge Rectifier GBPC2510
Brand: Taiwan Semiconductor
SKU: 350418
Price: 3.1 USD
Availability: InStock



Category Bridge Rectifier Brand Taiwan Semiconductor Condition New

Specifications

Country of Origin	China
Brand	Taiwan Semiconductor
Height	11.23mm
Length	29mm
Model	GBPC2510
Width	29mm
Mount Type	Screw
Series	GBPC25
Configuration	Single
Maximum Operating Temperature	150°C
Package Type	GBPC
Minimum Operating Temperature	-50°C
Number of Phases	1
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	1000V
Peak Reverse Current Ir	5μA
Peak Non-Repetitive Forward Surge Current Ifsm	300A
Forward Current If	25A
Peak Forward Voltage Vf	1.1V
Vishay Bridge Rectifier, 1000 V 300 A, 4-Pin SingleBrand	Vishay
Diodes Inc Bridge Rectifier, 25A, 200V, 4-PinBrand	DiodesZetex

Key Features

Features screw mount type suitable for secure electrical connections.
Operates efficiently with a forward current of 25A and peak surge current of 300A.
Equipped with integrally molded heat-sink for low thermal resistance and effective heat dissipation.
Compact dimensions of 29mm length, 29mm width, and 11.23mm height enable versatile installation.
Rated for maximum operating temperature up to 150°C and minimum down to -50°C for robust performance.
Isolated voltage from case to lead exceeds 2500 V, ensuring safety in electrical designs.
Fast-on terminals provide ease of installation in electrical circuits.
High reliability diode bridge circuit converts AC input to DC output with consistent polarity.

Product Description

Taiwan Semiconductor GBPC2510 4-Pin Single Bridge Rectifier is engineered for high performance in industrial and electronic power applications. It supports a peak reverse repetitive voltage of 1000 V and forward current capabilities up to 25 A, ensuring reliable conversion of alternating current (AC) to direct current (DC) in power supply circuits.

The device features an integrally molded heat-sink which offers very low thermal resistance for optimal heat dissipation, enhancing operational stability even under demanding conditions. The screw mount type and fast-on terminals allow for secure and easy installation in various electrical assemblies.

With a compact size of 29 mm x 29 mm x 11.23 mm, this rectifier fits well in constrained mechanical spaces. It is designed to operate across a wide temperature range from -50°C up to 150°C, making it suitable for diverse industrial environments.

An isolated voltage rating of over 2500 V from case to lead provides electrical safety advantages. The single-phase, 4-pin configuration offers straightforward integration in bridge rectifier applications converting AC into DC power supply.

Peak repetitive reverse voltage of 1000 V ensures robust voltage handling. Forward current rating of 25 A supports moderate power demands. Peak surge current of 300 A accommodates transient overloads. Thermal management through integrally molded heat-sink improves reliability.

Fast-on terminals provide quick and secure connection options. Wide operating temperature range supports industrial and commercial use.

This bridge rectifier is well suited for electronic components manufacturing, power conversion systems, automotive electronics, and general-purpose semiconductor applications. Its design supports efficient power handling and durability in various electronic and electrical infrastructure installations.

Explore additional Taiwan Semiconductor power semiconductor devices and Bridge Rectifiers in EnvMart’s comprehensive electronics category to meet diverse design and application requirements.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The GBPC2510 has a peak reverse repetitive voltage rating of 1000 V, ensuring it can handle substantial voltage levels in various applications.

This model supports a forward current of up to 25 A, making it suitable for moderate power demands in power supply circuits.

The GBPC2510 can accommodate a peak surge current of 300 A, which is beneficial for handling transient overloads.

The dimensions of this bridge rectifier are 29 mm in length, 29 mm in width, and 11.23 mm in height, allowing for versatile installation in constrained spaces.

It operates efficiently within a temperature range of -50°C to 150°C, making it suitable for diverse industrial environments.

This rectifier is equipped with an integrally molded heat-sink that provides low thermal resistance for optimal heat dissipation and enhanced operational stability.

It features a screw mount type, which allows for secure electrical connections during installation.

The isolation voltage from case to lead exceeds 2500 V, providing safety advantages in electrical designs.

The GBPC2510 is equipped with fast-on terminals, facilitating quick and secure connections in electrical circuits.

This model has a single-phase, 4-pin configuration, allowing for straightforward integration in bridge rectifier applications.

It is well suited for electronic components manufacturing, power conversion systems, automotive electronics, and general-purpose semiconductor applications.

The peak forward voltage for the GBPC2510 is rated at 1.1 V, which is relevant for its performance in power supply circuits.
