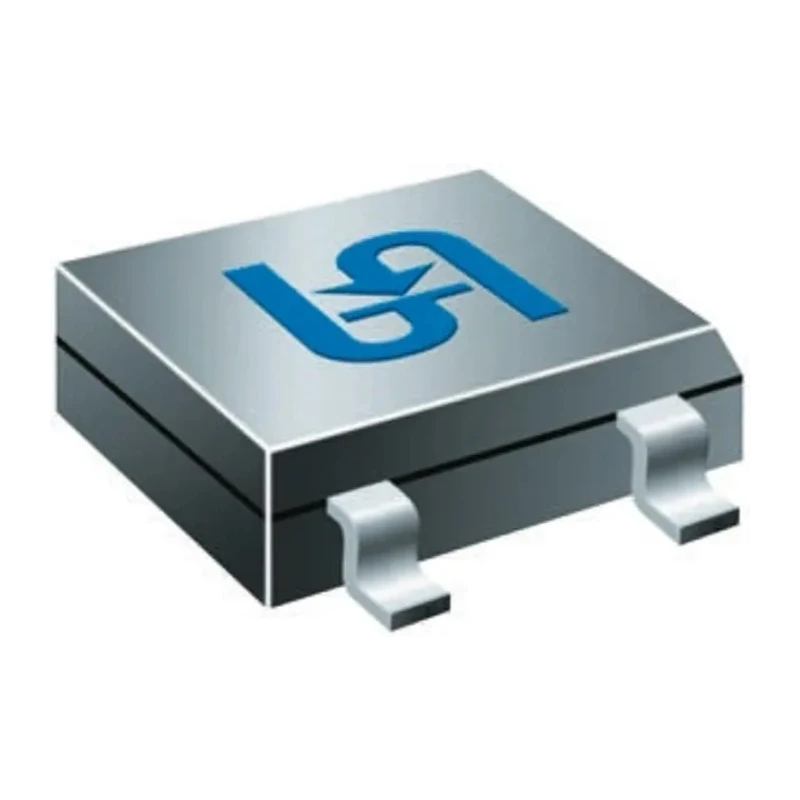

Taiwan Semiconductor Bridge Rectifier Surface Mount 400 V 40 A 4-Pin Single DBLS104G
Specifications
| Country of Origin | India |
|---|---|
| Brand | Taiwan Semiconductor |
| Height | 2.6mm |
| Length | 8.51mm |
| Model | DBLS104G |
| Width | 6.5mm |
| Mount Type | Surface |
| Series | DBLS104G |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | DBLS |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 1 |
| Pin Count | 4 |
| Automotive Standard | AEC-Q101 |
| Peak Reverse Repetitive Voltage Vrrm | 400V |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 40A |
| Forward Current If | 1A |
| Peak Forward Voltage Vf | 1.1V |
Key Features
- Certified automotive standard AEC-Q101 ensuring reliability in automotive environments.
- Package type DBLS with compact dimensions of 8.51 mm length, 6.5 mm width, and 2.6 mm height.
- Operates at a maximum temperature of 150°C and minimum of -55°C for broad environmental tolerance.
- Supports a peak reverse repetitive voltage of 400 V and forward current of 1 A for robust performance.
- Features low peak forward voltage of 1.1 V and minimal peak reverse current of 10 μA for efficiency.
- Comprises 4 pins in a single configuration suitable for discrete semiconductor bridge rectifier applications.
- Designed for surface mount technology with high surge current rating of 40 A for transient conditions.
Product Description
Taiwan Semiconductor DBLS104G Bridge Rectifier is a reliable discrete semiconductor designed for surface mount applications on printed circuit boards. This 4-pin single configuration device supports a peak reverse repetitive voltage of 400 V and a forward current rating of 1 A, making it suitable for AC to DC conversion in industrial, automotive, and electronic power management systems.
The device operates within a wide temperature range from -55°C minimum to 150°C maximum, ensuring durability under harsh operating conditions. Its compact DBLS package with dimensions 8.51 mm (length), 6.5 mm (width), and 2.6 mm (height) allows efficient space utilization on PCB assemblies. The rectifier has a low forward voltage drop of 1.1 V and a minimal peak reverse current of 10 μA, contributing to efficient power conversion and reduced heat dissipation.
This bridge rectifier meets automotive grade AEC-Q101 standards indicating suitability for use in automotive electronic circuits and power supplies. It is designed for high surge capacity, with a peak non-repetitive forward surge current of 40 A, providing robustness against transient surges. Ideal for industrial, automotive, consumer electronics, and power supply applications requiring efficient AC to DC conversion.
Certified AEC-Q101 automotive standard ensuring high reliability. Compact DBLS surface mount package for PCB integration. High temperature tolerance from -55°C to 150°C operating range. Supports 400 V peak reverse voltage and 1 A forward current ratings.
Low forward voltage of 1.1 V and minimal leakage current. High surge current capacity up to 40 A. 4-pin single bridge rectifier configuration for discrete semiconductor applications.
This Taiwan Semiconductor model DBLS104G bridge rectifier is a trusted component for converting AC current to DC with efficient performance and durability. Its automotive certification and robust ratings make it suitable for varied industrial and commercial electronic device designs. Browse more semiconductor and Bridge Rectifier components at EnvMart for your PCB and power management needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak reverse repetitive voltage rating is 400 V, making it suitable for various applications requiring robust voltage handling.
This model can operate at a maximum temperature of 150°C, ensuring functionality in high-temperature environments.
The forward current rating for this bridge rectifier is 1 A, which is typical for applications involving AC to DC conversion.
It features a 4-pin configuration, designed for discrete semiconductor applications.
The dimensions are 8.51 mm in length, 6.5 mm in width, and 2.6 mm in height, allowing for efficient PCB space utilization.
The peak forward voltage is 1.1 V, contributing to its efficiency in power conversion.
This bridge rectifier complies with the AEC-Q101 automotive standard, ensuring reliability in automotive applications.
The minimum operating temperature is -55°C, providing a wide operational range for diverse environments.
The peak non-repetitive forward surge current rating is 40 A, which helps it handle transient conditions effectively.
Yes, it is designed for surface mount technology, making it suitable for integration on printed circuit boards.
The peak reverse current is minimal at 10 μA, which enhances its efficiency and reduces heat dissipation during operation.
It is suitable for industrial, automotive, consumer electronics, and power supply applications requiring efficient AC to DC conversion.
