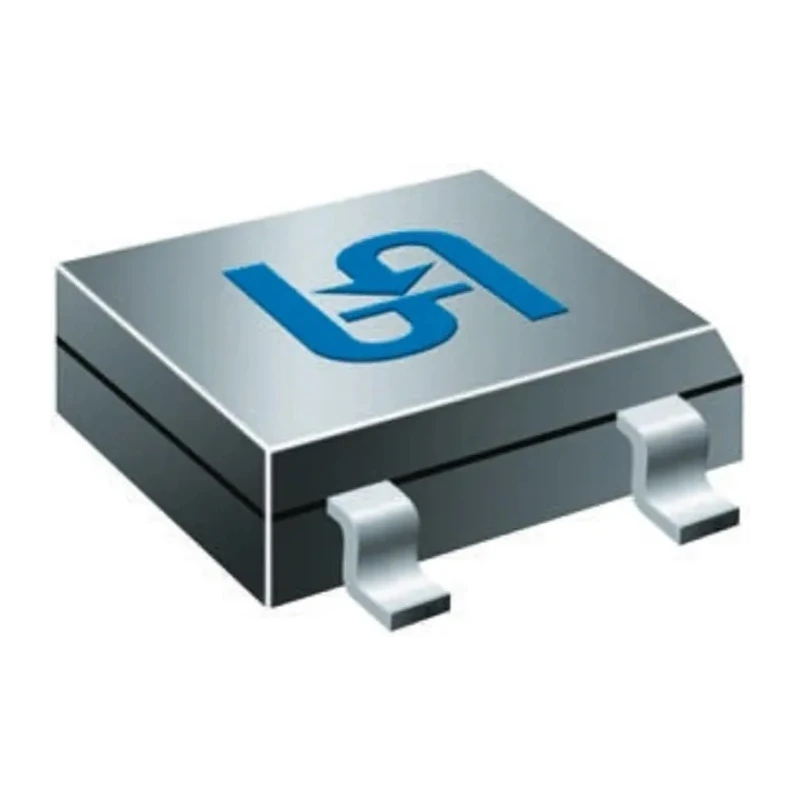

Taiwan Semiconductor Bridge Rectifier 1000 V 30 A 4-Pin Single DBLS107G RD
Specifications
| Country of Origin | India |
|---|---|
| Brand | Taiwan Semiconductor |
| Height | 2.6mm |
| Length | 8.51mm |
| Model | DBLS107G RD |
| Width | 6.5mm |
| Mount Type | Surface |
| Series | DBLS107G |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | DBLS |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 1 |
| Pin Count | 4 |
| Automotive Standard | AEC-Q101 |
| Peak Reverse Repetitive Voltage Vrrm | 1000V |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Forward Current If | 1A |
| Peak Forward Voltage Vf | 1.1V |
Key Features
- The device supports a peak reverse repetitive voltage of 1000 V.
- Maximum continuous forward current is 1 ampere ensuring stable performance.
- It features a peak non-repetitive forward surge current capability of 30 A.
- Compact dimensions with length 8.51 mm, width 6.5 mm, and height 2.6 mm suit PCB mounting.
- Operates reliably within a temperature range of -55°C to 150°C.
- Compliance with automotive standard AEC-Q101 ensures robustness in automotive environments.
- Forward voltage drop is low at 1.1 V optimizing power efficiency.
- Pin count of 4 simplifies PCB design integration.
Product Description
Taiwan Semiconductor DBLS107G RD Bridge Rectifier is a precision 4-pin single-configuration semiconductor device specifically designed for converting alternating current (AC) input into direct current (DC) output on printed circuit boards (PCBs). It is a surface mount device optimized for PCB reflow soldering processes, ensuring high production efficiency in electronics manufacturing.
This bridge rectifier boasts a peak reverse repetitive voltage rating of 1000 V, capable of withstanding high voltage spikes in electronic circuits, and supports a maximum continuous forward current of 1 A for reliable current handling. It also withstands a peak non-repetitive forward surge current of 30 A accommodating transient current surges.
Its compact footprint with dimensions of 8.51 mm length, 6.5 mm width, and 2.6 mm height facilitates dense PCB layouts. The device functions effectively in an operating temperature range from -55°C to 150°C, suitable for harsh and automotive-grade applications, affirmed by compliance with AEC-Q101 automotive standards.
The forward voltage drop is minimal at 1.1 V enhancing circuit efficiency by reducing power losses. The device’s low peak reverse current of 10 μA further assures minimal leakage losses during operation.
Peak reverse repetitive voltage 1000 V. Forward continuous current 1 A. Non-repetitive surge current 30 A. Operating temperature -55°C to 150°C. Surface mount package with 4 pins. Compact size: 8.51 mm x 6.5 mm x 2.6 mm (LxWxH).
Low forward voltage drop 1.1 V. Automotive standard AEC-Q101 compliant.
This Bridge Rectifier is ideal for industrial electronics, automotive electronics, power supplies, and general-purpose rectification in circuits requiring reliable AC to DC conversion.
Explore Taiwan Semiconductor products and similar high-quality semiconductor devices on EnvMart for your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The bridge rectifier has a peak reverse repetitive voltage rating of 1000 V, allowing it to withstand high voltage spikes in electronic circuits.
It supports a maximum continuous forward current of 1 A, ensuring reliable current handling in applications.
The device can withstand a peak non-repetitive forward surge current of 30 A, accommodating transient current surges effectively.
The dimensions of this bridge rectifier are 8.51 mm in length, 6.5 mm in width, and 2.6 mm in height, making it suitable for compact PCB layouts.
It operates reliably within a temperature range of -55°C to 150°C, suitable for harsh environments and automotive applications.
The forward voltage drop is low at 1.1 V, which helps optimize power efficiency by reducing power losses in the circuit.
This bridge rectifier features a pin count of 4, simplifying PCB design integration.
It complies with the AEC-Q101 automotive standard, ensuring robustness for automotive-grade applications.
It is a surface mount device, optimized for PCB reflow soldering processes, enhancing production efficiency.
The peak reverse current is 10 μA, which ensures minimal leakage losses during operation.
This bridge rectifier is ideal for industrial electronics, automotive electronics, power supplies, and general-purpose rectification in circuits requiring reliable AC to DC conversion.
The configuration type of this model is single, which is designed for converting AC input into DC output efficiently.
