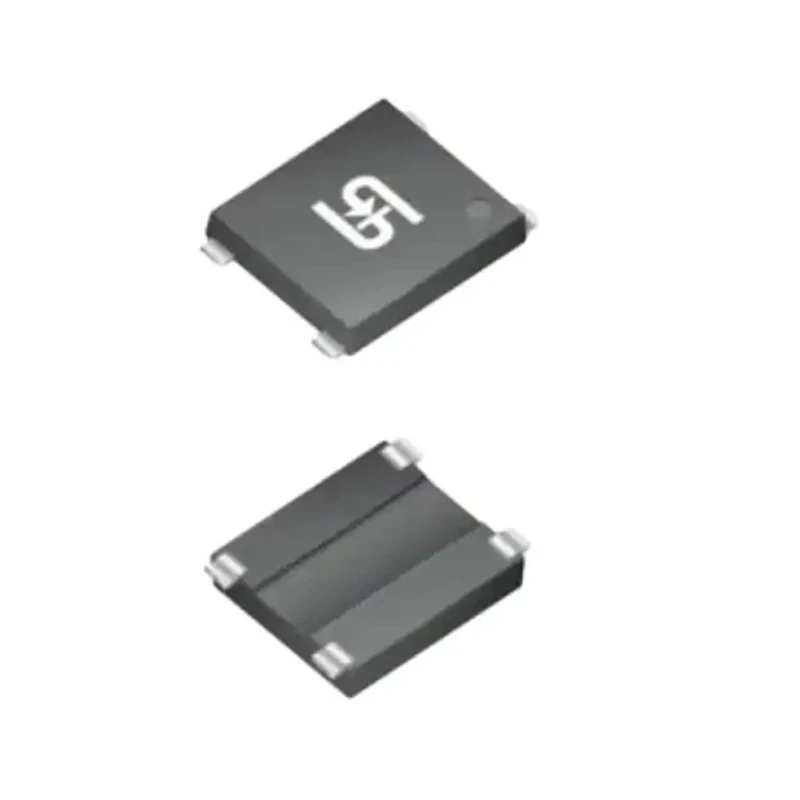

Taiwan Semiconductor Bridge Rectifier, Surface Mount, Quad Configuration, 1000 V, 90 A, YBS Package YBS2207G

Taiwan Semiconductor YBS2207G Bridge Rectifier is a surface mount semiconductor device designed for high current rectification in various industrial applications including switching mode power supplies (SMPS), adapters, and lighting systems. With a quad configuration and 4-pin design, it is optimized for automated placement on circuit boards.

This component supports a peak reverse repetitive voltage (Vrrm) of 1000 V and a peak non-repetitive forward surge current (Ifsm) of 90 A, highlighting its suitability for demanding power environments. The forward current (If) rating is 2.2 A with a peak forward voltage of 0.95 V ensuring efficient current conduction with minimal power loss.

The maximum operating temperature is 150°C, while it can operate down to -55°C, making it reliable across a wide range of thermal conditions. The device includes a glass passivated chip junction, offering robust protection and longevity. Moisture sensitivity is at level 1, conforming to J-STD-020 standards, which safeguards the component during storage and handling.

It is RoHS compliant and halogen-free as per IEC 61249-2-21 regulations, making it an environmentally responsible choice. The compact physical dimensions of 6.7 mm length and 8.6 mm height facilitate surface mounting, and its package type YBS allows for easy integration into various systems.

This rectifier does not conform to automotive standards but is suitable for a broad range of industrial and commercial electronic uses. Taiwan Semiconductor's YBS2207G provides cost-effective, reliable performance for power management and control equipment.

Supports 1000 V peak reverse voltage. 4-pin surface mount with YBS package. Quad configuration suitable for high power applications. Wide operating temperature range from -55°C to 150°C. High surge current capability with 90 A peak non-repetitive current.

Glass passivated chip for enhanced reliability. RoHS compliant and halogen-free construction. Compact with 6.7 mm length and 8.6 mm height. Moisture sensitivity level 1 compliant. Ideal for switching power supplies and lighting applications.
