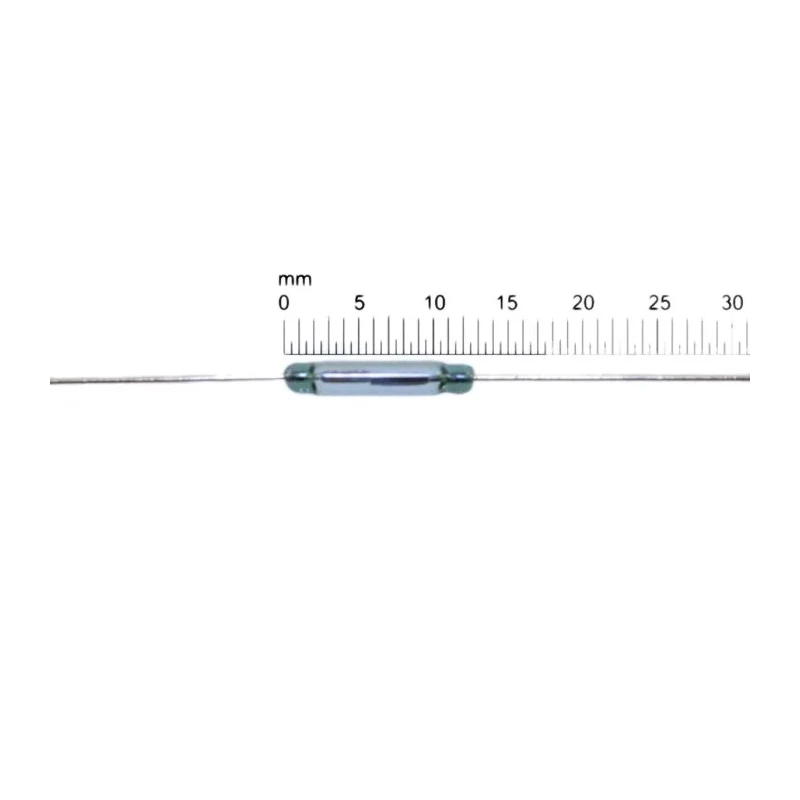

Assemtech Reed Switch SPST-NO 500mA 200V Wire Terminal PCB Mount RI-27AA

Free Delivery in India | Lowest Global Shipping Charges

Assemtech Reed Switch SPST-NO 500mA 200V Wire Terminal PCB Mount RI-27AA

Name: Assemtech Reed Switch SPST-NO 500mA 200V Wire Terminal PCB Mount RI-27AA
Brand: Assemtech
SKU: 272486
Price: 142.08 INR
Availability: InStock



Category Reed Switch Brand Assemtech Condition New

Specifications

Country of Origin	Netherlands
Brand	Assemtech
Length	13.5mm
Model	RI-27AA
Width	1.8mm
Mount Type	PCB
Contact Material	Ruthenium on Gold
Series	RI
Maximum Switching Current	500mA
Maximum Operating Temperature	125°C
Contact Configuration	SPST-NO
Minimum Operating Temperature	-55°C
Terminal type	Wire
Contact Resistance	115mΩ
Maximum Switching Power	10W
Standards/Approvals	ISO
Maximum Switching Voltage	200V
Maximum Release Time	30μs
Operating Time Including Bounce	0.25ms
AT Value Range	15 to 25 AT

Key Features

Constructed with ruthenium on gold contacts for reliable switching performance.
Features fast operating time including bounce of 0.25 milliseconds.
Compatible with PCB mounting using wire terminals for secure installation.
Operates over a wide temperature range from -55°C to 125°C for industrial applications.
Compact form factor with 13.5mm length and 1.8mm width suitable for dense PCB layouts.
Offers a maximum switching power of 10 watts ensuring suitability for low power circuits.
Hermetically sealed glass envelope ensures high mechanical life of up to 10^8 operations.
Conforms to ISO standards and is manufactured in the Netherlands.

Product Description

Assemtech RI-27AA is a precision Reed Switch featuring a Single Pole Single Throw Normally Open (SPST-NO) contact configuration designed for reliable switching in electrical and automation systems.

This switch is hermetically sealed inside a gas-filled glass envelope, ensuring durability and consistent performance in demanding industrial, laboratory, and commercial environments. It supports a maximum switching current of 500mA and maximum switching voltage of 200 volts, with a maximum switching power of 10 watts.

The contacts are plated with ruthenium on gold, minimizing contact resistance (115mΩ) and enhancing long-term stability. It operates effectively within a temperature range of -55°C to 125°C, making it suitable for harsh temperature conditions.

The switch is designed for PCB mounting and utilizes wire terminals, allowing straightforward integration into printed circuit boards. Its compact dimensions of 13.5mm length and 1.8mm width enable usage in space-constrained electronics assemblies.

The operating time including bounce is 0.25ms, and the maximum release time is 30μs, delivering rapid response for automation and control systems. The AT value range is between 15 to 25 AT, which defines sensitivity levels for magnetically actuated operation.

Mechanical life expectancy is rated at 100 million operations, underpinning its suitability for long-term applications in industrial automation, measurement devices, and switch assemblies.

Manufactured to ISO standards and made in the Netherlands, the RI series offers options in lengths and sensitivities to cater to diverse application needs. Hermetically sealed glass envelope ensures protection and durability.

Single pole single throw normally open (SPST-NO) configuration. Plated with ruthenium on gold for low contact resistance. Wide operating temperature range from -55°C to 125°C. Fast operating and release times suitable for precise switching.

Compact size facilitates PCB mounting in tight spaces. High mechanical life of 100 million operations. Compliant with ISO standards.

This Reed Switch is ideal for use in electrical, automation, instrumentation, HVAC, and electronic security systems where reliable magnetic switching is required. EnvMart offers the Assemtech RI-27AA Reed Switch for engineers and technicians seeking quality switching components.
