Assemtech CO PCB Reed Switch 1 A 230 V GC1625 (80-90AT)

Free Delivery in India | Lowest Global Shipping Charges

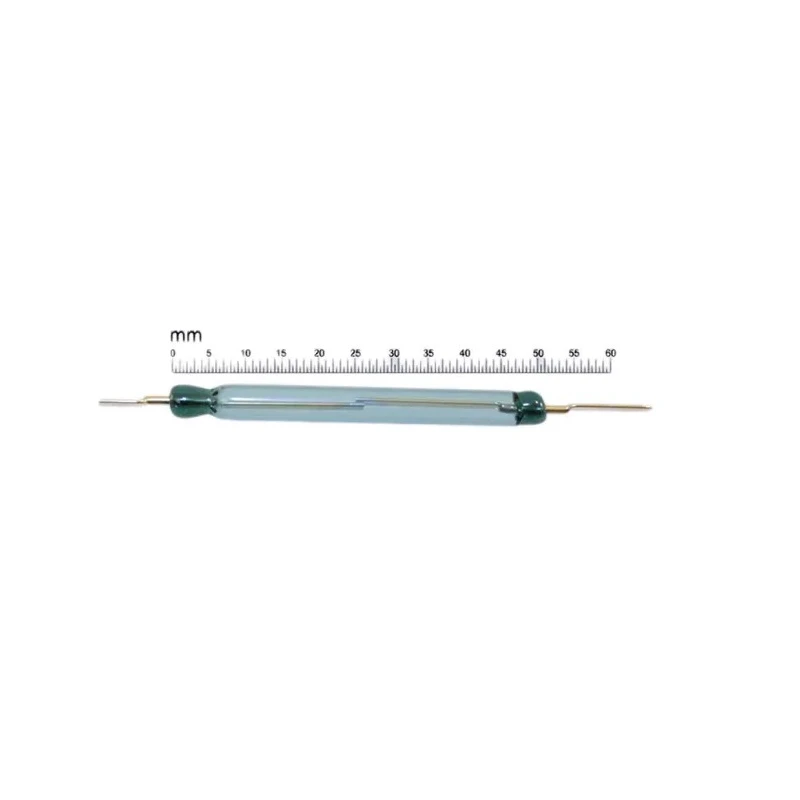

Assemtech CO PCB Reed Switch 1 A 230 V GC1625 (80-90AT)

Name: Assemtech CO PCB Reed Switch 1 A 230 V GC1625 (80-90AT)
Brand: Assemtech
SKU: 272496
Price: 1223.93 INR
Availability: InStock



Category Reed Switch Brand Assemtech Condition New

Specifications

Country of Origin	Belgium
Brand	Assemtech
Length	52mm
Model	GC1625 (80-90AT)
Width	5.6mm
Mount Type	PCB
Contact Material	Rhodium
Series	GC
Maximum Switching Current	1A
Maximum Operating Temperature	125°C
Contact Configuration	CO
Minimum Operating Temperature	-40°C
Terminal type	Wire
Contact Resistance	100mΩ
Standards/Approvals	ISO
Maximum Switching Voltage	230V
Maximum Release Time	0.1ms
Operating Time Including Bounce	0.5ms
AT Value Range	40 to 60 AT

Key Features

Hermetically sealed glass envelope ensures reliable operation.
Single pole, single throw normally open contact configuration.
Contact material plated with rhodium for durability and low resistance.
Maximum contact resistance of 100 milliohms guarantees efficient switching.
Operating temperature range from -40°C to 125°C supports harsh environments.
Mount type suitable for PCB installation with wire terminals.
Compact size with 5.6 mm width and 52 mm length for versatile applications.
Fast operation times including 0.5 ms operating time with bounce.

Product Description

Assemtech GC1625 (80-90AT) CO PCB Reed Switch is designed for precise switching operations with a maximum switching current of 1 A and maximum switching voltage of 230 V. The device features hermetically sealed form A and form C reed switches enclosed in a gas-filled glass envelope, ensuring longevity and reliability in demanding industrial applications. These switches operate with single pole, single throw normally open contacts.

The contacts are plated with rhodium, providing a low contact resistance of 100 milliohms and superior performance. The device supports operation within a wide temperature range from -40°C to 125°C and includes fast actuation times, with a typical maximum release time of 0.1 ms and operating time including bounce of 0.5 ms. This reed switch mounts easily on PCBs and uses wire terminals suitable for various circuit configurations.

Measuring 5.6 mm in width and 52 mm in length, this reed switch is compact, making it ideal for applications in industrial automation, home electronics, control systems, and other environments requiring reliable switching solutions. The AT value range of 40 to 60 AT enables sensitivity customization for different use cases. Manufactured to ISO standards in Belgium, the GC1625 (80-90AT) meets quality and safety expectations for demanding professional uses.

Hermetically sealed glass envelope ensures reliable operation. Single pole, single throw normally open contact configuration. Rhodium-plated contacts offer low resistance and durability. Contact resistance rated at 100 milliohms.

Wide operating temperature range from -40°C to 125°C. Fast switching with maximum release time of 0.1 ms. Compact size suitable for PCB mounting. Suitable for industrial automation and electronic control systems. Manufactured under ISO standards in Belgium.

This Assemtech CO PCB Reed Switch GC1625 (80-90AT) is ideal for applications in industrial, laboratory, automation, and electronic industries requiring dependable reed switch technology. Explore additional Assemtech products and related Reed Switches on EnvMart for comprehensive component solutions.
