Assemtech 10 ° Horizontal Tilt Switch 100 mA 60 V AC CW1600-3

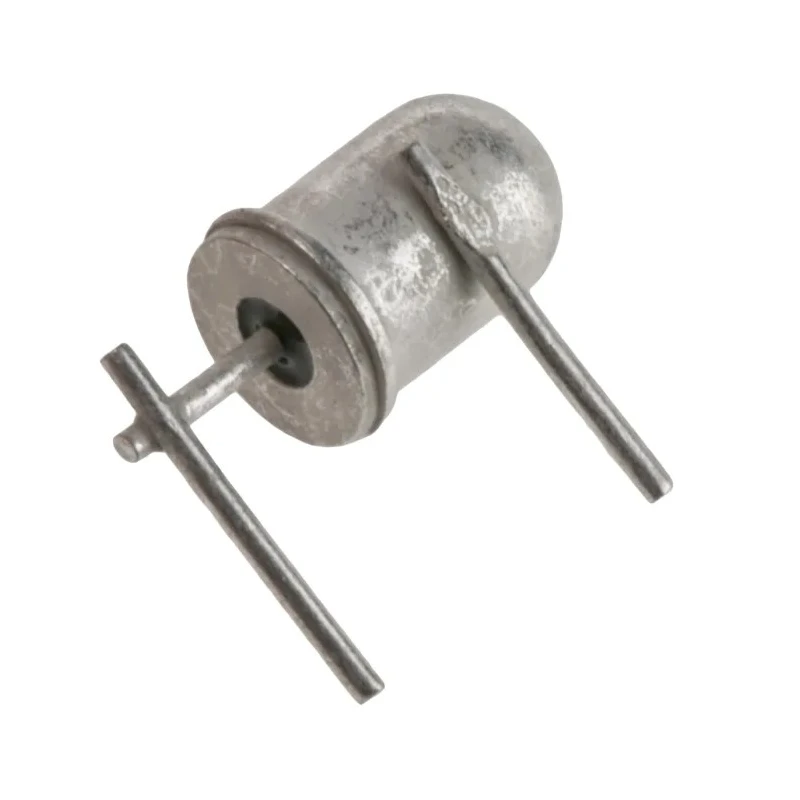

Assemtech CW1600-3 is a 10 ° Horizontal Tilt Switch engineered for precise tilt angle detection within automated control systems. It features a gas filled, hermetically sealed miniature metal housing, ideal for ON/OFF control applications where reliable switching action is critical.

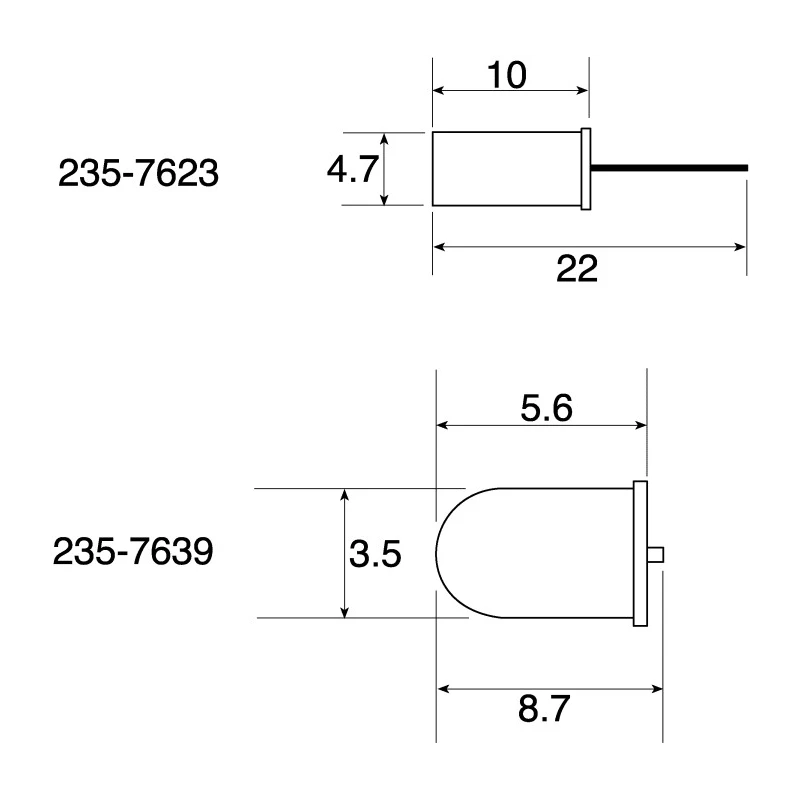

This tilt switch supports a maximum current rating of 100 mA and can handle up to 60 V AC or DC voltage. With a compact length of 8.71 mm, it suits space-constrained setups, while its robust construction ensures operation between -40°C to 125°C, maintaining performance in challenging industrial environments.

The differential angle of 10 ° defines the tilt motion needed to actuate the switch contacts, which have a contact resistance of 100 ohms. This makes the CW1600-3 suitable for sensitive position and limit sensing tasks in electrical, automation, and industrial control systems.

The product complies with ISO 9001 standards and belongs to the CW1 series. It is designed specifically for horizontal mounting orientation, where the switch contact may open or close based on the tilt position, providing reliable differential switching functionality.

Common applications include use in HVAC controls, machinery position detection, automation systems, and other scenarios requiring compact and precise tilt sensing components. As a highly specialized component made in the United States, the CW1600-3 provides dependable quality and consistent performance in demanding industrial settings.

The Tilt Switch is hermetically sealed and gas filled for reliability. It has a compact length of 8.71 mm suitable for miniature installations. Operates within a wide temperature range from -40°C to 125°C. The contact resistance is 100 ohms ensuring consistent performance.

Designed for horizontal mounting orientation to detect tilt angles. Compliant with ISO 9001 standards ensuring quality manufacturing. The switch is part of the CW1 series, optimized for miniature limit switch applications.

Originates from the United States, assuring high manufacturing standards. Explore more in our Electronics & Electricals category for quality switches and sockets at EnvMart.
