Assemtech 15 ° Horizontal Tilt Switch 250 mA 60 V AC S1039CW
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 12mm |
| Brand | Assemtech |
| Length | 47mm |
| Model | S1039CW |
| Depth | 12mm |
| Width | 11mm |
| Series | S10 |
| Maximum Operating Temperature | 70°C |
| Mounting Orientation | Horizontal |
| Minimum Operating Temperature | -20°C |
| Maximum Current | 250mA |
| Contact Resistance | 30mΩ |
| Maximum dc Voltage | 60V dc |
| Standards/Approvals | RoHS |
| Maximum AC Voltage | 60V ac |
| Differential Angle | 15 ° |
| Assemtech 15 ° Horizontal Tilt Switch 250 mA 60 V acBrand | Assemtech |
Key Features
- This tilt switch operates at a differential angle of 15 degrees for accurate position sensing.
- It has a maximum current rating of 250 mA and supports both 60 V AC and 60 V DC voltages.

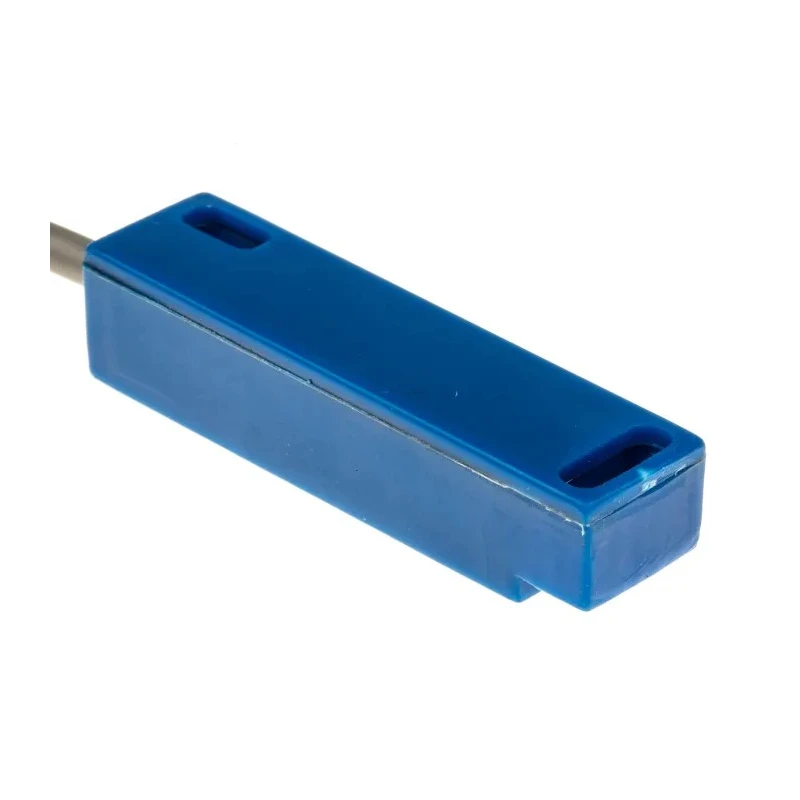

- The device is encapsulated in an ABS housing with a glass bodied switch, offering IP65 protection for surface mounting.

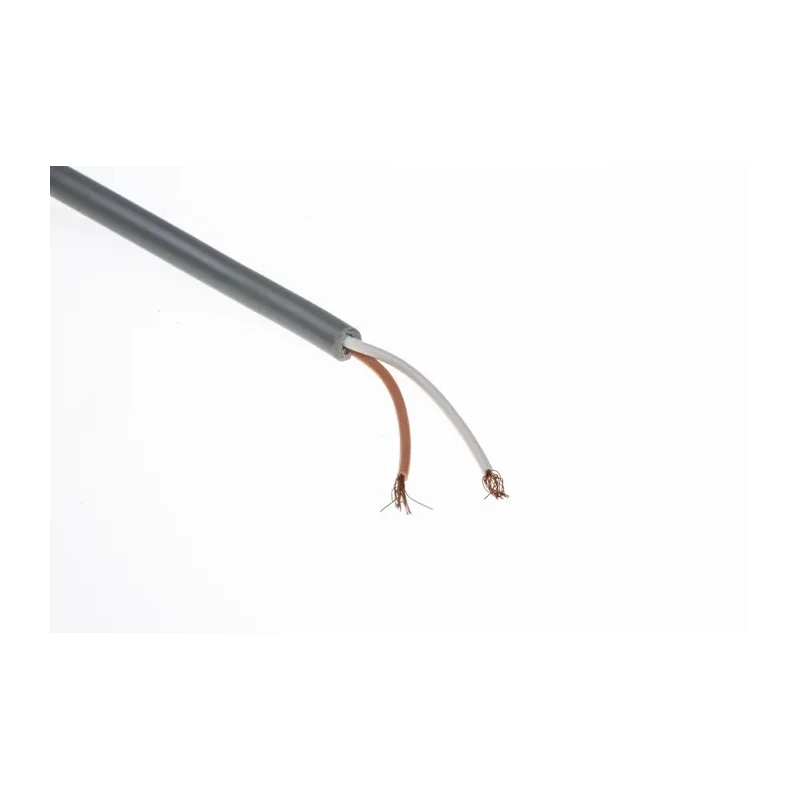

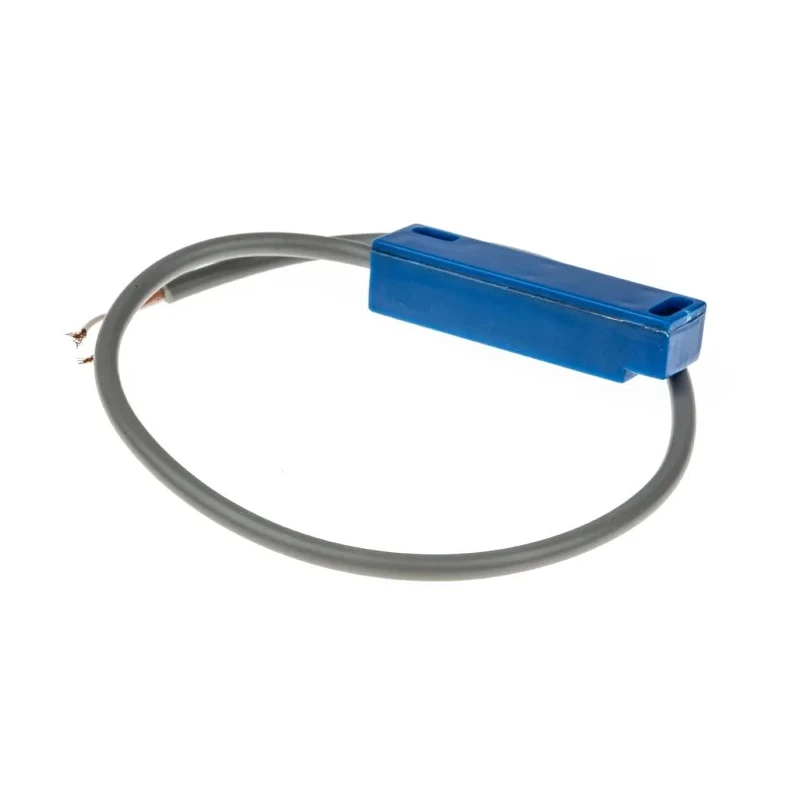

- It comes prewired with 300 mm of 2 core PVC cable, allowing easy integration into electrical systems.
- Operating temperature ranges from -20°C to 70°C making it suitable for varied industrial environments.

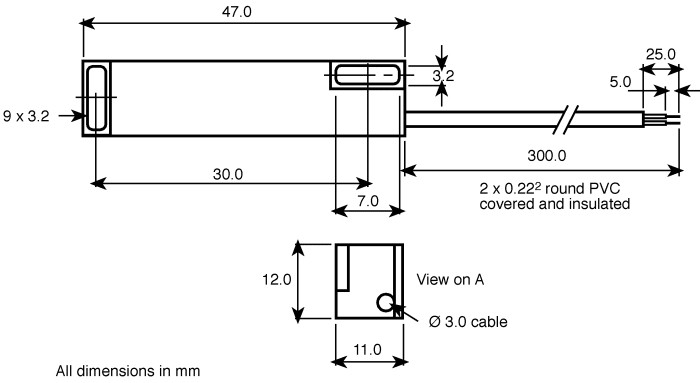

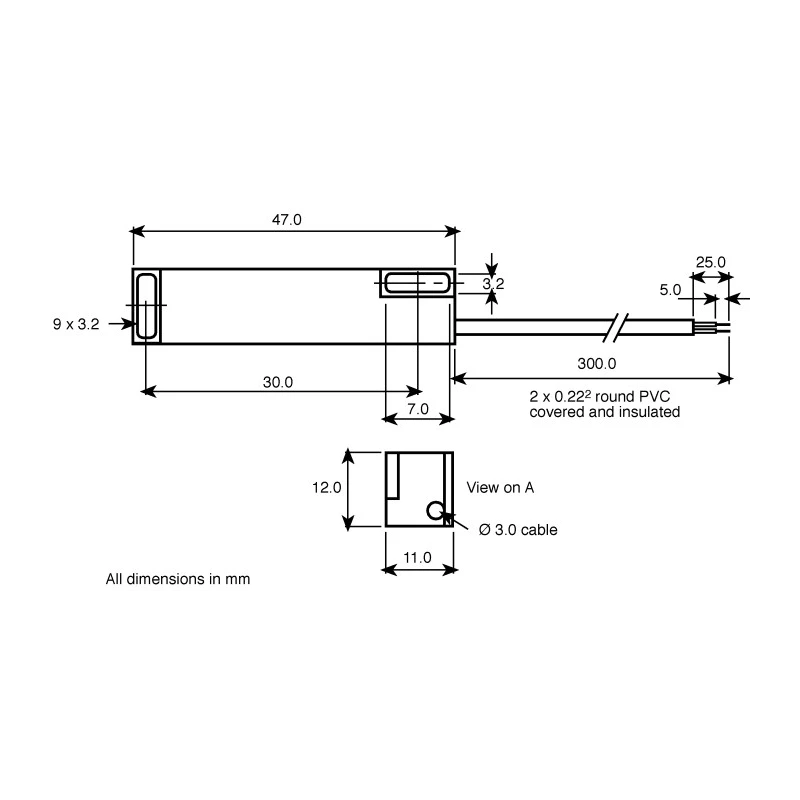

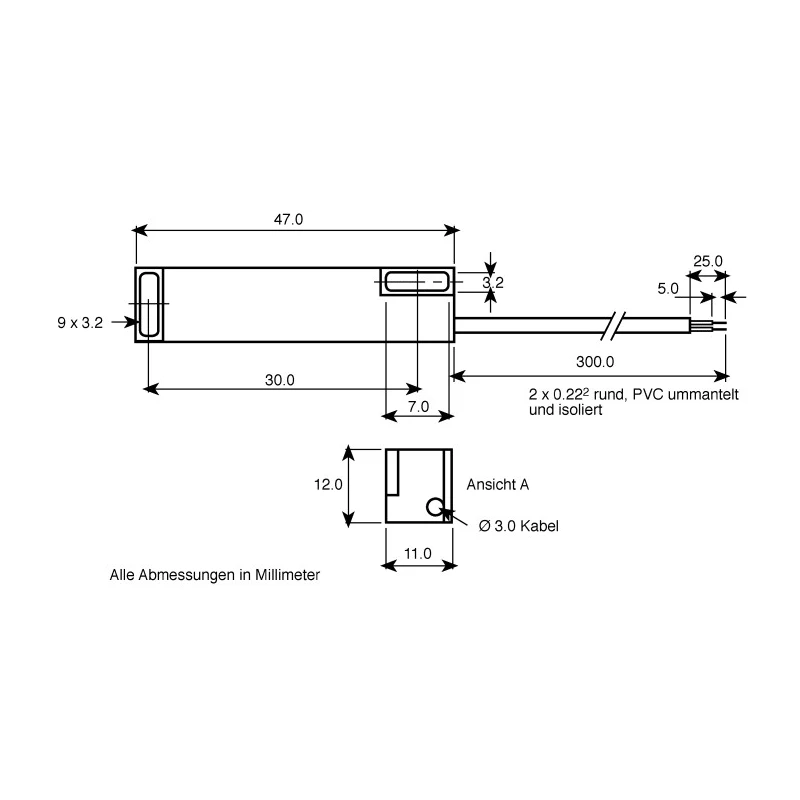

- Compact dimensions of 47 mm length, 11 mm width, 12 mm diameter, and 12 mm depth facilitate installation in constrained spaces.
- Contact resistance is low at 30 mΩ ensuring reliable electrical performance.
- RoHS compliant, the switch meets environmental standards for safety and sustainability.
Product Description
Assemtech S1039CW 15 ° Horizontal Tilt Switch is an encapsulated surface mounted sensor designed for reliable tilt detection in industrial and electrical automation applications. With a differential angle of 15 degrees, this switch offers precise position sensing for a wide range of devices requiring orientation control.
The switch is manufactured with a glass bodied contact enclosed in an ABS housing, providing robust mechanical protection and IP65 ingress resistance against dust and water. Its prewired 300 mm two-core PVC cable simplifies connection and installation within control panels or machinery.
Electrical ratings include a maximum current of 250 mA and a maximum operational voltage of 60 V AC or DC, suitable for low power limit and position switching tasks. Contact resistance is minimized to 30 mΩ to ensure effective electrical continuity.
Designed for durability, the switch operates reliably in temperatures from -20°C to 70°C, supporting use in diverse environments including industrial automation, HVAC controls, laboratory instrumentation, and manufacturing equipment.
This tilt switch is encapsulated in ABS housing with glass bodied switch. Prewired with 300 mm two-core PVC cable for surface mounting. Operates at a differential angle of 15 degrees for accurate tilt detection. Electrical ratings: 250 mA current, 60 V AC/DC voltage.
Low contact resistance of 30 mΩ for reliable performance. IP65 rated housing protects against dust and water ingress. Operating temperature range: -20°C to 70°C. Compact size for easy integration: length 47 mm, width 11 mm, diameter 12 mm, depth 12 mm.
RoHS compliant, meeting environmental safety standards.
This Tilt Switch is ideal for applications in industrial automation, limit and position sensing, HVAC systems, and other electrical control systems where tilt detection is critical. Its compact size and rugged design allow it to perform reliably in harsh industrial and commercial settings.
Explore more advanced switches and sensors in the Electronics & Electricals category on EnvMart for your industrial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this tilt switch is 250 mA.
This model supports both 60 V AC and 60 V DC voltages.
The differential angle for accurate position sensing is 15 degrees.
The dimensions are 47 mm in length, 11 mm in width, and 12 mm in both diameter and depth.
The operating temperature range is from -20°C to 70°C.
It is encapsulated in an ABS housing, providing robust mechanical protection.
The contact resistance is low at 30 mΩ, ensuring reliable electrical performance.
This tilt switch is designed for horizontal surface mounting.
It comes prewired with 300 mm of 2 core PVC cable for easy integration.
Yes, it is RoHS compliant, meeting environmental safety standards.
This model is suitable for industrial automation, HVAC controls, and limit and position sensing applications.
The tilt switch has an IP65 rating, protecting it against dust and water ingress.
