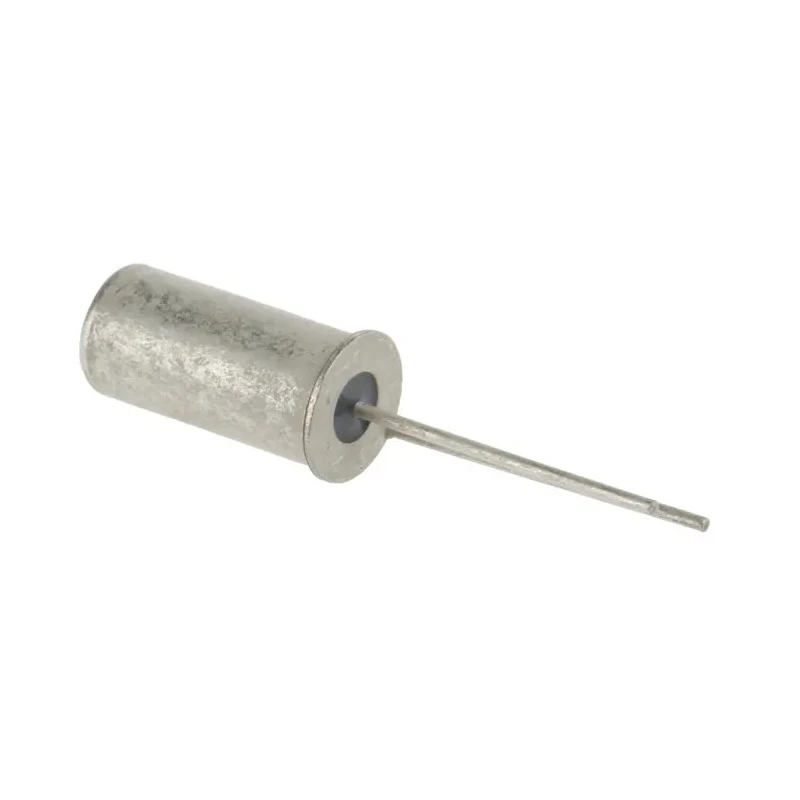

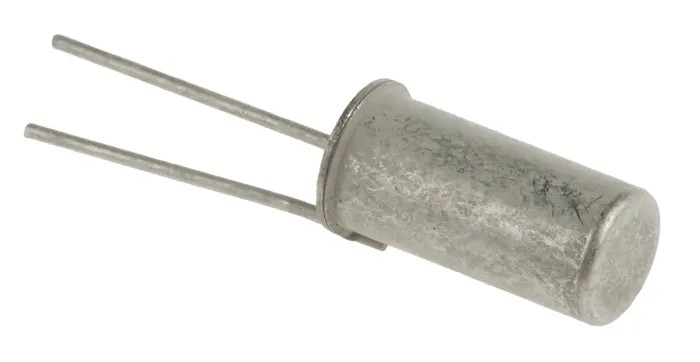

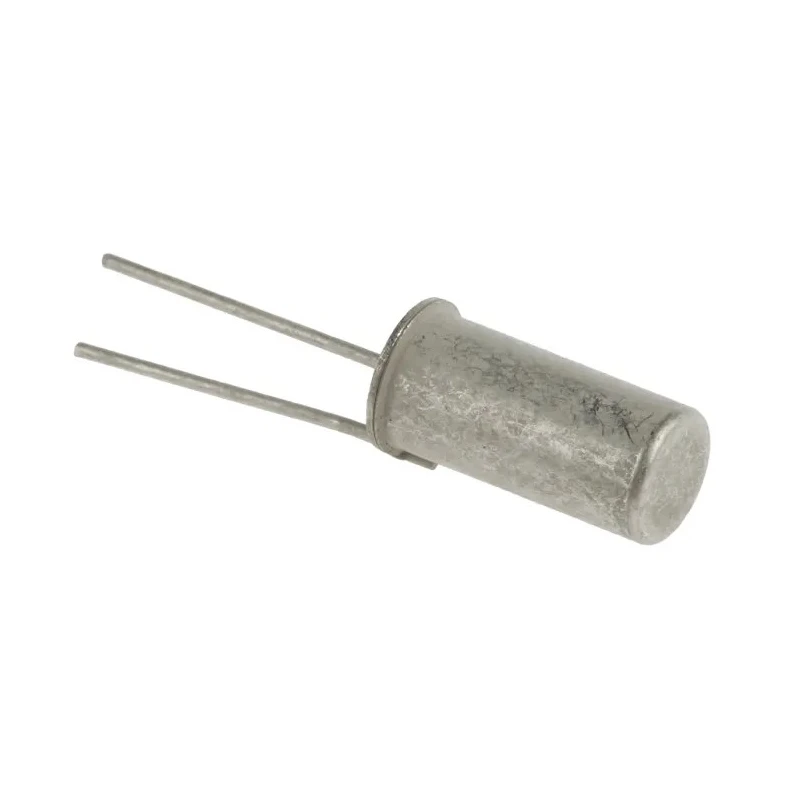

Assemtech 15 ° Horizontal Tilt Switch 250 mA 60 V AC CW1300-1
Specifications
| Country of Origin | United States |
|---|---|
| Diameter | 4.7mm |
| Brand | Assemtech |
| Length | 22.1mm |
| Model | CW1300-1 |
| Width | 4.7mm |
| Maximum Operating Temperature | 100°C |
| Mounting Orientation | Horizontal |
| Minimum Operating Temperature | -37°C |
| Maximum Current | 250mA |
| Contact Resistance | 30Ω |
| Maximum dc Voltage | 60V dc |
| Maximum AC Voltage | 60V ac |
| Differential Angle | 15 ° |
Key Features
- This tilt switch is gas filled and hermetically sealed in a miniature metal housing for enhanced durability.
- It features a differential angle of ±7.5 ° from the horizontal position triggering contact change.
- The switch supports maximum current capacity of 250 mA suitable for low-current switching applications.
- Designed for use at up to 60 V AC/DC voltage ratings providing flexible deployment options.
- Contact resistance is low at 30 Ω to maintain efficient electrical switching.
- Wide operating temperature range supports varied industrial and environmental conditions.
- Compact and lightweight design with precise dimensions for convenient equipment integration.
Product Description
Assemtech CW1300-1 Tilt Switch is a precision 15 ° differential angle position switch designed for horizontal mounting orientation. It supports a maximum current of 250 mA and a maximum AC voltage of 60 V, making it ideal for industrial ON/OFF control applications requiring reliable tilt and position detection.
The switch is gas filled and hermetically sealed within a miniature metal housing to ensure durability and performance consistency under demanding conditions. The ±7.5 ° differential angle from the horizontal position enables sensitive and accurate contact switching.
With contact resistance rated at 30 Ω, this tilt switch delivers dependable electrical connections with minimal loss. It can operate within a broad temperature range of -37°C to 100°C, supporting diverse operational environments including industrial, automation, electrical control, and instrumentation applications.

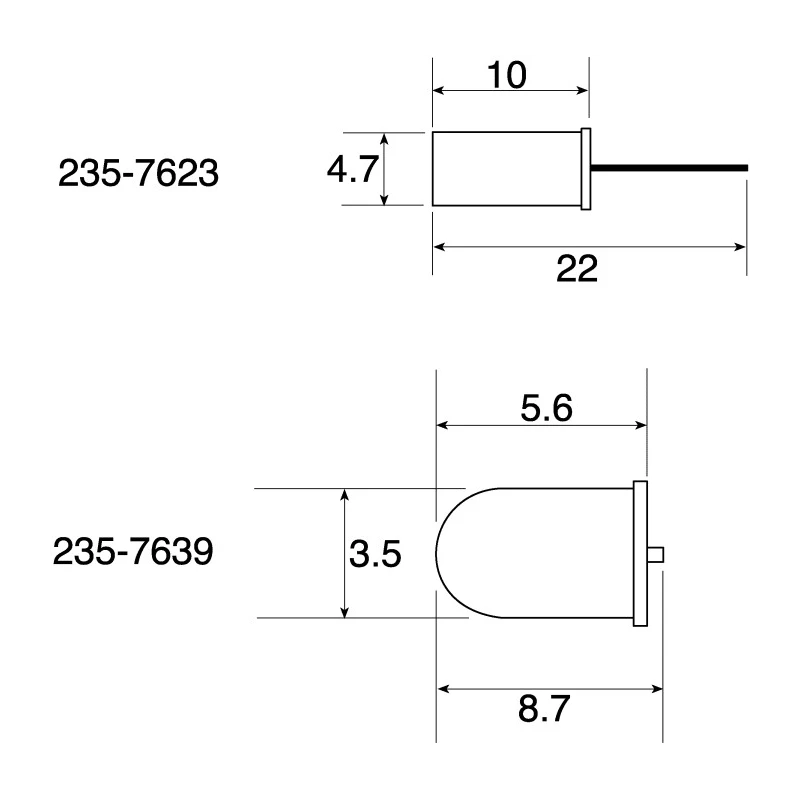

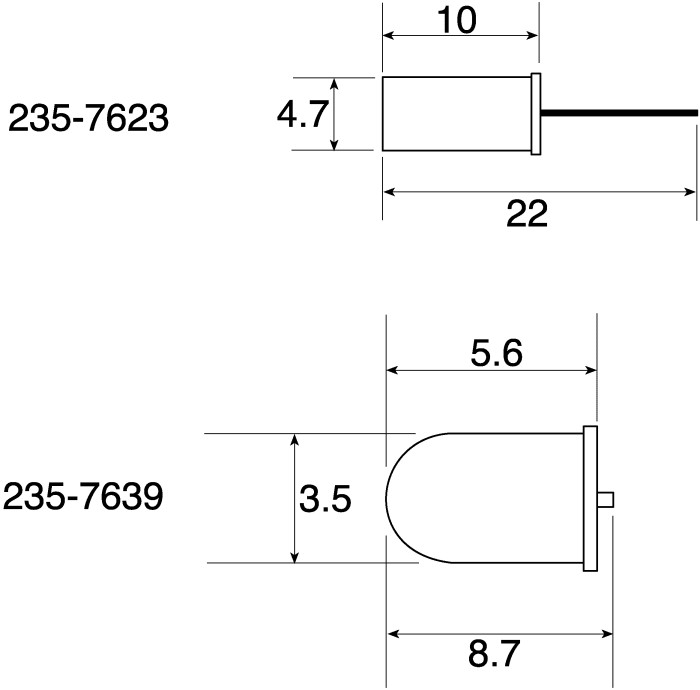

Its compact physical dimensions (22.1 mm length, 4.7 mm diameter and width) facilitate easy integration into tight spaces without compromising functionality. Made in the United States, the Assemtech CW1300-1 adheres to high manufacturing standards ensuring reliable use over its lifetime.
This tilt switch is gas filled and hermetically sealed in a miniature metal housing for enhanced durability. It features a differential angle of ±7.5 ° from the horizontal position triggering contact change. The switch supports maximum current capacity of 250 mA suitable for low-current switching applications.
Designed for use at up to 60 V AC/DC voltage ratings providing flexible deployment options. Contact resistance is low at 30 Ω to maintain efficient electrical switching. Wide operating temperature range supports varied industrial and environmental conditions.
Compact and lightweight design with precise dimensions for convenient equipment integration.
This tilt switch is suitable for diverse industrial uses including automation systems, electrical control panels, instrumentation devices, HVAC equipment, and safety monitoring systems. It helps accurately detect positional changes and tilts to trigger electrical switching.
Explore more Tilt Switches and related electrical components at EnvMart for all your industrial and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current capacity of this tilt switch is 250 mA, making it suitable for low-current switching applications.
This model is designed to operate at a maximum voltage of 60 V AC/DC, providing flexible deployment options.
The tilt switch features a differential angle of ±7.5 ° from the horizontal position, which triggers contact change.
The tilt switch has a length of 22.1 mm and a diameter of 4.7 mm, with a width also measuring 4.7 mm.
The contact resistance is rated at 30 Ω, ensuring efficient electrical switching with minimal loss.
This tilt switch operates within a wide temperature range of -37°C to 100°C, suitable for various industrial environments.
The Assemtech CW1300-1 is designed for horizontal mounting orientation.
It is suitable for diverse industrial uses including automation systems, electrical control panels, instrumentation devices, HVAC equipment, and safety monitoring systems.
This tilt switch is manufactured in the United States, adhering to high manufacturing standards.
The tilt switch is gas filled and hermetically sealed within a miniature metal housing for enhanced durability.
While specific outdoor suitability is not mentioned, it operates within a wide temperature range, suggesting it can handle varied environmental conditions.
The ±7.5 ° differential angle allows for sensitive and accurate contact switching, crucial for reliable position detection.
