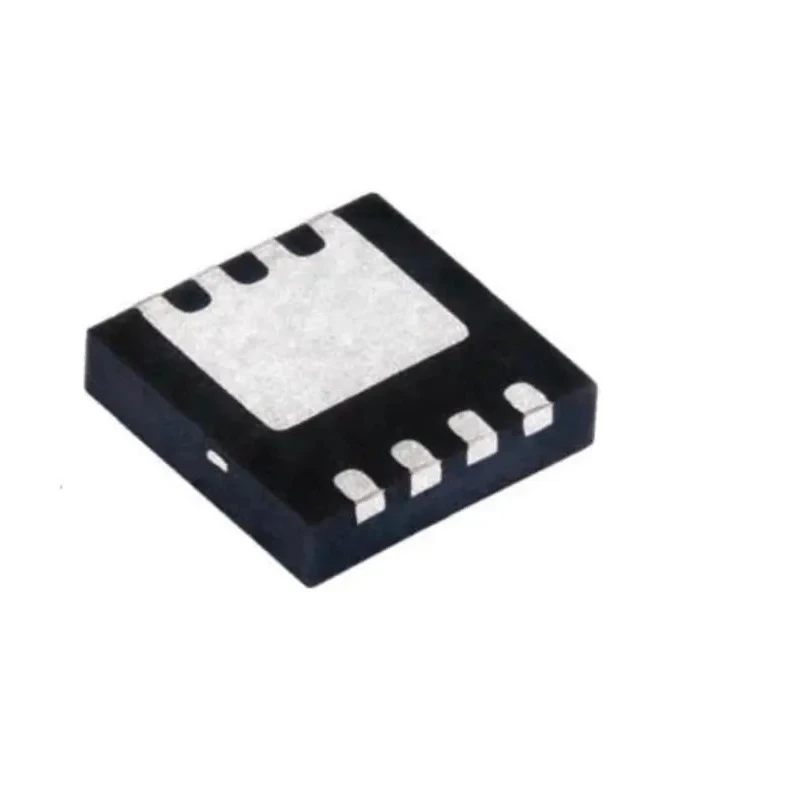

Vishay N-Channel Power MOSFET SiSHA10DN-T1-GE3 30 A, 30 V, Enhancement Mode, 8-Pin PowerPAK 1212 Package
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 930μm |
| Length | 3.3mm |
| Model | SISHA10DN-T1-GE3 |
| Width | 3.3mm |
| Mount Type | Surface |
| Series | SiSHA10DN |
| Maximum Operating Temperature | 150°C |
| Package Type | PowerPAK 1212 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 8 |
| Channel Type | N |
| Maximum Continuous Drain Current Id | 30A |
| Maximum Drain Source Voltage Vds | 30V |
| Maximum Drain Source Resistance Rds | 5mΩ |
| Channel Mode | Enhancement |
| Maximum Power Dissipation Pd | 39W |
| Typical Gate Charge Qg @ Vgs | 34nC |
| Maximum Gate Source Voltage Vgs | -16, +20V |
| Forward Voltage Vf | 1.2V |
Key Features
- Supports a maximum continuous drain current of 30 A.
- Operates at a maximum drain-source voltage of 30 V.
- Enhancement mode N-channel transistor design for efficient switching.
- Low maximum drain-source resistance of 5 milliohms ensures minimal conduction loss.
- Maximum power dissipation rating of 39 W supports high-performance operation.
- Thermally rated for operation up to 150°C for robustness in demanding environments.
- Typical gate charge is 34 nC at gate-source voltage, enabling fast switching performance.
- Forward voltage of 1.2 V supports rapid switching without excessive losses.
Product Description
Vishay SiSHA10DN-T1-GE3 is a high-performance N-Channel Power MOSFET designed for industrial and electronic applications requiring efficient power switching. The device supports a continuous drain current of 30 A and a drain-source voltage rating of 30 V. Packaged in an 8-pin PowerPAK 1212 surface mount package, it provides compact, reliable mounting with excellent thermal performance.
This enhancement mode device features a low maximum drain-source resistance of 5 milliohms, minimizing conduction losses and improving overall circuit efficiency. With maximum power dissipation up to 39 W and a maximum operating temperature of 150°C, the SiSHA10DN-T1-GE3 is well suited for demanding commercial, industrial, and automotive environments.
The MOSFET offers a typical gate charge of 34 nC at gate-source voltage, which ensures rapid switching capabilities vital for high-frequency applications. With a forward voltage of 1.2 V, it maintains low loss switching behavior.
Additional specifications include a wide operating temperature range from -55°C to 150°C, making the device robust across diverse environmental conditions. The package dimensions are 3.3 mm in length and width with a height of 930 micrometers. The device is RoHS compliant and designed with TrenchFET® Gen IV technology for enhanced reliability.
Supports maximum continuous drain current of 30 A and drain-source voltage of 30 V. Enhancement mode N-channel MOSFET optimized for low Rds(on) of 5 mΩ. High maximum power dissipation at 39 W with operation up to 150°C. Compact 8-pin PowerPAK 1212 surface mount package dimensions: 3.3 mm × 3.3 mm × 0.93 mm.
Operates reliably between -55°C to 150°C for industrial and automotive uses. Typical gate charge of 34 nC and gate-source voltage tolerance of -16 V to +20 V. Forward voltage is 1.2 V for efficient switching. This Vishay Power MOSFET is ideal for power management in electronics, automotive systems, industrial control circuits, and electronic driving applications.
Discover more electronics components and semiconductor devices in the Power MOSFET category on EnvMart for your industrial and commercial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous drain current for this model is 30 A.
It operates at a maximum drain-source voltage of 30 V.
This MOSFET is packaged in an 8-pin PowerPAK 1212 surface mount package with dimensions of 3.3 mm x 3.3 mm x 0.93 mm.
The maximum power dissipation rating for this model is 39 W.
It can operate at a maximum temperature of 150°C.
The typical gate charge is 34 nC at gate-source voltage.
The forward voltage is 1.2 V, which supports efficient switching.
This MOSFET operates reliably between -55°C and 150°C.
The maximum drain-source resistance is 5 milliohms, ensuring minimal conduction loss.
It uses an enhancement mode N-channel design optimized for efficient switching.
The maximum gate-source voltage tolerance is -16 V to +20 V.
The country of origin for this model is India.
