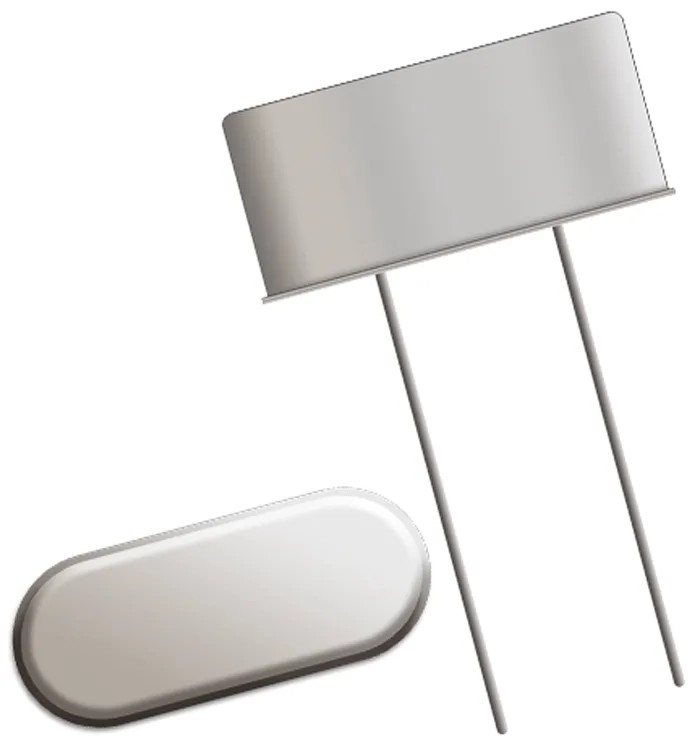

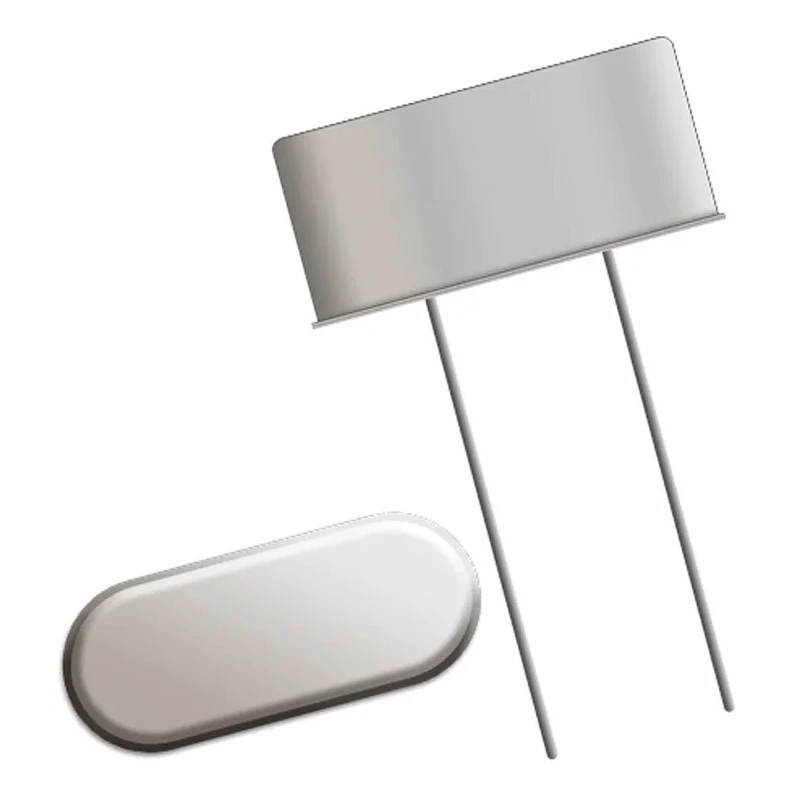

QANTEK 14.7456 MHz Crystal ±20 ppm HC-49 2-Pin 3.5 mm Height 11.05 mm Length 4.65 mm Width QCL14.7456F18B23B

QANTEK QCL14.7456F18B23B is a 14.7456 MHz crystal oscillator designed with a through-hole mount in a compact HC-49 package. It features 2 pins with physical dimensions of 3.5 mm height, 11.05 mm length, and 4.65 mm width. This crystal provides a frequency tolerance of ±20 ppm and frequency stability of ±30 ppm, ensuring highly accurate oscillation essential for electronic circuits.

Its load capacitance of 18 pF and series resistance of 50 Ω support stable signal generation. The product operates reliably across a broad temperature range from -40°C to 85°C, suitable for industrial, communication, and consumer electronics applications. It complies with RoHS environmental regulations, highlighting its compliance and sustainability.

Packaged in bulk for efficient manufacturing handling, this crystal is ideal for designers and engineers requiring precise timing components. The durable HC-49 package ensures mechanical stability and long operational life.

Standard frequency of 14.7456 MHz ensures precise oscillation for electronic applications. Through hole mount type for reliable PCB placement and connection. Load capacitance of 18 pF for stable frequency operation. Robust HC-49 package type with 2-pin configuration to fit various circuit designs.

Frequency tolerance of ±20 ppm with ±30 ppm stability providing accurate frequency control. Operating temperature range from -40°C to 85°C suitable for demanding environments. Series resistance of 50 Ω for optimal electrical performance.

Manufactured according to RoHS standards ensuring environmental compliance. Bulk packaging aids efficient use in production processes. Country of origin: China, guaranteeing manufacturing standards.

This QANTEK crystal unit is commonly used in electronic testing, communications equipment, oscillator circuits, and industrial controllers. It supports precise timing requirements in laboratory, industrial, and commercial electronics assemblies. Explore more Crystal Units and oscillators with high reliability and exacting frequency specifications at EnvMart.
