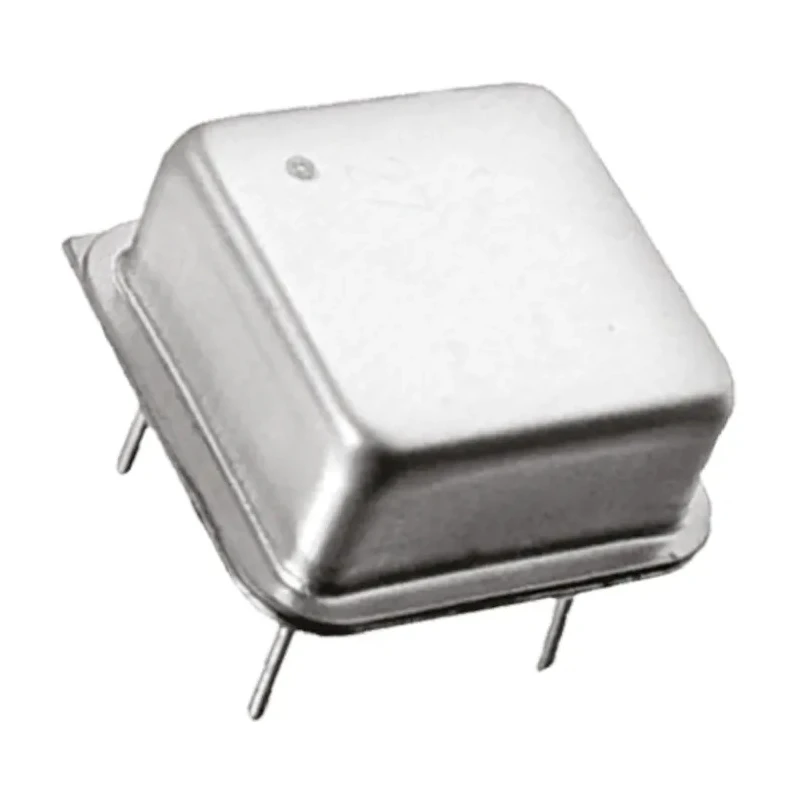

QANTEK 1.8432MHz XO Oscillator ±50 ppm HCMOS 8-Pin PDIP QX8T50B1.843200B50TT
Specifications
| Country of Origin | China |
|---|---|
| Brand | QANTEK |
| Height | 5.08mm |
| Length | 13.21mm |
| Model | QX8T50B1.843200B50TT |
| Packaging | Tube |
| Width | 13.21mm |
| Mount Type | Through Hole |
| Series | QX8 |
| Maximum Operating Temperature | 85°C |
| Output Frequency | 1.8432MHz |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Maximum Supply Voltage | 5V |
| Load Capacitance | 50pF |
| Oscillator Type | XO |
| Output Level | HCMOS |
Key Features
- Output frequency is 1.8432MHz with HCMOS signal level.
- Standard 8-pin Dual-In-Line Package (PDIP) for easy through-hole mounting.
- Operates within temperature range of -40°C to 85°C for versatile applications.
- Maximum supply voltage is 5V compatible with common electronic circuits.
- Hermetically sealed package minimizes aging and enhances reliability.
- Includes tristate function allowing enable and disable control.
- Load capacitance is 50pF suitable for stable oscillation operation.
- Compact dimensions 13.21mm × 13.21mm × 5.08mm for space-constrained designs.
Product Description
QANTEK QX8T50B1.843200B50TT is a 1.8432MHz crystal oscillator featuring a XO (Quartz Crystal) type with ±50 ppm frequency stability, providing precision timing and clock signals.
This device outputs a HCMOS level signal from an 8-pin PDIP package, compatible with standard through-hole PCB mounting techniques. The oscillator operates reliably within an industrial temperature range of -40°C to 85°C, suitable for various electronic applications.
The hermetically sealed package enhances stability by reducing aging effects and protecting internal components. A tristate output function enables enabling and disabling the oscillator output as required by system design.
It features a load capacitance of 50pF ensuring stable oscillation. The oscillator runs at a maximum recommended supply voltage of 5V, making it compatible with conventional logic circuits.
Compact physical dimensions of 13.21mm length and width with a height of 5.08mm offer space-saving benefits for integration into electronic equipment. Frequency stability of ±50 ppm ensures accurate timing performance. Output frequency is 1.8432MHz with HCMOS signal level.
Standard 8-pin Dual-In-Line Package (PDIP) for easy through-hole mounting. Operates within temperature range of -40°C to 85°C for versatile applications. Maximum supply voltage is 5V compatible with common electronic circuits.
Hermetically sealed package minimizes aging and enhances reliability. Includes tristate function allowing enable and disable control. Load capacitance is 50pF suitable for stable oscillation operation. Compact dimensions 13.21mm × 13.21mm × 5.08mm for space-constrained designs.
This oscillator is ideal for applications including industrial automation, telecommunications, instrumentation, and embedded systems requiring precise clock signals. It complies with RoHS standards and is manufactured in China.
Explore more from QANTEK and related Crystal Oscillator products on EnvMart for specialized electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output frequency of this oscillator is 1.8432MHz.
It operates within a temperature range of -40°C to 85°C.
The maximum supply voltage is 5V, making it compatible with common electronic circuits.
It provides an HCMOS level signal output.
The dimensions are 13.21mm in length and width, and 5.08mm in height.
The load capacitance is 50pF, which is suitable for stable oscillation operation.
It comes in a standard 8-pin Dual-In-Line Package (PDIP) for easy through-hole mounting.
Yes, it includes a tristate function that allows for enabling and disabling the oscillator output.
This oscillator complies with RoHS standards.
The model number is QX8T50B1.843200B50TT.
The country of origin for this product is China.
It is suitable for applications including industrial automation, telecommunications, instrumentation, and embedded systems requiring precise clock signals.
