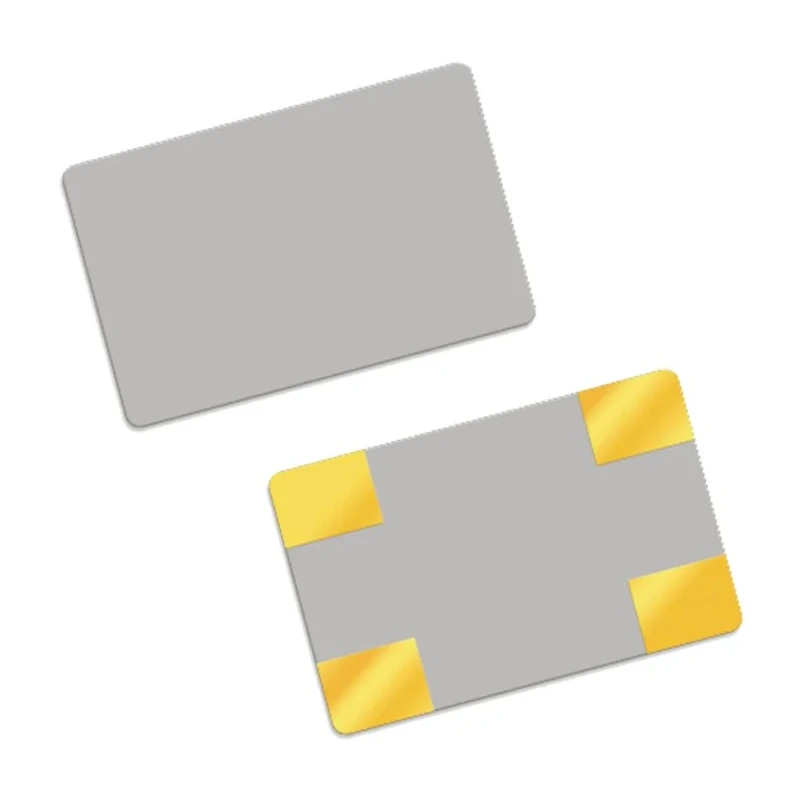

QANTEK 10 MHz Crystal ±20 ppm Surface Mount 4-Pin 5 x 3.2 x 1.1 mm QC5CA10.0000F12B23R

QANTEK QC5CA10.0000F12B23R is a high-quality 10 MHz crystal unit engineered for surface mount applications requiring excellent frequency stability and compact form factor. It features a 4-pin ceramic package measuring 5 mm by 3.2 mm by 1.1 mm, suitable for precise electronic circuitry.

Operating with a frequency tolerance of ±20 ppm and frequency stability of ±30 ppm, this crystal ensures accurate timing signals critical in communication, computing, and instrumentation industries. The load capacitance of 12 pF is optimized for stable oscillation.

The crystal withstands a broad operating temperature range from -40°C to +85°C, ensuring dependable operation in harsh industrial environments. Its series resistance of 100 Ω allows for low signal loss and improved resonance quality.

Compliant with RoHS environmental directives, the QC5CA series supports sustainable manufacturing practices. The product is supplied in tape and reel packaging, facilitating efficient automated soldering processes used in modern electronics production.

This surface mount crystal unit is ideal for use in electronic components, power & connectors, passive components, and as timing elements in oscillators and resonators for various demanding applications in industrial, laboratory, aerospace, and telecommunications sectors.

Standard frequency at 10 MHz with precise ±20 ppm tolerance. Compact surface mount 4-pin ceramic package dimensions 5 x 3.2 x 1.1 mm. Load capacitance rated at 12 pF for optimal oscillation. Operating temperature range from -40°C to +85°C for robust performance.

Series resistance of 100 Ω enhancing signal integrity. RoHS certified ensuring environmental compliance. Tape and reel packaging supporting automated assembly. Explore more precision Crystal Units and related electronic components with EnvMart, your trusted source for industrial and electronic solutions.
