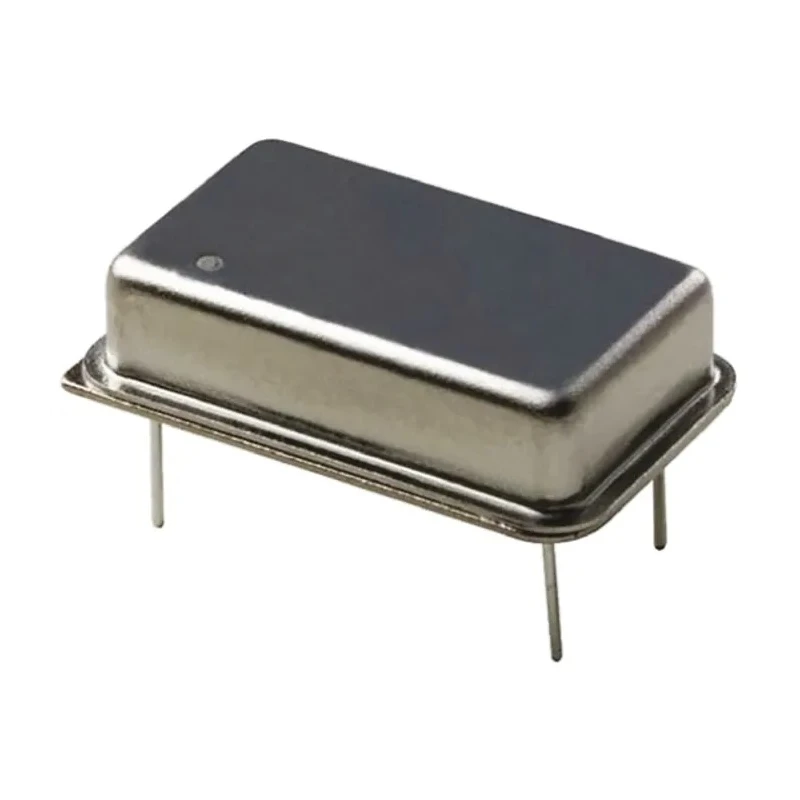

QANTEK 10MHz XO Oscillator, ±50 ppm Frequency Stability, HCMOS Output, 14-Pin DIP-14 QX14T50B10.00000B50TT
Specifications
| Country of Origin | China |
|---|---|
| Brand | QANTEK |
| Height | 5.08mm |
| Length | 20.8mm |
| Model | QX14T50B10.00000B50TT |
| Packaging | Tube |
| Width | 13.2mm |
| Mount Type | Through Hole |
| Series | QX14 |
| Maximum Operating Temperature | 85°C |
| Output Frequency | 10MHz |
| Package Type | DIP-14 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Maximum Supply Voltage | 5V |
| Load Capacitance | 50pF |
| Oscillator Type | XO |
| Output Level | HCMOS |
Key Features
- Industry-standard 14-pin Dual-in-Line package ensures broad compatibility.
- Oscillator frequency output at 10MHz suitable for various electronic applications.
- ±50 ppm frequency stability supports reliable performance in timing circuits.
- Operates within a temperature range of -40°C to 85°C for robust usage.
- Output level is HCMOS compatible, ideal for high-speed digital circuits.
- Maximum supply voltage of 5V with through-hole mount type for easy PCB integration.
- Hermetically sealed package enhances reliability and minimizes aging effects.
- Tristate function available for enable/disable control of the oscillator output.
Product Description
QANTEK QX14T50B10.00000B50TT 10MHz XO Oscillator is an industry-standard, high-precision crystal oscillator with a frequency stability of ±50 ppm. Featuring a 14-pin dual-in-line (DIP-14) package, it offers compatibility with many electronic circuit designs, especially in clock generation and timing applications.
This oscillator delivers a stable 10MHz output frequency with a HCMOS compatible output level, ensuring fast and reliable signal transmission for digital electronics. Its operating temperature range from -40°C to 85°C makes it suitable for industrial and commercial environments, maintaining performance under varying conditions.
The hermetically sealed package protects the oscillator from environmental contaminants and aging, thus extending reliability and lifespan.
The through-hole mount type allows straightforward PCB assembly, and the component includes a tristate function for output enable or disable control, adding versatility for system designers.
Typical dimensions are 20.8 mm (length), 13.2 mm (width), and 5.08 mm (height), fitting standard DIP sockets and boards. This product complies with RoHS standards, ensuring adherence to environmental regulations regarding hazardous substances.
Industry-standard 14-pin Dual-in-Line package ensures broad compatibility. Oscillator frequency output at 10MHz suitable for various electronic applications. ±50 ppm frequency stability supports reliable performance in timing circuits.
Operates within a temperature range of -40°C to 85°C for robust usage. Output level is HCMOS compatible, ideal for high-speed digital circuits. Maximum supply voltage of 5V with through-hole mount type for easy PCB integration.
Hermetically sealed package enhances reliability and minimizes aging effects. Tristate function available for enable/disable control of the oscillator output. Compact dimensions: 20.8mm length, 13.2mm width, and 5.08mm height.
Compliant with RoHS standards, ensuring environmental friendliness. Ideal for use in industrial, laboratory, and manufacturing electronic equipment where precise timing and frequency generation are critical. Explore more electronic components like crystal Oscillators and connectors in the Electronics & Electricals category on EnvMart for enhanced system design solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output frequency of this oscillator is 10MHz, suitable for various electronic applications.
It has a frequency stability of ±50 ppm, which supports reliable performance in timing circuits.
The oscillator operates within a temperature range of -40°C to 85°C, making it suitable for industrial and commercial environments.
It provides an HCMOS compatible output level, ideal for high-speed digital circuits.
The maximum supply voltage for this oscillator is 5V.
The typical dimensions are 20.8 mm in length, 13.2 mm in width, and 5.08 mm in height.
This oscillator features a through-hole mount type for easy PCB integration.
Yes, it includes a tristate function for enable/disable control of the oscillator output.
It is packaged in a tube, which is standard for many electronic components.
The load capacitance for this model is 50pF.
Yes, it complies with RoHS standards, ensuring adherence to environmental regulations regarding hazardous substances.
The country of origin for this oscillator is China.
