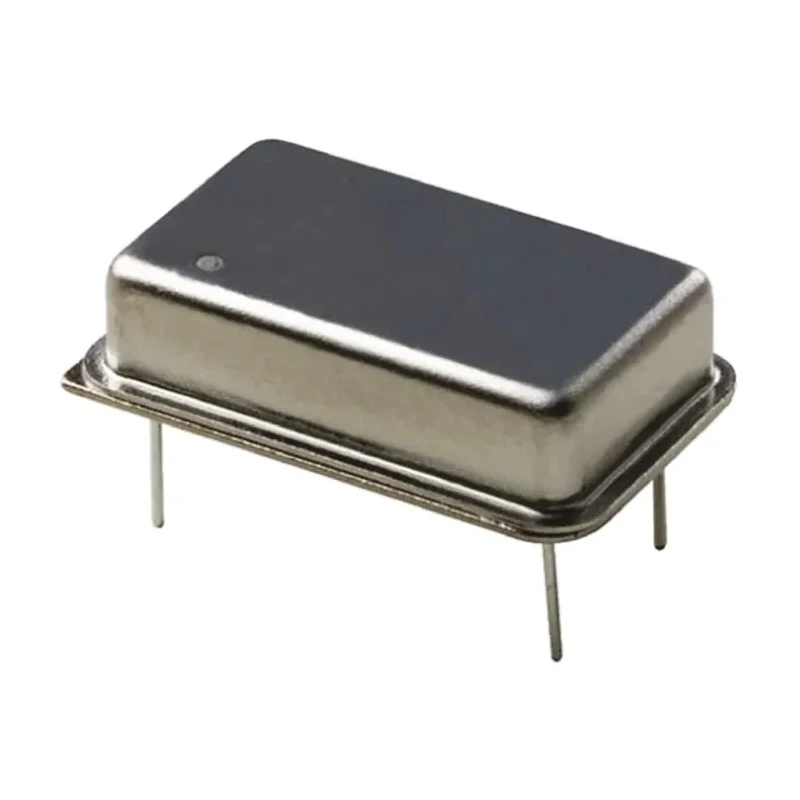

QANTEK 1.8432MHz XO Oscillator ±50 ppm HCMOS 14-Pin DIP-14 QX14T50B1.843200B50TT

Free Delivery in India | Lowest Global Shipping Charges

QANTEK 1.8432MHz XO Oscillator ±50 ppm HCMOS 14-Pin DIP-14 QX14T50B1.843200B50TT

Name: QANTEK 1.8432MHz XO Oscillator ±50 ppm HCMOS 14-Pin DIP-14 QX14T50B1.843200B50TT
Brand: Qantek
SKU: 132040
Price: 3.45 USD
Availability: InStock



Category Crystal Oscillator Brand Qantek Condition New

Specifications

Country of Origin	China
Brand	QANTEK
Height	5.08mm
Length	20.8mm
Model	QX14T50B1.843200B50TT
Packaging	Tube
Width	13.2mm
Mount Type	Through Hole
Series	QX14
Maximum Operating Temperature	85°C
Output Frequency	1.8432MHz
Package Type	DIP-14
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Pin Count	14
Maximum Supply Voltage	5V
Load Capacitance	50pF
Oscillator Type	XO
Output Level	HCMOS

Key Features

This oscillator uses XO technology for precise frequency generation.
It features a HCMOS output level suitable for digital circuits.
The 14-pin DIP-14 package ensures compatibility with standard through-hole mounting.
Operating temperature range extends from -40°C to 85°C for reliable performance in various environments.
Maximum supply voltage is 5V, and load capacitance is 50pF.
Hermetically sealed package design reduces aging and enhances reliability.
Includes tristate function (enable/disable) for flexible integration.
Manufactured to RoHS standards and originated from China.

Product Description

QANTEK QX14T50B1.843200B50TT 1.8432MHz XO Oscillator with ±50 ppm frequency stability is designed for accurate timing and clock functions in electronic circuits. This oscillator is housed in a standard 14-pin Dual-In-Line (DIP-14) through-hole mount package, allowing easy integration on a wide range of printed circuit boards.

Featuring a HCMOS output level, it provides compatibility with modern digital logic devices, making it ideal for communication, measurement, and control applications.

The product operates reliably across a wide temperature range from -40°C to 85°C, ensuring stable performance under harsh environmental conditions. The maximum supply voltage rating is 5V with a load capacitance of 50pF, supporting precise frequency output.

The hermetically sealed packaging improves longevity by reducing effects of aging and environmental influences. Additional practical features include a tristate function for enable/disable control, allowing users to manage oscillator output effectively in complex electronic systems.

Typical industrial and commercial applications include telecommunications equipment, embedded systems, timing references, and consumer electronics requiring stable frequency sources.

This oscillator uses XO technology for precise frequency generation. It features a HCMOS output level suitable for digital circuits. The 14-pin DIP-14 package ensures compatibility with standard through-hole mounting. Operating temperature range extends from -40°C to 85°C for reliable performance in various environments.

Maximum supply voltage is 5V, and load capacitance is 50pF. Hermetically sealed package design reduces aging and enhances reliability. Includes tristate function (enable/disable) for flexible integration. Manufactured to RoHS standards and originated from China.
