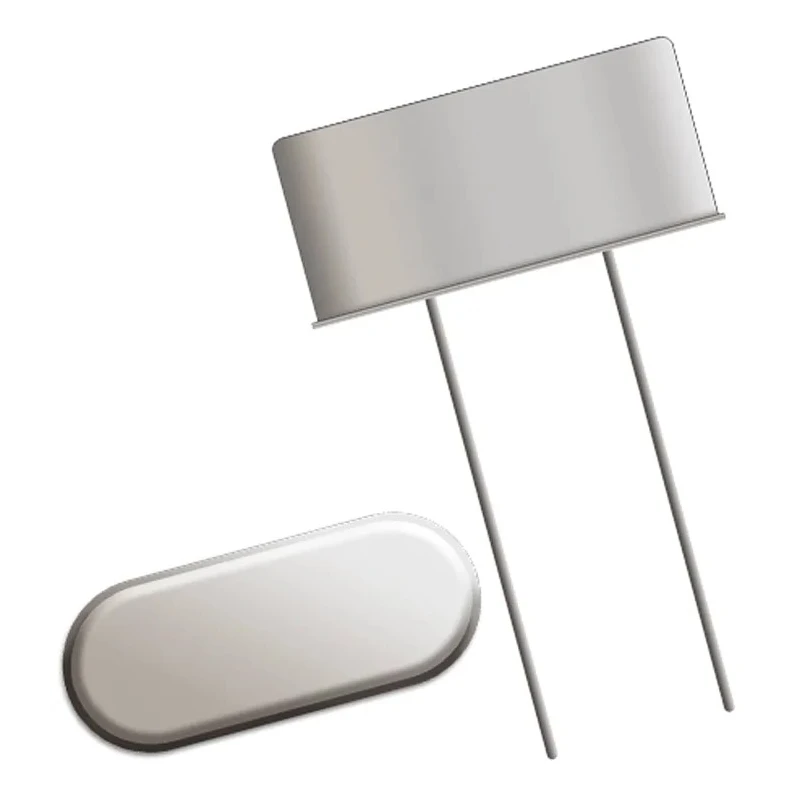

QANTEK 12 MHz Crystal ±20 ppm HC-49 2-Pin 3.5 mm Height 11.05 mm Length 4.65 mm Width QCL12.0000F18B23B

QANTEK QCL12.0000F18B23B 12 MHz Crystal HC-49 2-Pin is a precision electronic component designed for use in electronic circuits requiring stable and accurate frequency timing. Operating at 12 MHz with a frequency tolerance of ±20 ppm and frequency stability of ±30 ppm, this crystal ensures reliable oscillation.

Featuring a compact HC-49 package, the component provides 2-pin through-hole mounting, making it suitable for standard electronic assemblies and prototyping. The crystal measures 11.05 mm in length, 4.65 mm in width, and 3.5 mm in height, fitting seamlessly into PCB designs with limited space.

It has a load capacitance of 18 pF and a series resistance of 50 Ω, optimizing signal quality and reducing distortion. The operational temperature range from -40°C to 85°C allows it to be deployed in diverse industrial, commercial, and consumer electronics applications. RoHS compliant, this crystal adheres to environmental regulations, making it suitable for modern electronic manufacturing standards.

This part is ideal for use in oscillators, timers, and frequency control applications in sectors such as telecommunications, instrumentation, computing, and general electronic device fabrication.

Operates at a standard frequency of 12 MHz. Through-hole mounting with HC-49 package type. Frequency tolerance of ±20 ppm and stability of ±30 ppm. 2-pin configuration for PCB integration. Series resistance of 50 Ω ensures signal integrity.

Robust operating temperature range from -40°C to 85°C. Complies with RoHS environmental standards. Compact dimensions optimize board space efficiency.

This QANTEK crystal is sourced from China and is supplied in bulk packaging, catering to industrial batch production and professional use. It is a reliable and precise component suited for electronic engineering, manufacturing, and repair tasks. Browse more products in the Electronics Components category at EnvMart.
