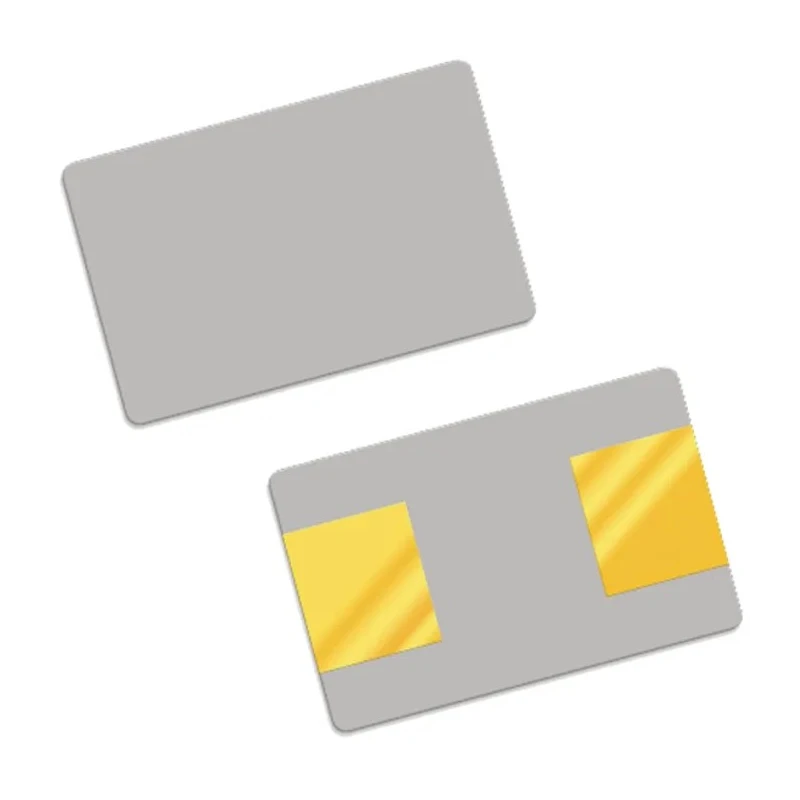

QANTEK 10 MHz Surface Mount Crystal ±20 ppm Frequency Tolerance 2-Pin 5x3.2x1.1 mm QC5CB10.0000F18B23R

QANTEK QC5CB10.0000F18B23R is a high-quality 10 MHz crystal designed for surface mount applications with a 2-pin configuration. This crystal features a frequency tolerance of ±20 ppm and a frequency stability of ±30 ppm, providing precise timing control essential for electronic oscillator circuits in industrial, communication, and consumer electronic applications.

The compact ceramic case measuring 5 mm in length, 3.2 mm in width, and 1.1 mm in height, makes it suitable for dense PCB layouts requiring surface mount components. The 18 pF load capacitance and 100 Ω series resistance support optimal circuit operation and signal integrity. Its robust operating temperature range from -40°C to 85°C allows reliable performance in diverse environments.

This crystal complies with RoHS directives, confirming its environmentally conscious manufacturing process. Packaged on tape and reel, it supports efficient automated manufacturing processes, reducing production time and errors.

Typical applications include timing references in microcontrollers, communication devices, measurement instruments, and other precision electronic equipment in industrial, laboratory, and commercial sectors.

The QANTEK QC5CB10.0000F18B23R crystal combines precision, durability, and ease of integration, making it a reliable choice for engineers and manufacturers seeking high-performance frequency control devices.

Standard frequency of 10 MHz ensures reliable oscillation performance. Frequency tolerance of ±20 ppm guarantees precise operational accuracy. Surface mount 2-pin package facilitates efficient PCB assembly. Compact dimensions: 5 mm length, 3.2 mm width, and 1.1 mm height for space-saving integration.

Load capacitance rated at 18 pF for stable circuit matching. Operating temperature range from -40℃ to 85℃ ensures durability under varying conditions. Series resistance of 100 Ω supports signal quality in oscillator circuits.
