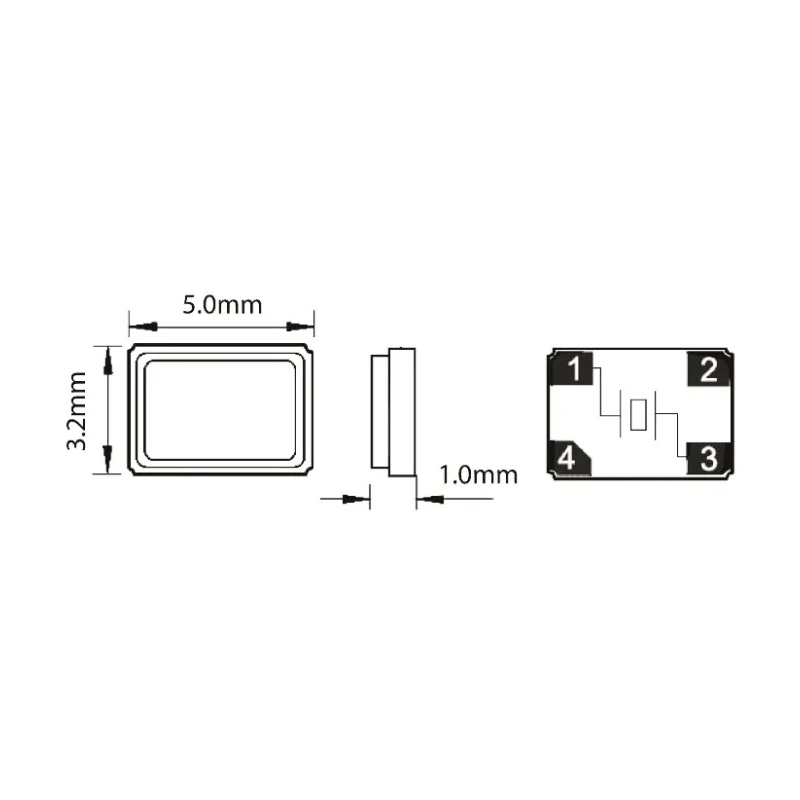

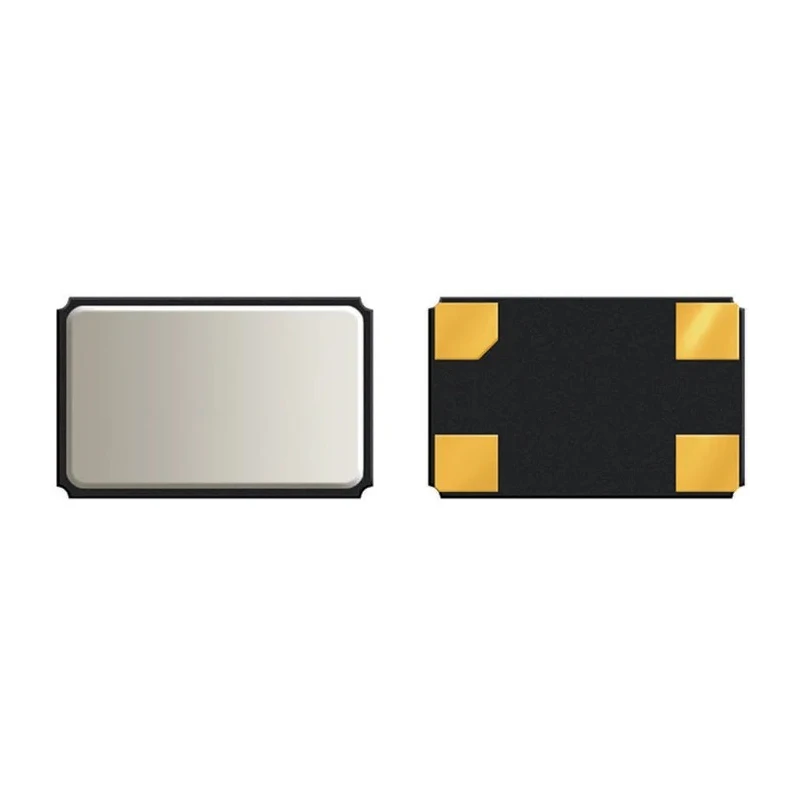

QANTEK 12 MHz Crystal ±10 ppm Surface Mount 4-Pin 5 x 3.2 x 1 mm QC5A12.0000F12B12
Specifications
| Country of Origin | China |
|---|---|
| Brand | QANTEK |
| Height | 1mm |
| Length | 5mm |
| Model | QC5A12.0000F12B12 |
| Packaging | Tape & Reel |
| Width | 3.2mm |
| Mount Type | Surface |
| Series | QC5A |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Automotive Standard | AEC-Q200 |
| Standard Frequency | 12MHz |
| Load Capacitance | 12pF |
| Series Resistance | 90Ω |
| Abracon 12MHz Crystal ±20ppm SMD 4-Pin 5 x 3.2 x 1.1mmBrand | Abracon |
Key Features
- Operates at a standard frequency of 12 MHz with a frequency tolerance of ±10 ppm.
- Packaged in a compact 5 x 3.2 x 1 mm ceramic surface mount case.
- Features a 4-pin configuration suitable for surface mounting applications.
- Load capacitance is 12 pF, optimized for stable oscillation.
- Supports an operating temperature range from -40°C to 85°C for reliable performance.
- Exhibits a maximum series resistance of 90 Ω, ensuring low signal loss.
- Complies with RoHS standards and the automotive AEC-Q200 standard for quality assurance.
- Delivered in tape and reel packaging, facilitating efficient automated assembly.
Product Description
The QANTEK QC5A12.0000F12B12 crystal oscillator is a surface mount 4-pin device operating at a frequency of 12 MHz with a frequency tolerance of ±10 ppm. Designed with a compact 5 x 3.2 x 1 mm ceramic case, this component offers excellent stability and precision for frequency control in various electronic applications.
This crystal unit features a load capacitance of 12 pF and a series resistance of 90 Ω, enabling consistent oscillation and minimal energy loss. It supports a wide operating temperature range from -40°C to 85°C, making it suitable for use in challenging industrial and automotive environments. The product meets RoHS compliance requirements and adheres to the AEC-Q200 automotive standard, ensuring high reliability and environmental safety.
Packaged in tape and reel format, the QC5A12.0000F12B12 facilitates efficient automated PCB assembly processes in industrial and manufacturing settings. Its small footprint and stable performance make it ideal for applications including telecommunications, automotive electronics, and precision instrumentation.
Operates at 12 MHz with ±10 ppm tolerance for accurate frequency control. Compact surface mount package measuring 5 x 3.2 x 1 mm. 4-pin configuration optimized for solder pad mounting. Load capacitance of 12 pF for consistent oscillator stability.
Wide temperature operating range from -40°C to 85°C. Low series resistance of 90 Ω to reduce signal loss. Compliance with RoHS and AEC-Q200 automotive standards. Packaged in tape and reel for automated assembly line compatibility.
This QANTEK crystal unit supports reliable performance in industrial, automotive, telecommunications, and precision measurement instrument applications. It is an essential component for designers requiring high stability and precision in frequency-dependent circuits. Browse EnvMart's electronic components category for additional quality oscillator and crystal products suitable for your technical needs.
Explore more products in our Crystal Units category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The QANTEK QC5A12.0000F12B12 operates at a standard frequency of 12 MHz.
It has a frequency tolerance of ±10 ppm, ensuring accurate frequency control.
This model measures 5 mm in length, 3.2 mm in width, and 1 mm in height.
The load capacitance is 12 pF, which is optimized for stable oscillation.
It exhibits a maximum series resistance of 90 Ω, which helps to minimize signal loss.
The operating temperature range is from -40°C to 85°C, making it suitable for various environments.
It is packaged in tape and reel format, facilitating efficient automated assembly.
It complies with RoHS standards and the automotive AEC-Q200 standard for quality assurance.
This model features a 4-pin configuration suitable for surface mounting applications.
The mount type is surface mount, designed for solder pad mounting.
It is suitable for applications in telecommunications, automotive electronics, and precision instrumentation.
This model belongs to the QC5A series of crystal oscillators.
