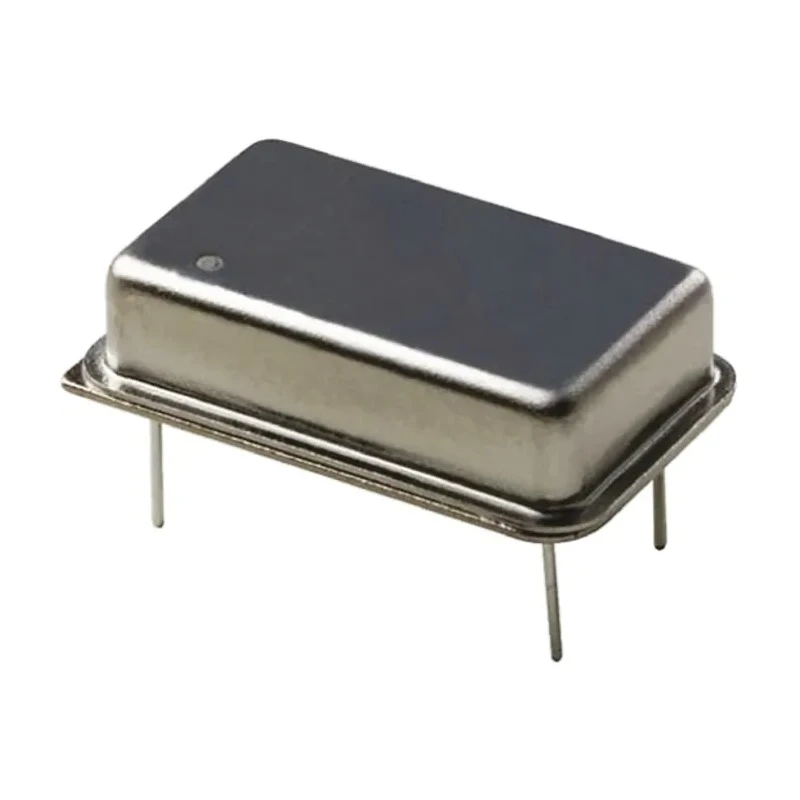

QANTEK 1.8432MHz XO Oscillator ±50 ppm HCMOS 14-Pin DIP-14 QX14T50B1.843200B50TT
Specifications
| Country of Origin | China |
|---|---|
| Brand | QANTEK |
| Height | 5.08mm |
| Length | 20.8mm |
| Model | QX14T50B1.843200B50TT |
| Packaging | Tube |
| Width | 13.2mm |
| Mount Type | Through Hole |
| Series | QX14 |
| Maximum Operating Temperature | 85°C |
| Output Frequency | 1.8432MHz |
| Package Type | DIP-14 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Maximum Supply Voltage | 5V |
| Load Capacitance | 50pF |
| Oscillator Type | XO |
| Output Level | HCMOS |
Key Features
- Industry-standard 14-pin DIP package ensures broad compatibility.
- HCMOS output level supports modern digital circuits.
- Reliable hermetically sealed housing minimizes aging effects.
- Wide operating temperature range from -40°C to 85°C suits various environments.
- Load capacitance specified at 50 pF for optimal circuit matching.
- Maximum supply voltage is 5 volts for efficient power usage.
- Package dimensions measure 20.8mm length, 13.2mm width, and 5.08mm height.
- Mount type is through-hole for secure PCB installation.
Product Description
QANTEK QX14T50B1.843200B50TT is a 1.8432MHz XO Oscillator designed for stable frequency generation in electronic circuits. It features a 14-pin Dual-In-Line (DIP) package configured for through-hole mounting, making it compatible with a wide range of PCB designs.
The oscillator provides a frequency stability of ±50 ppm, suitable for applications requiring precise timing signals. Its HCMOS output level ensures reliable interfacing with contemporary digital logic devices. The robust hermetically sealed case enhances long-term reliability and reduces frequency drift caused by aging.
Designed to operate within a broad temperature range from -40°C to 85°C, this oscillator meets requirements for industrial and commercial electronic environments. The maximum supply voltage rating is 5V, with a load capacitance of 50 pF specified for optimal electrical performance.
Physical dimensions are compact with a length of 20.8mm, width of 13.2mm, and height of 5.08mm. This component complies with the RoHS directive, ensuring that it contains reduced levels of hazardous substances.
Use in industrial and commercial electronics for clock and timing generation. Suitable for embedded systems, communication devices, and instrumentation requiring stable frequency reference. Through-hole mounting simplifies PCB assembly and repair.
Hermetically sealed for enhanced environmental resistance and extended lifespan. Ideal for integration in power supply control circuits and general digital electronics.
This QANTEK oscillator is a reliable choice for engineers and designers seeking a precision timing component in a standard 14-pin DIP form factor. Browse our wide selection of electronic components and Oscillators at EnvMart for complementary parts and accessories.
