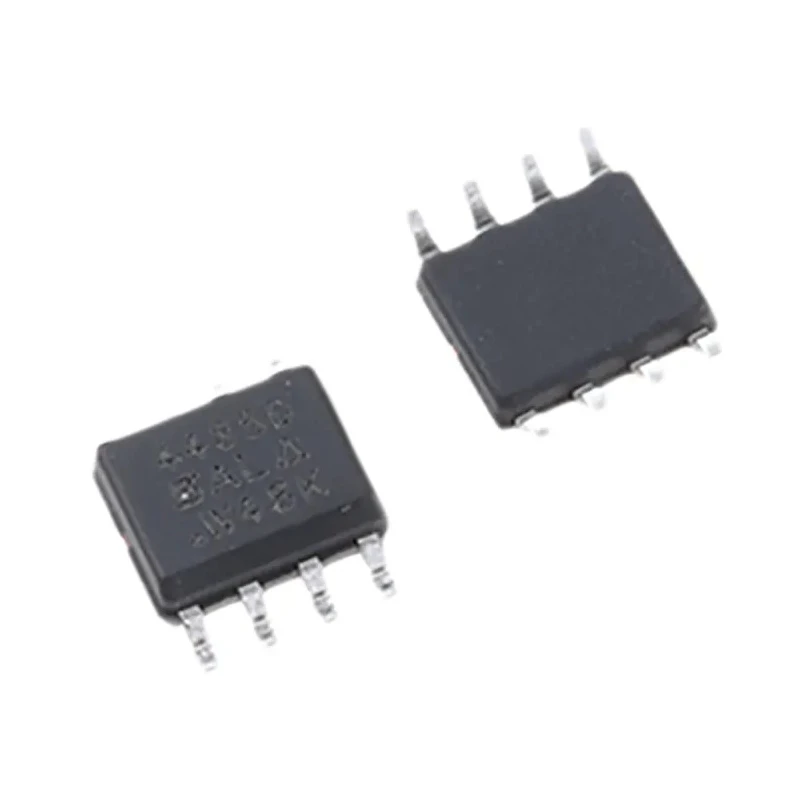

Vishay P-Channel MOSFET 30 V, 8.1 A, 2.5 W Power Dissipation, SOIC 8-Pin Surface Mount SI4435DDY-T1-GE3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 1.5mm |
| Length | 5mm |
| Model | SI4435DDY-T1-GE3 |
| Width | 4mm |
| Mount Type | Surface |
| Series | Si4435DDY |
| Maximum Operating Temperature | 150°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -55°C |
| Pin Count | 8 |
| Channel Type | Type P |
| Maximum Continuous Drain Current Id | 8.1A |
| Maximum Drain Source Voltage Vds | 30V |
| Maximum Drain Source Resistance Rds | 24mΩ |
| Channel Mode | Enhancement |
| Maximum Power Dissipation Pd | 2.5W |
| Typical Gate Charge Qg @ Vgs | 32nC |
| Maximum Gate Source Voltage Vgs | -20, +20V |
| Forward Voltage Vf | -1.2V |
Key Features
- Type P channel with enhancement mode operation for efficient switching.
- Maximum continuous drain current of 8.1 A ensures powerful handling.
- 30 V maximum drain-source voltage suitable for low-voltage applications.
- Low drain-source resistance of 24 mΩ reduces power losses.
- Maximum power dissipation of 2.5 W in a compact SOIC surface mount package.
- Wide operating temperature range from -55°C to 150°C supports harsh environments.
- Typical gate charge of 32 nC at Vgs improves switching speed.
- Rated gate-source voltage of -20 V to +20 V for robust gate tolerance.
Product Description
Vishay SI4435DDY-T1-GE3 is a P-Channel Enhancement Mode MOSFET designed for efficient switching and power management in electronic circuits. It supports a maximum continuous drain current of 8.1 A and a maximum drain-source voltage of 30 V. The device is supplied in an industry-standard 8-pin SOIC surface mount package, making it suitable for compact PCB layouts in industrial and consumer electronics.
The MOSFET features a low on-resistance of 24 milliohms to enhance efficiency and reduce heat dissipation. With a maximum power dissipation rating of 2.5 W, it can maintain reliable operation under typical workload conditions. Its wide temperature operating range from -55°C to 150°C ensures stable performance in demanding environments, including industrial manufacturing and automotive electronic systems.
This device includes a typical gate charge of 32 nC at gate-source voltage which supports rapid switching speeds essential for PWM and digital signal controls. The maximum gate-source voltage rating ranges from -20 V to +20 V, offering flexibility in drive voltages without risking damage to the gate oxide.
The compact SOIC package measuring 5 mm in length, 4 mm in width, and 1.5 mm in height allows seamless integration into modern electronics. While it does not carry automotive standard approvals, it is suitable for a wide range of general semiconductor applications such as power management, DC/DC converters, and load switching in industrial, laboratory, and consumer electronic devices.
Type P channel semiconductor device optimized for power switching. 8.1 Amp maximum continuous drain current for moderate power loads. 30 Volt drain-source voltage rating ideal for low voltage applications. SOIC 8-pin surface mount package for compact PCB designs.
Maximum power dissipation of 2.5 Watts supports moderate thermal loads. Wide temperature range from -55°C to 150°C for industrial reliability. Typical gate charge of 32 nC enabling efficient switching performance. Gate-source voltage tolerance of -20 to +20 Volts for flexible drive voltages.
Low 24 milliohms drain-source resistance reduces conduction losses. Explore the full range of Vishay MOSFETs and discrete semiconductors on EnvMart to find the optimal component for your power management and switching designs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous drain current of this model is 8.1 A, allowing it to handle moderate power loads efficiently.
This MOSFET has a maximum drain-source voltage rating of 30 V, making it suitable for low-voltage applications.
It supports a maximum power dissipation of 2.5 W, which is adequate for moderate thermal loads during operation.
The device features a low drain-source resistance of 24 mΩ, which helps to reduce power losses during operation.
The typical gate charge for this model at gate-source voltage is 32 nC, which enhances its switching speed.
It operates within a wide temperature range from -55°C to 150°C, making it suitable for harsh environments.
This model is supplied in an 8-pin SOIC surface mount package, which is ideal for compact PCB designs.
The dimensions of this MOSFET are 5 mm in length, 4 mm in width, and 1.5 mm in height.
The maximum gate-source voltage rating is -20 V to +20 V, providing flexibility in drive voltages.
This unit features a P-channel type with enhancement mode operation, optimized for power switching applications.
It is suitable for a variety of applications including power management, DC/DC converters, and load switching in industrial and consumer electronics.
The forward voltage of this model is -1.2 V, which is relevant for its operation in certain circuit configurations.
