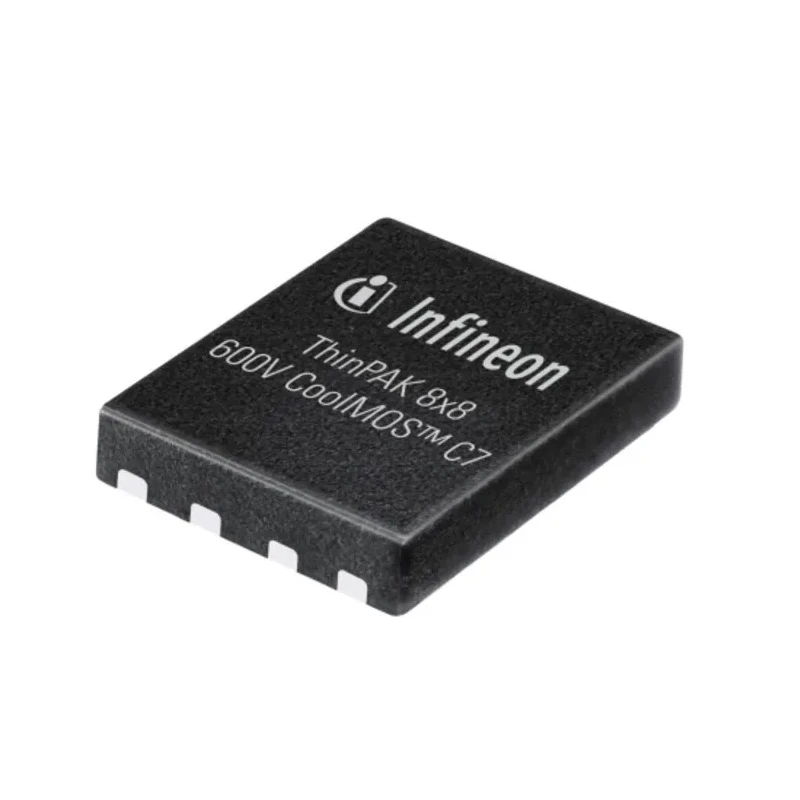

Infineon CoolMOS C7 N-Channel MOSFET, 20 A, 600 V Enhancement Mode, 5-Pin VSON IPL60R104C7AUMA1

The Infineon IPL60R104C7AUMA1 is a CoolMOS C7 series N-Channel MOSFET designed for high voltage power applications, featuring enhancement mode operation and a maximum continuous drain current of 20 amperes at up to 600 volts drain source voltage.

Built on the super junction technology pioneered by Infineon Technologies, this MOSFET offers increased power density and reduced switching losses, making it highly suitable for both hard and soft switching functions in industrial, power supply, and electronic applications.

It is housed in a 5-pin VSON surface mount package that minimizes parasitic inductance, enabling efficient device control. The device supports robust thermal management with a maximum power dissipation rating of 122 watts and an operating temperature range from -40°C to 150°C.

With a low maximum drain source resistance of 104 milliohms and a typical gate charge of 42 nanocoulombs, this MOSFET ensures fast switching and efficient conduction. Its gate can withstand voltages up to 20 volts, ensuring durability and reliability under demanding electrical stresses.

Compact with dimensions of 8.1 mm length, 8.1 mm width, and 1.1 mm height, it facilitates efficient PCB assembly and layout optimization. The forward voltage is 900 mV, contributing to effective power management in various electronic equipment including industrial controllers, power adapters, and switching regulators.

Utilizes CoolMOS C7 super junction technology for higher efficiency. 5-pin VSON SMD package ensures low parasitic inductance. Handles 20 A continuous drain current at 600 V drain source voltage. Enhanced power dissipation of 122 W for thermal reliability.

Wide operational temperature range from -40°C to 150°C. Low maximum Rds(on) of 104 milliohms reduces conduction losses. Typical gate charge of 42 nC for rapid switching performance. Robust maximum gate voltage rating of 20 V.

Compact footprint of 8.1 x 8.1 x 1.1 mm for space-constrained designs. Designed for use in industrial, electronic, and power management applications.

This MOSFET is ideal for industrial power electronics, switching power supplies, and electronic component assemblies requiring reliable high voltage switching and efficient thermal performance. It represents advanced semiconductor technology from Infineon, trusted for superior quality and efficiency in power devices.
