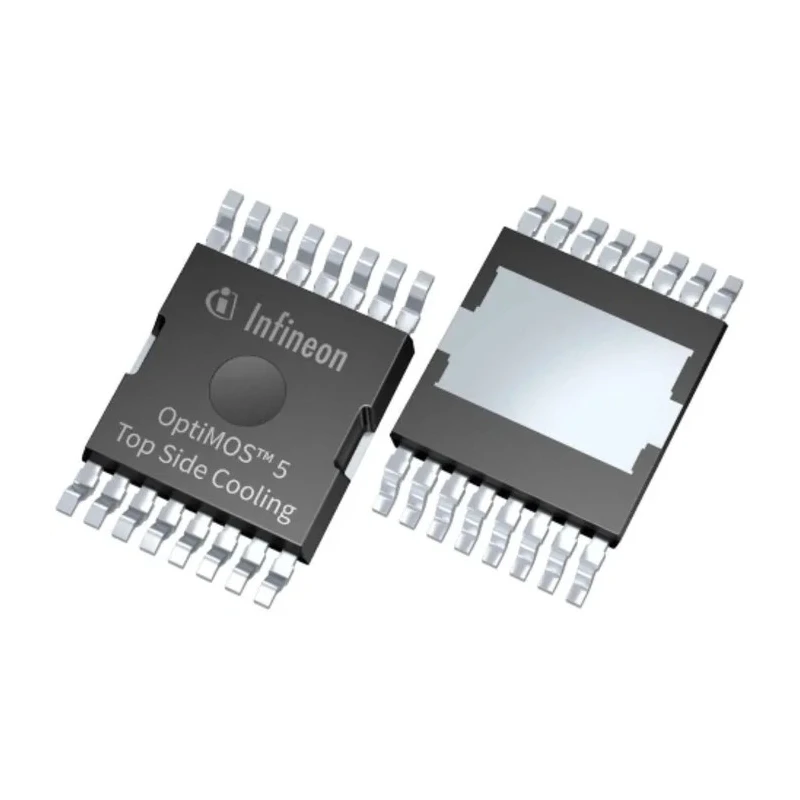

Infineon N-Channel MOSFET 80 V, 327 A, 1.4 mΩ Rds, 16-Pin HDSOP Surface Mount IAUS300N08S5N014TATMA1

Free Delivery in India | Lowest Global Shipping Charges

Infineon N-Channel MOSFET 80 V, 327 A, 1.4 mΩ Rds, 16-Pin HDSOP Surface Mount IAUS300N08S5N014TATMA1

Name: Infineon N-Channel MOSFET 80 V, 327 A, 1.4 mΩ Rds, 16-Pin HDSOP Surface Mount IAUS300N08S5N014TATMA1
Brand: Infineon
SKU: 172439



Category MOSFET Brand Infineon Condition New

Specifications

Country of Origin	India
Brand	Infineon
Model	IAUS300N08S5N014TATMA1
Mount Type	Surface
Series	IAUS300N08S5N014T
Package Type	HDSOP
Pin Count	16
Automotive Standard	AEC-Q101
Channel Type	N
Maximum Continuous Drain Current Id	327A
Maximum Drain Source Voltage Vds	80V
Maximum Drain Source Resistance Rds	1.4mΩ
Channel Mode	Enhancement

Key Features

The device features a low 1.4 mΩ maximum drain-source resistance for high efficiency.
Utilizes Infineon's OptiMOS-5 technology designed for 48 V auxiliary and DC-DC converter applications.
Topside cooled design with TOLT package improves thermal management.
IEC automotive standard compliant (AEC-Q101) ensuring reliability in automotive environments.
MSL1 rated withstands up to 260°C peak reflow soldering temperature.
Supports operation at ambient temperature up to 175°C for robust performance.
100% avalanche tested for high ruggedness and reliability.
Optimized for surface mount PCB assembly with 16 pins for compact, low-inductance mounting.

Product Description

Infineon IAUS300N08S5N014TATMA1 is a high-performance N-Channel MOSFET optimized for power electronics applications. Featuring a maximum continuous drain current of 327 A and a maximum drain-source voltage of 80 V, this device is ideal for automotive auxiliary power supplies, DC-DC converters, and main battery switching in 48 V systems.

Built with Infineon's advanced OptiMOS-5 technology and a low maximum drain-source resistance of 1.4 mΩ, the MOSFET ensures efficient switching and low conduction losses. Its TOLT package provides topside cooling advantages, making it suitable for thermal management demanding environments.

The device has a surface mount 16-pin HDSOP package which facilitates compact and reliable PCB integration, minimizing parasitic inductances and allowing high current conduction.

Compliant with AEC-Q101 automotive standard, it guarantees robustness and reliability for automotive-grade applications. The component is 100% avalanche tested and rated for moisture sensitivity level 1 (MSL1), capable of withstanding peak reflow soldering temperatures of up to 260°C. It supports ambient operation temperatures up to 175°C, ensuring high thermal stability in harsh conditions.

Typical use cases include industrial power management, automotive electronics, renewable energy systems, electric vehicles, and advanced DC-DC converters where efficiency and reliability are critical.

The device features a low 1.4 mΩ maximum drain-source resistance for high efficiency. Utilizes Infineon's OptiMOS-5 technology designed for 48 V auxiliary and DC-DC converter applications. Topside cooled design with TOLT package improves thermal management.

IEC automotive standard compliant (AEC-Q101) ensuring reliability in automotive environments. MSL1 rated withstands up to 260°C peak reflow soldering temperature. Supports operation at ambient temperature up to 175°C for robust performance.

100% avalanche tested for high ruggedness and reliability. Optimized for surface mount PCB assembly with 16 pins for compact, low-inductance mounting. Explore the Infineon MOSFET category on EnvMart for more high-quality semiconductor solutions tailored to industrial, automotive, and power electronics needs.
