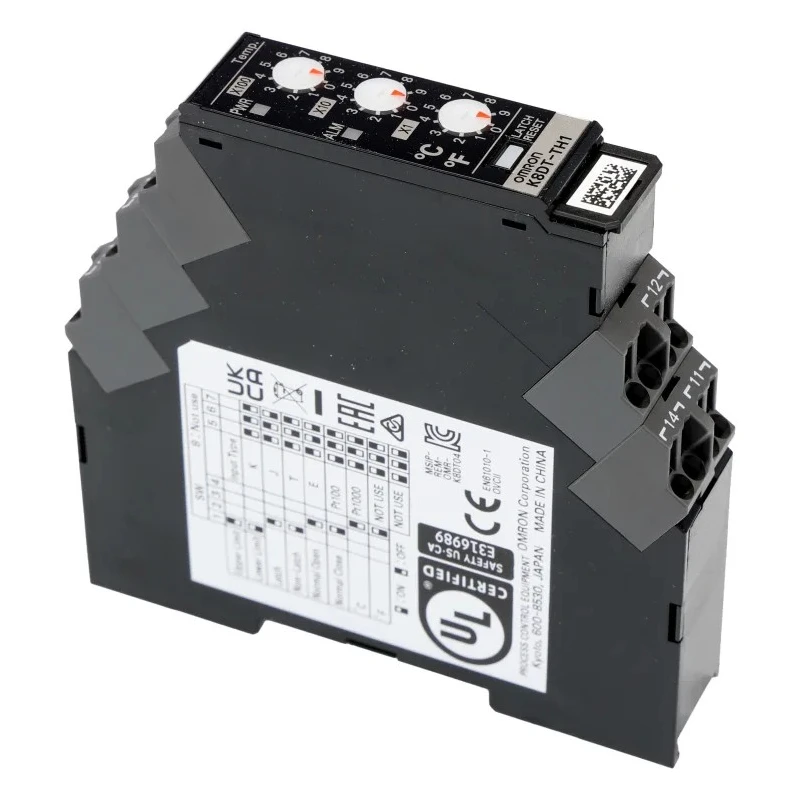

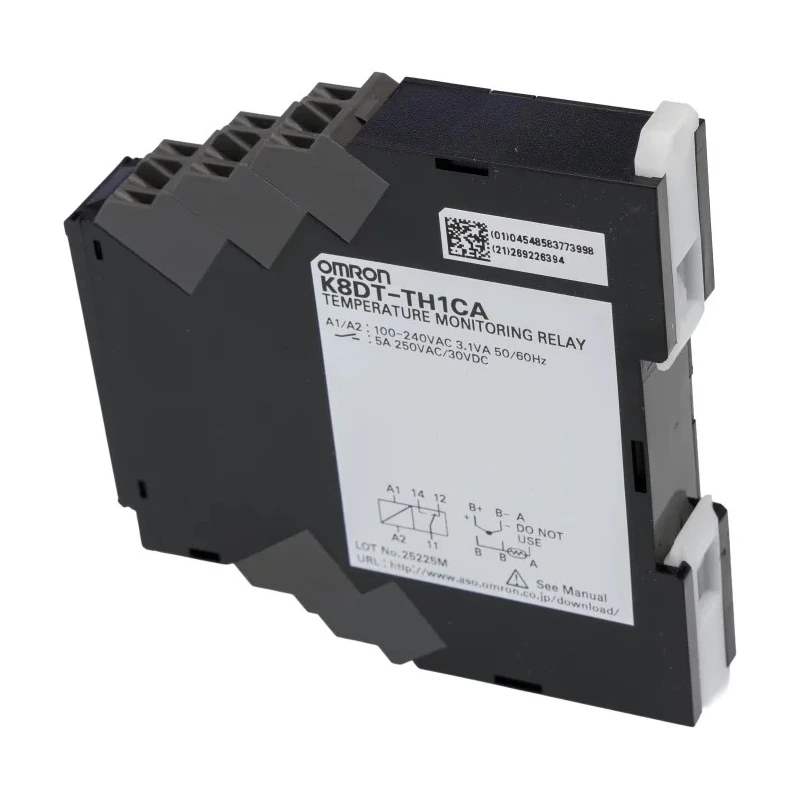

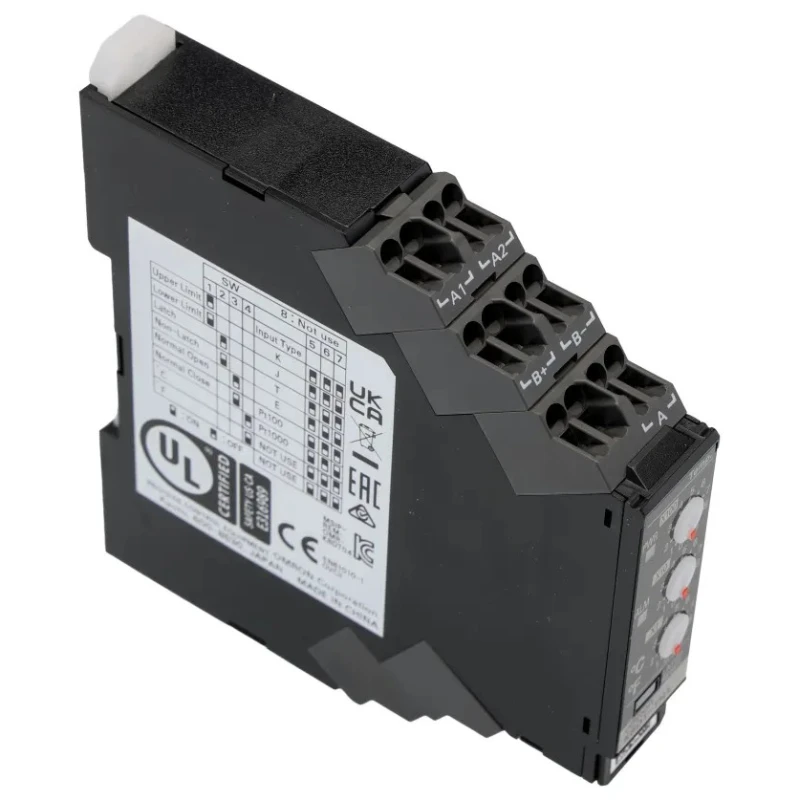

Omron Monitoring Relay Thermocouple SPDT Contact Configuration DIN Rail Mount K8DT-TH1CA

Free Delivery in India | Lowest Global Shipping Charges

Omron Monitoring Relay Thermocouple SPDT Contact Configuration DIN Rail Mount K8DT-TH1CA

Name: Omron Monitoring Relay Thermocouple SPDT Contact Configuration DIN Rail Mount K8DT-TH1CA
Brand: Omron
SKU: 138947
Price: 195.16 USD
Availability: InStock



Category Monitoring Relays Brand Omron Condition New

Specifications

Country of Origin	China
Brand	Omron
Height	90mm
Length	90mm
Model	K8DT-TH1CA
IP Rating	IP20
Mount Type	DIN Rail
Series	K8DT-TH
Maximum Operating Temperature	60°C
Contact Configuration	SPDT
Sub Type	Thermocouple
Minimum Operating Temperature	+60°C
Terminal type	Push-in
Standards/Approvals	CE, cULus
Contact Current	10A
Maximum Temperature Monitoring	999°C
Minimum Temperature Monitoring	0°C
Omron Monitoring Relay, SPDT, DIN Rail, Monitoring	0 °C to 999 °C 0V ac

Key Features

Monitors temperature range from 0 °C to 999 °C with precise control.
Equipped with SPDT contact configuration supporting 10A contact current.
Features Push-In Plus terminal technology for easy and reliable wiring.
Compatible with K, J, T, E thermocouples and platinum resistance thermometers Pt100, Pt1000.
Operating temperature range from -20 °C up to 60 °C ensures broad industrial application.
CE and cULus certified for safety and compliance with industry standards.
Ideal for industrial temperature monitoring, HVAC systems, electrical panels, and overtemperature detection.

Product Description

Omron K8DT-TH1CA monitoring relay is engineered for precise temperature sensing and control, featuring an SPDT contact configuration and DIN rail mounting for easy integration in electrical and automation panels. It monitors temperatures effectively from 0 °C to 999 °C, ensuring protection against overheating and enhancing system safety across various industrial environments.

The device employs user-friendly rotary switches for temperature settings and offers both relay and transistor output options. It incorporates Push-In Plus technology, significantly simplifying wiring processes by enabling quick connection and disconnection of terminals.

Compatible with multiple sensor types - K, J, T, and E thermocouples and platinum resistance sensors Pt100 and Pt1000 - this relay is versatile for different sensing requirements. It supports frequencies from 10 to 55 Hz, providing reliable monitoring performance in complex electrical systems.

Designed to operate within -20 °C to +60 °C, the K8DT-TH1CA is suitable for demanding industrial and HVAC applications where accurate temperature monitoring is critical. Its compact dimensions (90mm height, 90mm length, 17.5mm width) and DIN rail mounting optimize panel space.

Monitors temperatures from 0 °C to 999 °C with high accuracy. SPDT contact supports up to 10 A contact current. Innovative Push-In Plus terminals improve installation efficiency. CE and cULus certified ensuring reliable industrial safety.

Compatible with thermocouples type K, J, T, E and Pt100/Pt1000 sensors. Functions efficiently from -20 °C to +60 °C ambient temperature. Compact DIN rail mount design for space saving in control panels.

This monitoring relay is essential for industrial process control, HVAC temperature control, electrical panel temperature monitoring, and overtemperature protection systems. Its robust build and certifications comply with international standards EN61010-1, EN 61326-1, UL 61010-1, ensuring dependable operation in diverse industrial scenarios.
