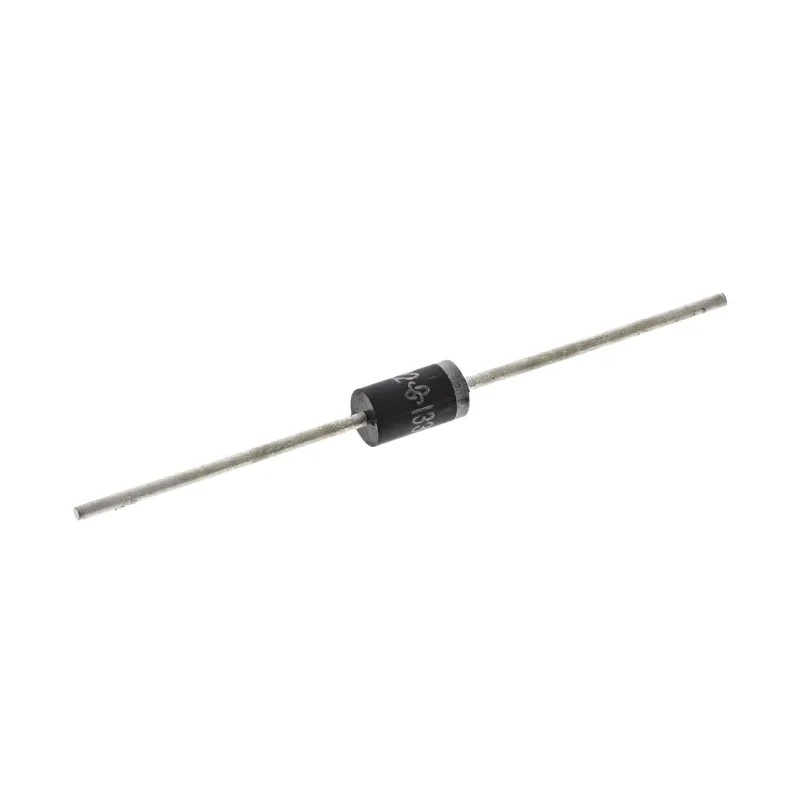

Vishay 40 V 3 A Schottky Diode 2-Pin DO-201AD 1N5822-E3/54
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 5.3mm |
| Brand | Vishay |
| Height | 5.8mm |
| Length | 10mm |
| Model | 1N5822-E3/54 |
| Width | 5.8mm |
| Mount Type | Through Hole |
| Series | 1N5822 |
| Maximum Operating Temperature | 125°C |
| Package Type | DO-201AD |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 3A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 2mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 80A |
| Maximum Forward Voltage Vf | 0.95V |
Key Features
- This Schottky diode supports a maximum continuous forward current of 3 amperes.
- It features a peak reverse repetitive voltage of 40 volts suitable for power rectification.
- The diode package type is DO-201AD with a 2-pin through-hole mount configuration.
- It offers a maximum forward voltage of 0.95 volts, reducing power loss in circuits.
- The device withstands high surge currents up to 80 amperes peak non-repetitive forward surge.
- Operating temperature ranges from -65 to 125 degrees Celsius for robustness in diverse environments.
Product Description
Vishay 1N5822-E3/54 is a high performance Schottky diode designed for electronic applications requiring fast switching and low power loss. Featuring a 2-pin DO-201AD through-hole mount package, this device provides a maximum continuous forward current rating of 3 amperes and a peak reverse repetitive voltage of 40 volts. It is highly suitable for power rectification in circuits requiring efficient conversion.
The diode exhibits a low forward voltage drop of 0.95 volts, contributing to reduced heat dissipation and increased efficiency. Its ability to handle peak non-repetitive forward surge currents of up to 80 amperes makes it robust under transient conditions. Operating temperatures range from -65°C to +125°C, ensuring reliable performance in demanding industrial, automotive, and power supply applications.
With physical dimensions of 10 mm length, 5.8 mm width and height, and 5.3 mm diameter, the 1N5822-E3/54 is compact and easy to integrate into electronic assemblies. The Schottky diode configuration provides extremely fast switching capabilities with minimal reverse recovery time, ideal for high-frequency and low-voltage drop needs.
This diode supports continuous forward current of 3A. Voltage rating of 40 V peak reverse repetitive voltage. Standard DO-201AD package with two pins for reliable mounting. Low forward voltage drop ensures energy efficient operation.
Wide operating temperature range for industrial applications. Handles high surge current of 80A safely. Compact size suitable for space constrained circuit boards. Typical use cases include power rectification, switching power supplies, inverters, and automotive electronics where high efficiency and fast switching are critical.
Explore more Vishay semiconductor components and Schottky diodes at EnvMart for reliable electronic solutions.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 3 amperes.
It has a peak reverse repetitive voltage rating of 40 volts.
The maximum forward voltage drop is 0.95 volts, which helps reduce power loss in circuits.
This diode features a DO-201AD package type with a 2-pin through-hole mount configuration.
The operating temperature range is from -65°C to +125°C, making it suitable for diverse environments.
It can withstand peak non-repetitive forward surge currents of up to 80 amperes.
The diode has a length of 10 mm, width of 5.8 mm, height of 5.8 mm, and a diameter of 5.3 mm.
It has a single diode configuration, typical for Schottky diodes.
This model is suitable for power rectification, switching power supplies, inverters, and automotive electronics.
The peak reverse current is specified at 2 mA.
This diode belongs to the 1N5822 series.
The country of origin for this diode is India.
