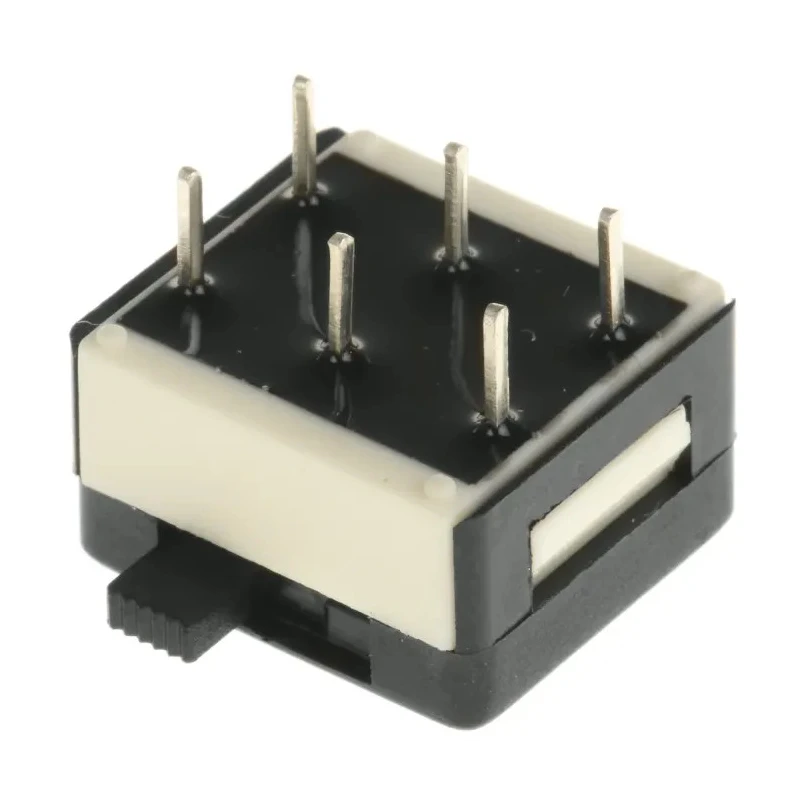

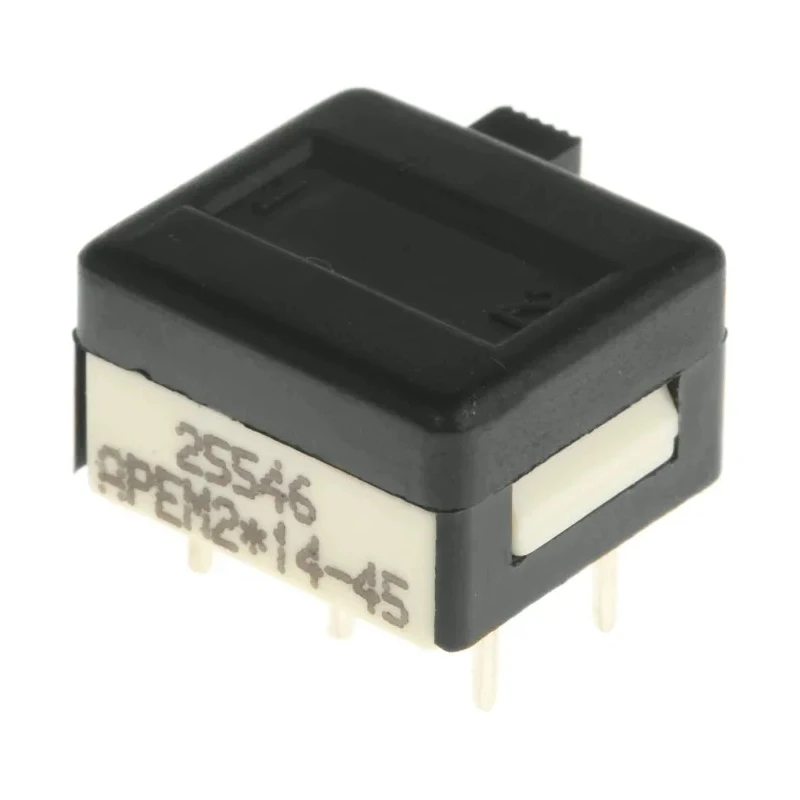

APEM PCB Slide Switch DPDT Latching 1A Fibreglass Reinforced Polyamide 25546NA

APEM 25546NA PCB Slide Switch DPDT Latching 1A Fibreglass Reinforced Polyamide is a high-quality miniature slide switch intended for use in electrical and electronic applications requiring reliable circuit control on printed circuit boards.

This model features a double-pole double-throw (DPDT) contact configuration, allowing versatile switching layouts with On-None-On switch positions. The switch operates with a latching mechanism, ensuring stable, retained toggle positions for precise control.

The switch supports a contact current rating of 1 ampere and a contact DC voltage of 30V, making it suitable for low-voltage circuit applications. It utilizes through hole terminals for secure PCB mounting and robust connectivity.

The actuator is crafted from fiberglass reinforced polyamide, offering enhanced durability and high-temperature resistance. The body is made from PBT high-temperature thermoplastic, supporting operating temperatures from -40°C to +85°C. This ensures reliable performance in various industrial and commercial environments.

With compact dimensions of 14.1 mm length, 18.5 mm width, and 8.1 mm depth, the switch fits space-sensitive applications efficiently. It also complies with UL standards, guaranteeing product safety and quality.

The APEM 25546NA model is rated for a mechanical life of 20,000 operations and an electrical life of 10,000 cycles, ensuring long-term durability in demanding industrial, automation, instrumentation, and electronics manufacturing setups.

Features a double pole double throw (DPDT) contact configuration. Operates with a stable latching switch mechanism. Rated for 1 ampere contact current and 30V DC voltage. Fiberglass reinforced polyamide actuator material.

Through hole type terminal for PCB mounting. Compact dimensions: 14.1 mm × 18.5 mm × 8.1 mm. Complies with UL safety standards. Operating temperature range from -40°C to 85°C. Mechanical life expectancy of 20,000 operations.

Electrical life rated at 10,000 cycles. This PCB slide switch is ideal for electrical, industrial automation, instrumentation, and manufacturing applications requiring reliable, durable switching components. Browse the full range of Slide Switches and other electrical components to find compatible products for your industrial and commercial projects at EnvMart.
