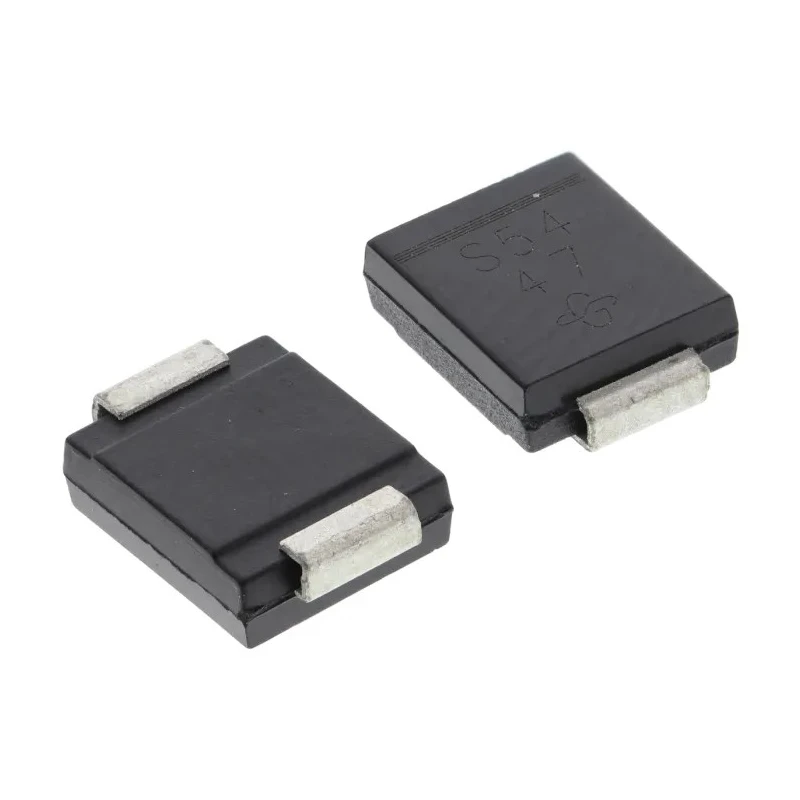

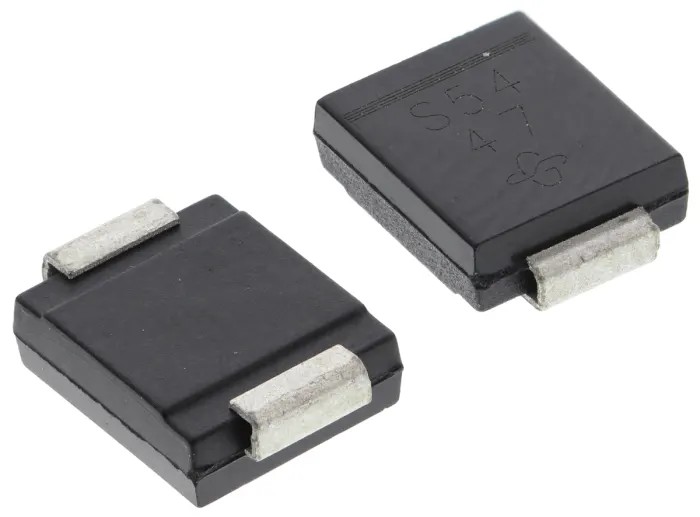

Vishay Schottky Diode 40 V 5 A 2-Pin DO-214AB SSC54-E3/57T
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Length | 7.11mm |
| Model | SSC54-E3/57T |
| Width | 6.22mm |
| Mount Type | Surface |
| Series | SSC54 |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AB (SMC) |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 5A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 500μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 175A |
| Maximum Forward Voltage Vf | 0.49V |
Key Features
- This diode supports a maximum continuous forward current of 5 A.
- It has a peak reverse repetitive voltage rating of 40 V for reliable operation.
- Compact 2-pin DO-214AB (SMC) package measures 7.11 mm in length and 6.22 mm in width.
- Operating temperature range spans from -65°C to 150°C, suitable for diverse industrial environments.
- Features very low forward voltage drop of 0.49 V to minimize power dissipation.
- Peak reverse current is rated at 500 μA for improved efficiency.
- Capable of handling peak non-repetitive forward surge current up to 175 A for transient conditions.
- Single diode configuration optimized for surface mounting on PCBs.
Product Description
Vishay SSC54-E3/57T Schottky Diode is a high-performance semiconductor diode designed for fast switching applications with very low forward voltage drop and minimal reverse recovery time.
This surface-mount diode features a DO-214AB (SMC) 2-pin package, making it ideal for compact circuit designs where space and efficiency are critical.
Its key specifications include a maximum continuous forward current of 5 A and a peak reverse repetitive voltage of 40 V, ensuring reliable operation in various power supply and rectification circuits.
The diode operates efficiently across a wide temperature range from -65°C to 150°C, making it suitable for industrial, electronic, and power management applications. Additional features such as a maximum forward voltage of 0.49 V and a peak reverse current of only 500 μA contribute to lower power losses and improved overall circuit efficiency.
It is capable of handling high peak non-repetitive forward surge currents up to 175 A, providing robust protection against transient surges. The SSC54 series from Vishay Semiconductor is known for high-quality construction and consistent performance without specific automotive standards.
This diode supports a maximum continuous forward current of 5 A. It has a peak reverse repetitive voltage rating of 40 V. Compact 2-pin DO-214AB (SMC) package. Operating temperature range from -65°C to 150°C. Low forward voltage drop of 0.49 V reduces power dissipation.
Peak reverse current rated at 500 μA. Handles peak non-repetitive forward surge current of 175 A. Single diode configuration optimized for surface mounting. Manufactured in China under Vishay Semiconductor standards. These Schottky diodes are widely used in industrial electronics, power rectification, low voltage power supplies, and fast switching circuits.
Browse more advanced semiconductor components and Vishay products on EnvMart for reliable industrial-grade electronic solutions.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 5 A.
It has a peak reverse repetitive voltage rating of 40 V.
The operating temperature range spans from -65°C to 150°C.
The DO-214AB package measures 7.11 mm in length and 6.22 mm in width.
The maximum forward voltage drop is 0.49 V, which helps minimize power dissipation.
The peak reverse current is rated at 500 μA.
It can handle peak non-repetitive forward surge currents up to 175 A.
This model is optimized for surface mounting on PCBs.
The diode has a pin count of 2.
This diode is a Schottky rectifier.
It belongs to the SSC54 series from Vishay.
It is manufactured in China under Vishay Semiconductor standards.
