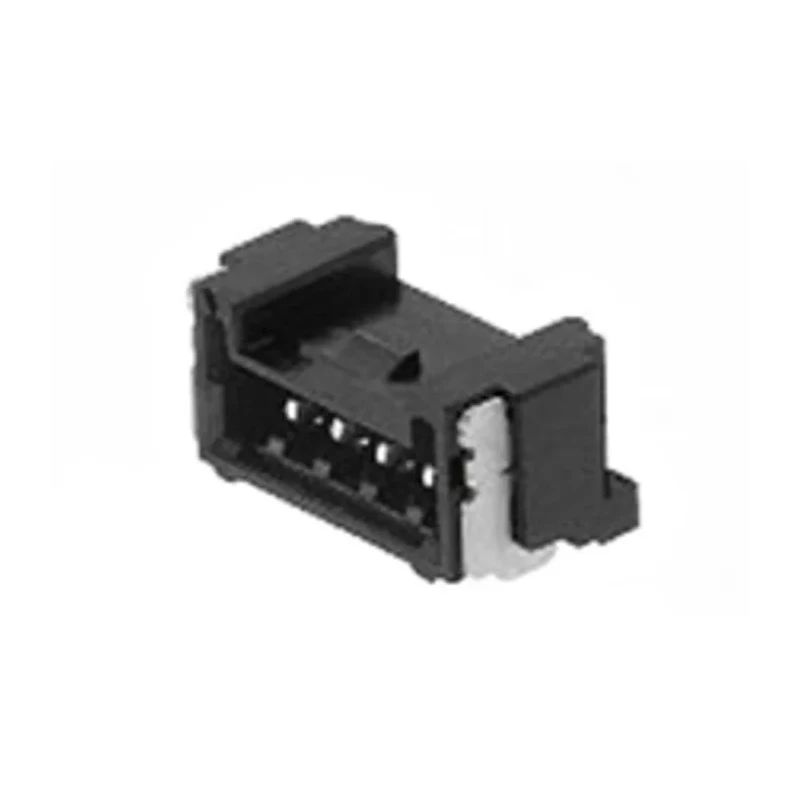

Molex Micro-Lock Plus Series Right Angle Surface PCB Header, 6 Contacts, 1.25 mm Pitch, 1 Row, Shrouded 505567-0671

Molex 505567-0671 Micro-Lock Plus Series Right Angle Surface PCB Header offers a high-performance wire-to-board connector solution engineered for reliability and compact design. Featuring 6 contacts with a 1.25 mm pitch in a single row, this shrouded header provides a secure connection suitable for numerous electronic applications.

The connector housing is constructed from robust polyamide material capable of withstanding high temperatures, making it ideal for automotive and industrial use cases where durability is critical. The brass contacts plated with tin ensure excellent conductivity and resistance to corrosion. It supports a current rating of 1.5A and a maximum voltage of 50V, providing stable electrical transmission in demanding conditions.

The right angle orientation and surface mount design facilitate efficient PCB layout optimization. The solder termination type offers reliable mechanical and electrical connections. This product accommodates a wide temperature range from -40°C to 105°C, ensuring versatile operating conditions including automotive steering wheels, paddle shift assemblies, industrial automation equipment, consumer white goods, gaming machines, drones, air conditioners, laser printers, and vacuum cleaners.

The connector features a right angle orientation suitable for compact PCB layouts. Single row configuration with 6 brass contacts plated with tin for reliable conductivity. Polyamide housing material offers durability and high temperature resistance.

Designed for surface mounting and solder termination ensuring stable connections. Supports current rating of 1.5A and voltage up to 50V for varied electronic applications. Operates in temperatures ranging from -40°C to 105°C, fitting automotive and industrial environments.

Shrouded contact design enhances safety and reduces risk of short circuits. Ideal for applications including automotive steering wheels, industrial automation, consumer electronics, and gaming machines. Manufactured in Malaysia with high-quality standards for performance and reliability.

This Molex Micro-Lock Plus PCB Header is an excellent choice for engineers and designers needing precision, durability, and compactness in their PCB connections. Explore the Molex range and similar connectors on EnvMart for industrial, automotive, and consumer electronics solutions.
