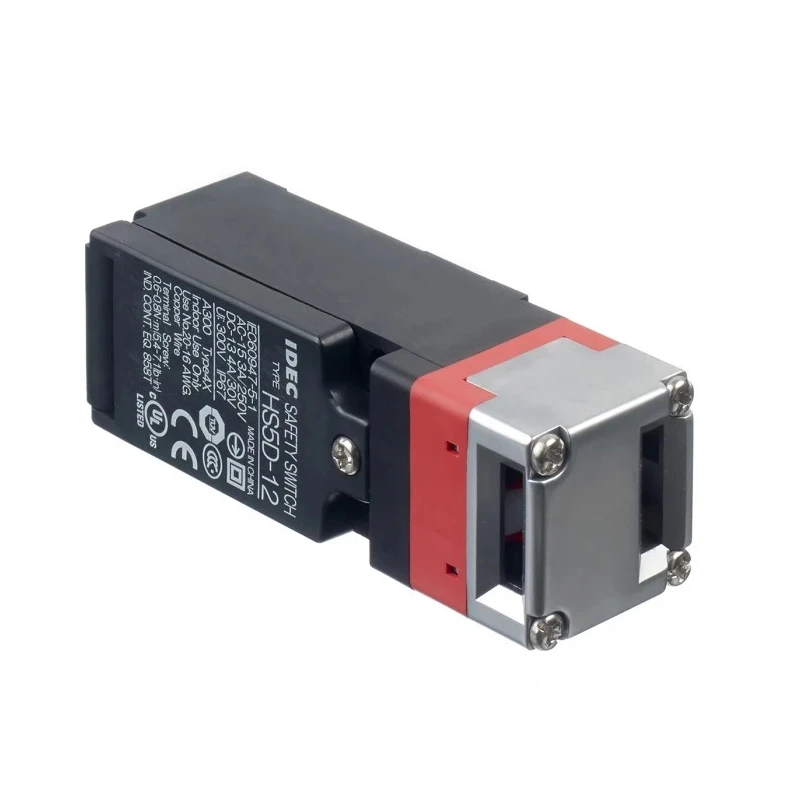

Idec Safety Interlock Switch Handle Actuator Included HS5D Operating Voltage 30V DC 250V AC IP67 JAPAN HS5D

Free Delivery in India | Lowest Global Shipping Charges

Idec Safety Interlock Switch Handle Actuator Included HS5D Operating Voltage 30V DC 250V AC IP67 JAPAN HS5D

Name: Idec Safety Interlock Switch Handle Actuator Included HS5D Operating Voltage 30V DC 250V AC IP67 JAPAN HS5D
Brand: Idec
SKU: 154077
Price: 59.45 USD
Availability: InStock



Category Safety Interlock Switch Brand Idec Condition New

Specifications

Country of Origin	Japan
Brand	Idec
Length	30mm
Model	HS5D
Depth	91mm
IP Rating	IP67
Width	30mm
Series	HS5D
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-30°C
Lock Type	Interlock
Standards/Approvals	TUV, CE, CCC, cULus
Contact DC Voltage	30V dc
Switch Contact Current	10A
Contact AC Voltage	250V ac
Lock Style	Handle
Safety Contacts	1 NO/2 NC

Key Features

Includes a handle actuator for easy manual control.
Rated for 30V DC and 250V AC contact voltages ensuring versatility.
Features IP67 protection for water and dust resistance.
Operates reliably in temperatures from -30°C to 70°C.
Compact dimensions of 30mm x 30mm x 91mm for flexible installation.
Certified to meet TUV, CE, CCC, and cULus safety standards.
Designed with interlock lock style for secure door and machinery access control.
Head orientation adjustable in eight directions for versatile mounting.

Product Description

Idec HS5D Safety Interlock Switch features a handle actuator and interlock lock type, ideal for industrial and electrical safety applications. It operates at contact DC voltage of 30V dc and AC voltage of 250V ac, supporting a switch contact current of 10A with IP67 ingress protection. The compact switch has dimensions of 30mm length, 30mm width, and 91mm depth, designed to withstand operating temperatures between -30°C and 70°C.

This switch includes 1 Normally Open (NO) and 2 Normally Closed (NC) safety contacts, equipped with a head removal detection function that disables the main circuit if the switch head is removed, enhancing operational safety. The handle actuator is interchangeable with models HS5E and HS5L, and the head can be oriented in eight different ways, allowing flexible installation options. Double insulation eliminates the need for grounding, simplifying wiring and installation.

Certified under multiple standards including TUV, CE, CCC, and cULus, the HS5D switch is suitable for use in industrial control panels, machinery enclosure access, and automated manufacturing setup to prevent hazardous conditions. Its robustness and compact size make it trusted equipment in automation, electrical safety, manufacturing, and heavy machinery environments.

Includes a handle actuator for easy manual operation and interlock functionality. Interlock lock style ensures secure access control for doors and panels. Head orientation is adjustable in eight positions for versatile applications.

Operating temperature from -30°C to 70°C enables use in harsh environments. IP67 rated for dust and water resistance, suitable for industrial use cases.

Set contains one Idec HS5D Safety Interlock Switch with included handle actuator, model number HS5D-12ZRN. Made in Japan and designed for safety and reliability in electrical control systems. Explore more Safety Interlock Switches and components at EnvMart for industrial automation needs.
