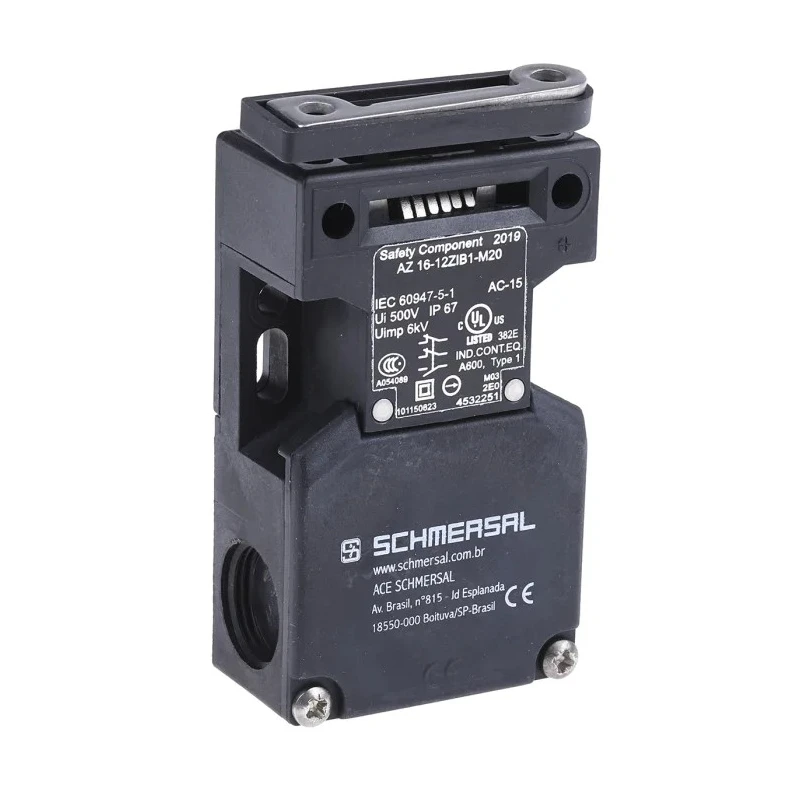

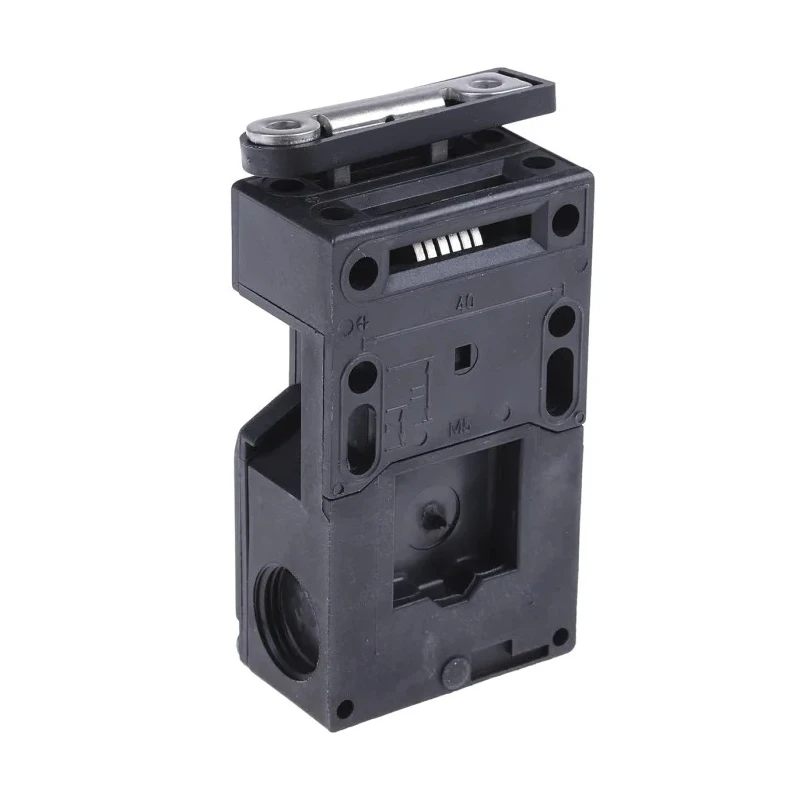

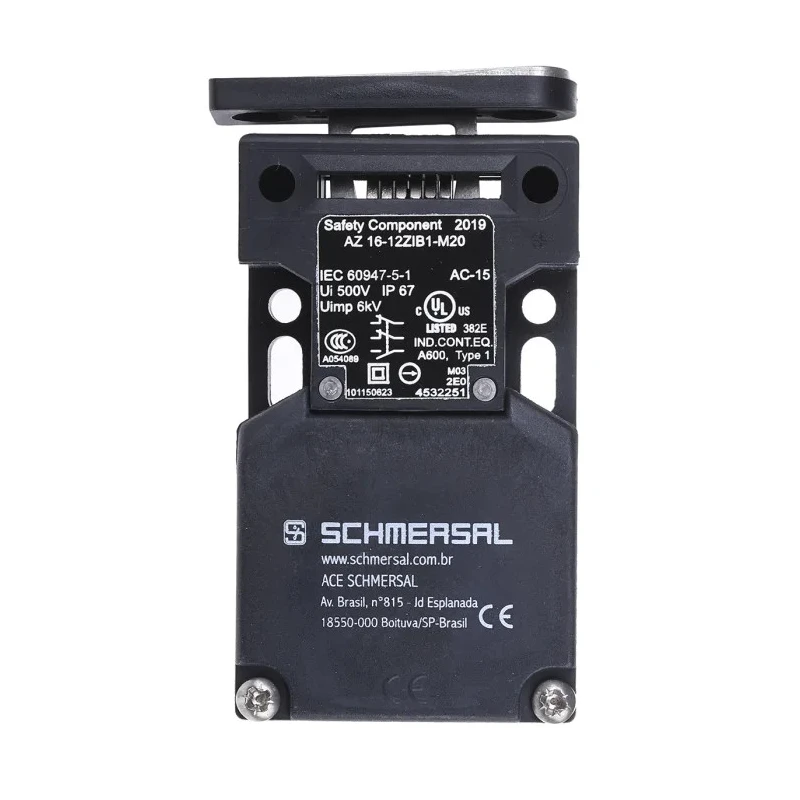

Schmersal AZ16 Safety Interlock Switch Keyed, Fibreglass Reinforced Thermoplastic Housing, IP67, 230V AC, 24V DC
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Schmersal |
| Length | 90mm |
| Model | AZ16 |
| Depth | 30mm |
| IP Rating | IP67 |
| Width | 52mm |
| Housing Material | Fibreglass Reinforced Thermoplastic |
| Series | AZ16 |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -30°C |
| Lock Type | Keyed |
| Standards/Approvals | EAC, RoHS, TUV |
| Lock Style | Keyed |
| Safety Contacts | 1 NO |
| Number of Head Directions | 3 |
| Conduit Entry | M20 |
| CODED ACT.LOCK SWITCHBrand | Schmersal |
Key Features
- Wide operating temperature range from -30°C to 80°C enables use in harsh industrial environments.
- Highly durable IP67-rated housing ensures dust-tight and water-resistant protection.
- Includes a stainless steel actuator suitable for retrofitting existing machinery.
- Supports a maximum voltage rating of 230V AC and 24V DC for versatile electrical compatibility.
- Designed for industrial safety applications in sectors like paper, pharmaceutical, and power generation.
- Equipped with tamper-proof mounting screws for secure installation in any position.
- Easy-to-use screw-in terminal connectors accommodate cables from 0.75 to 2.5mm² diameter.
- Constructed with 1 Normally Open (NO) safety contact ensuring reliable interlock operation.
Product Description
Schmersal AZ16-12ZI-B1-M20 Safety Interlock Switch features a keyed lock style and includes a keyed actuator, housed in robust fibreglass reinforced thermoplastic delivering excellent durability and resistance to corrosion and wear. This safety switch is engineered for industrial automation and safety interlock applications where operator protection is paramount.
The product operates effectively across a wide temperature range from -30°C to 80°C and boasts an IP67 ingress protection rating, rendering it dust-tight and resistant to water. Its compact form factor with 90mm length, 52mm width, and 30mm depth allows flexible installation options. The switch includes a single normally open (NO) safety contact and supports an M20 conduit entry.
Designed for use in demanding environments such as paper and pulp mills, medical and pharmaceutical industries, and power generation plants, this switch provides reliable machine guard monitoring and control functions. It includes tamper-proof mounting screws and screw-in terminal connectors accommodating cable diameters from 0.75 to 2.5mm², facilitating durable and safe wiring without heat.
Wide operating temperature range of -30°C to 80°C suits harsh industrial conditions. IP67 rating ensures protection against dust and water ingress. Fibreglass reinforced thermoplastic housing for corrosion resistance and durability.
Includes keyed actuator and 1 NO safety contact for secure interlock operation. Compact dimensions enable versatile mounting in machinery. Supports 230V AC and 24V DC voltage ratings for electrical flexibility. Supplied with tamper-proof screws and screw-in terminals for secure installation.
Suitable for applications in paper mills, pharmaceuticals, and power generation sectors. Meets standards including EAC, RoHS, and TUV for quality assurance.
This Schmersal AZ16 series Safety Interlock Switch represents a robust solution for industrial machine safety, ensuring operator protection while maintaining system efficiency. Explore more safety interlock products and Schmersal offerings on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Schmersal AZ16 Safety Interlock Switch operates effectively within a temperature range of -30°C to 80°C, making it suitable for harsh industrial environments.
This switch has an IP67 ingress protection rating, ensuring it is dust-tight and resistant to water ingress.
The dimensions of this model are 90mm in length, 52mm in width, and 30mm in depth, allowing for flexible installation options.
It is constructed with fibreglass reinforced thermoplastic, which provides excellent durability and resistance to corrosion and wear.
The switch supports a maximum voltage rating of 230V AC and 24V DC, offering versatile electrical compatibility.
This model includes one normally open (NO) safety contact, ensuring reliable interlock operation.
It includes a keyed actuator, which is essential for its keyed lock style operation.
The switch is equipped with tamper-proof mounting screws, ensuring secure installation in any position.
The AZ16 safety interlock switch supports an M20 conduit entry, facilitating easy wiring connections.
It is designed for industrial safety applications in sectors such as paper, pharmaceuticals, and power generation.
This model meets standards including EAC, RoHS, and TUV for quality assurance.
