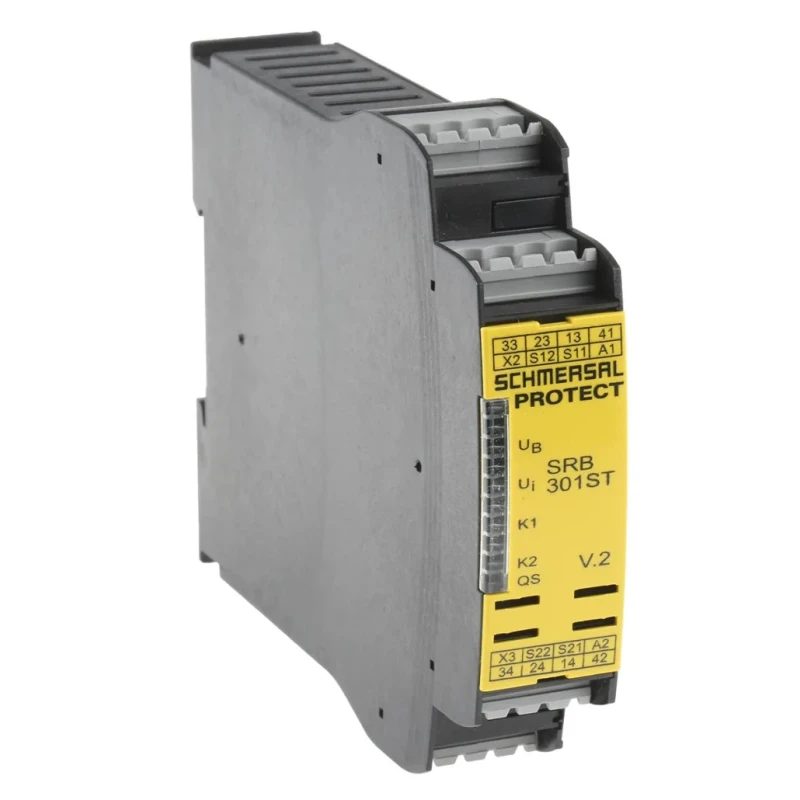

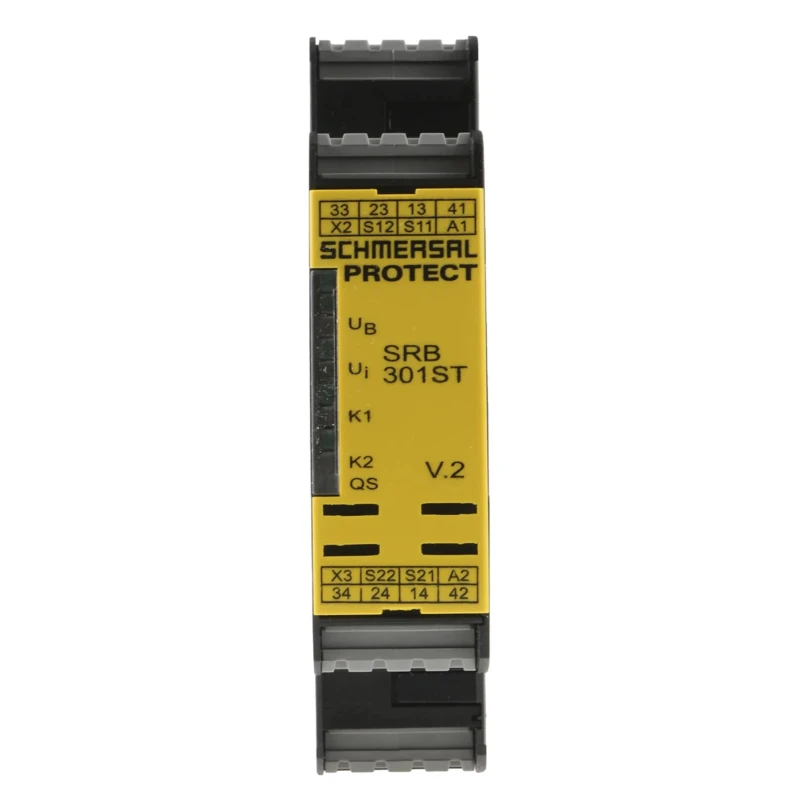

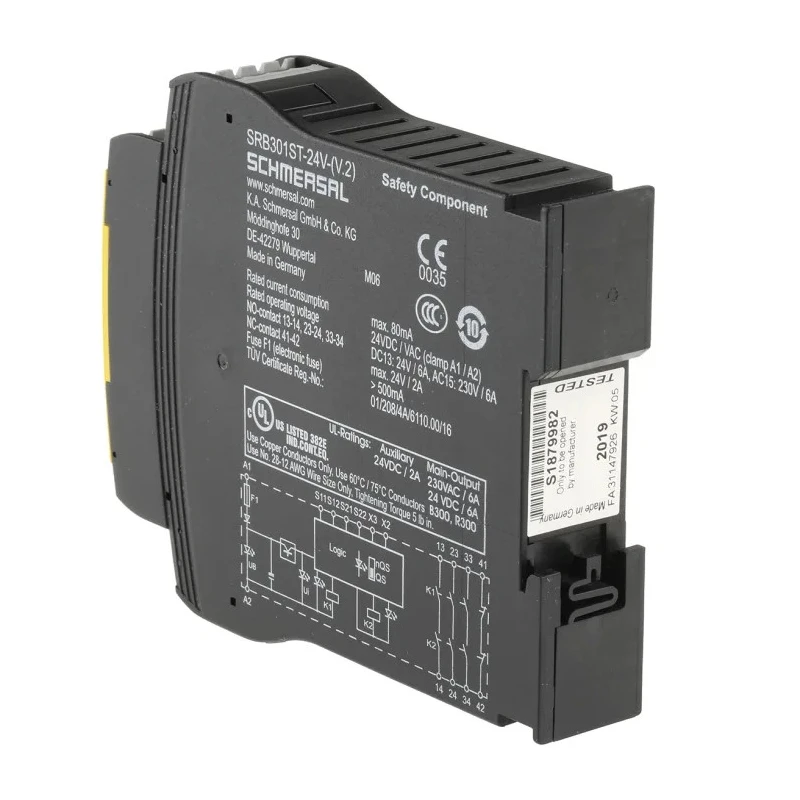

Schmersal 24V AC/DC Safety Relay with 3 Safety Contacts and 1 Auxiliary Contact SRB301ST-24V-(V.2)
Specifications
| Country of Origin | Germany |
|---|---|
| Power Consumption | 2.1W |
| Brand | Schmersal |
| Height | 121mm |
| Length | 100mm |
| Model | SRB301ST-24V-(V.2) |
| IP Rating | IP40 |
| Width | 22.5mm |
| Mount Type | Snap-On |
| Series | SRB 301ST |
| Maximum Operating Temperature | 45°C |
| Minimum Operating Temperature | -25°C |
| Safety Category | 3 |
| Terminal type | Screw |
| Standards/Approvals | IEC/EN |
| Reset Method | Automatic |
| Coil Voltage | 24V ac/dc |
| Switching DC Voltage | 24V dc |
| Switching AC Voltage | 250V ac |
| Contact Current | 4A |
| Safety Contacts | 3 |
| Number of Auxiliary Contacts | 1 |
Key Features
- Operates at 24V AC/DC coil voltage for versatile power application.
- Snap-on mount type allows easy and secure installation.
- Rated IP40 protection ensuring safety from solid intrusion.
- Supports switching of 24V DC and 250V AC on contacts.
- Power consumption is 2.1W for energy efficient operation.
- Automatic reset method enhances convenience and equipment uptime.
- Meets IEC/EN safety standards for industrial machinery safety.
- Temperature range from -25°C to 45°C for broad environmental use.
Product Description
Schmersal SRB301ST-24V-(V.2) is a multi-functional safety relay designed for industrial applications requiring safe monitoring and control of safety devices. Equipped with 3 safety contacts and 1 auxiliary contact, it supports automatic reset and complies with IEC/EN 60204-1 safety standards.
The device operates on a 24V AC/DC coil voltage and provides switching capability for 24V DC and 250V AC loads. Its snap-on mounting system and compact dimensions (100mm length, 121mm height, 22.5mm width) facilitate easy installation in control panels.
The relay features an IP40 rated enclosure made from robust thermoplastic material with ventilation to prevent device overheating. It offers reliable contact current of 4A and operates efficiently with a power consumption of only 2.1W.
Designed for safety applications such as emergency stop monitoring, safety mats, light curtains, and safety sensors, the SRB301ST ensures protection in industrial guard systems. The device includes a transparent front cover with a sealable label area to prevent unauthorized configuration changes and to aid in maintenance and troubleshooting.
Operating temperature ranges from -25°C to 45°C, enabling use in varied industrial environments. The relay series is certified for safety category 3 and adheres to international electrotechnical safety standards.
Operates reliably within wide temperature ranges and industrial conditions. Compact, ventilated thermoplastic housing ensures durability and device longevity. Clear LED indicators enable quick status checking and troubleshooting.
Automatic reset function and selectable single or two-channel evaluation increase operational flexibility. Meets international safety approvals including IEC/EN standards.
This Schmersal safety relay is manufactured in Germany and is suitable for industrial, manufacturing, automation, and safety control applications. For more Safety Relay products and industrial automation solutions, browse EnvMart's comprehensive catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Schmersal SRB301ST-24V-(V.2) operates at a coil voltage of 24V AC/DC.
This safety relay is equipped with 3 safety contacts and 1 auxiliary contact.
The power consumption of this model is 2.1W, making it energy efficient.
The dimensions of this safety relay are 100mm in length, 121mm in height, and 22.5mm in width.
This model has an IP40 rating, providing protection against solid intrusion.
The operating temperature range for the SRB301ST-24V-(V.2) is from -25°C to 45°C.
It features a snap-on mounting type for easy and secure installation.
This device meets IEC/EN safety standards, ensuring it is suitable for industrial applications.
It supports switching of 24V DC and 250V AC on its contacts.
The contact current rating for this safety relay is 4A.
This model utilizes an automatic reset method, enhancing convenience and equipment uptime.
This safety relay is manufactured in Germany.
