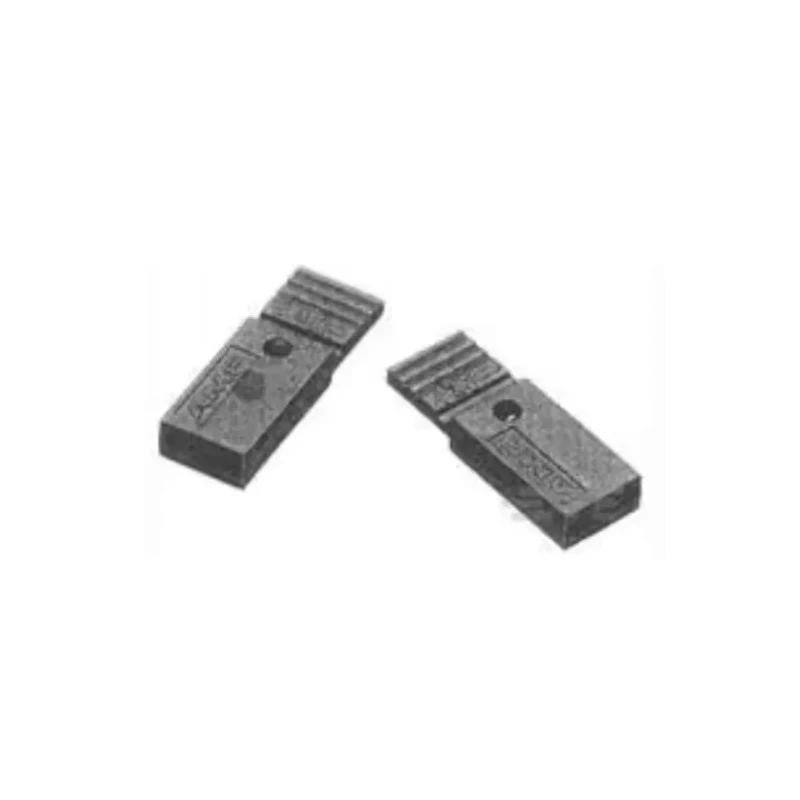

TE Connectivity AMPMODU Shunt Straight Female Open Top 2 Way 1 Row 2.54 mm Pitch 1-881545-4

TE Connectivity model 1-881545-4 is a precision-engineered AMPMODU shunt featuring a straight female open top design with 2 positions arranged in 1 row on a 2.54 mm pitch, tailored for reliable low-voltage PCB connections.

Constructed from durable black UL 94V-0 rated polyester housing, this shunt supports a current rating of 3A and a voltage rating of 250V, making it suitable for a wide range of electronic applications across industrial, manufacturing, and research environments.

The contacts are crafted from phosphor bronze material, plated with tin over nickel to enhance corrosion resistance and electrical conductivity, contributing to long-lasting, stable operation.

The open top layout facilitates easy manual insertion and removal, ideal for applications requiring frequent reconfiguration or testing. The compact size, with approximate length of 5.08 mm, depth of 5.81 mm, and width of 2.5 mm, allows efficient use of limited board space in high-density electronic assemblies.

This component complies with standard industry pitch spacing of 2.54 mm, enabling compatibility with standard connectors in electronic circuits.

Suitable for industrial electronics, telecommunications, instrumentation, and PCB assembly sectors, this shunt acts as a reliable jumper for routing electrical signals within devices.

Designed with a low profile and black UL 94V-0 polyester thermoplastic housing for durability. Features 2 contacts with 2.54 mm pitch, suitable for standard PCB connector applications. Supports a maximum current of 3A and voltage rating of 250V for typical electronic circuits.

Constructed from phosphor bronze contacts plated with tin over nickel for excellent conductivity and corrosion resistance. Offers a straight orientation female connector with open top design enabling easy installation and removal.

Compact dimensions approximately 5.08 mm length, 5.81 mm depth, and 2.5 mm width for space-saving PCB layout. Maximum contact resistance rated at 15 milliohms ensuring minimal power loss during operation. Explore EnvMart categories for Jumpers & Shunts and other high-quality PCB connectors to enhance your electronic assembly workflows.
