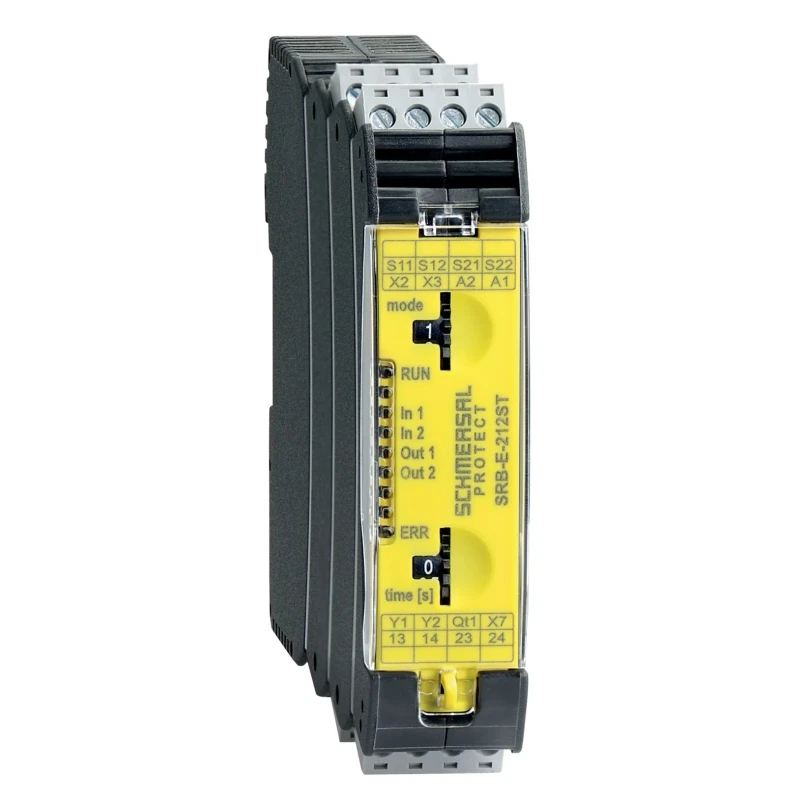

Schmersal 24V DC Safety Relay, 2 Safety Contacts, 3W Power, DIN Rail Mount SRB-E-212ST

Schmersal SRB-E-212ST is a high-quality 24V DC safety relay designed to protect industrial machines by detecting electrical faults and stopping equipment operation promptly. It features 2 safety contacts (3NO/2NC configuration) and consumes 3 watts of power, balancing performance and energy efficiency.

The relay includes an automatic reset method, simplifying the user experience by reducing the need for manual intervention. Its compact size, measuring just 22.5 mm in length, 115 mm in width, and 98 mm in height, enables flexible installation on DIN rails even in limited spaces.

Operating safely within an extended temperature range from -25°C up to 60°C, it suits a variety of industrial environments. The device offers IP20, IP40, and IP54 ingress protection levels, safeguarding against dust and water spray, ensuring dependable service in challenging conditions.

Schmersal SRB-E-212ST supports a contact current of 6A and switching voltages of 24V DC and up to 250V AC, meeting diverse switching requirements. Certified to rigorous standards such as EN 60947-5-1, EN ISO 13849-1, IEC/EN 60204-1, IEC/EN 62061, and IEC 61508, this relay ensures compliance with key safety regulations.

Typical applications include safety switches, light grids, pressure-sensitive mats, manufacturing equipment, and industrial processes. The durable glass fibre-reinforced thermoplastic housing provides heat and impact resistance for long operational life.

Schmersal's SRB-E Series safety relays are essential components for enhancing machine safety, minimizing damage risks, and preventing downtime in industrial environments. Automatic reset method improves usability. DIN rail mount for easy installation.

Wide temperature range from -25°C to 60°C. Multiple IP ratings ensure protection against dust and water. Certified to international safety standards. Compact dimensions for space efficiency. Supports 6A contact current capability.

Robust IP54 protection against harsh conditions. Explore more Safety Relays by Schmersal in the Electronics & Electricals category of EnvMart for industrial safety solutions.
