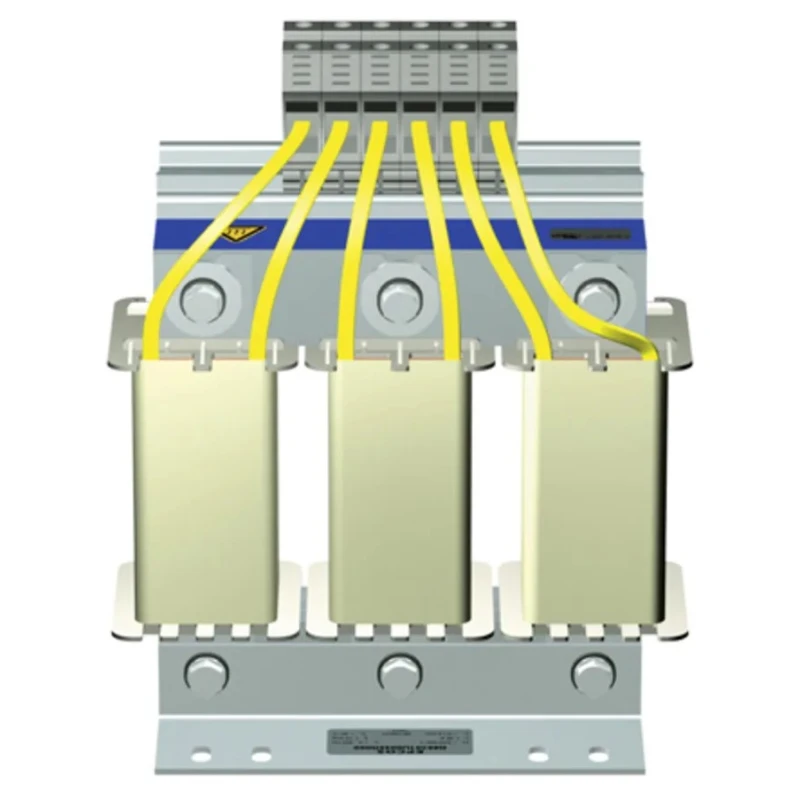

TDK 3-Phase Chassis Mount EMC Filter 112A 520V AC 50Hz 60Hz Terminal Block B86301U0112R000

Free Delivery in India | Lowest Global Shipping Charges

TDK 3-Phase Chassis Mount EMC Filter 112A 520V AC 50Hz 60Hz Terminal Block B86301U0112R000



Category EMC Filter Brand TDK Condition New

Specifications

Country of Origin	Hungary
Brand	TDK
Height	210mm
Length	180mm
Model	B86301U0112R000
Depth	150mm
Packaging	Bulk
Mount Type	Chassis Mount
Operating Frequency	50, 60Hz
Series	B86301U
Maximum Operating Temperature	100°C
Number Of Stages	1
Resistance	1.6mΩ
Minimum Operating Temperature	-25°C
Maximum Current	112A
Number of Phases	3
Maximum Voltage	520V ac
Inductance	50μH
Standards/Approvals	cURus, UL Insulation System Class 155
Termination Style	Terminal Block
Power Loss	75W

Key Features

Designed for chassis mounting with terminal block termination style.
Operates reliably within temperature range from -25°C to 100°C.
Provides inductance of 50μH ensuring superior dv/dt output reactor function.
Compact dimensions of 180mm length, 150mm depth, and 210mm height.
Constructed to reduce electrical noise and voltage stress in motor drive applications.
Meets cURus and UL Insulation System Class 155 standards ensuring safety and quality.
Power loss rating is 75W, optimized for efficient operation.
Ideal use in frequency converters for HVAC systems, pumps, elevators, and conveyor systems.

Product Description

TDK B86301U0112R000 3-Phase Chassis Mount EMC Filter is engineered for high-performance applications requiring 112A maximum current and 520V AC voltage at 50Hz and 60Hz operating frequencies. This device features a terminal block termination style and is designed for chassis mounting in compact industrial setups.

The unit is built to operate effectively in temperatures ranging from -25°C to 100°C, supporting durability under harsh conditions. It offers an inductance of 50μH which contributes to reduced voltage stress and effective dv/dt output reactor performance, critical for protecting motor cables and enhancing motor longevity.

Physically the filter measures 180mm in length, 150mm in depth, and 210mm in height, ensuring it is space-efficient while maintaining functionality. It delivers power loss of 75W and resistance of 1.6mΩ, reflecting efficient energy use and minimized heat generation during operation.

Compliant with cURus and UL insulation standards (Class 155), this EMC filter sustains industrial safety and reliability. It is manufactured in Hungary, underscoring European manufacturing quality standards.

Applications for the B86301U series include frequency converters for motor drives in traction, conveyor, HVAC systems, pumps, and elevator industries. These filters ensure the reduction of electromagnetic interference and protect sensitive equipment from voltage spikes and noise.

Designed for chassis mounting with terminal block termination style. Supports maximum current of 112A and voltage of 520V AC. Operational across a broad temperature range from -25°C to 100°C. Compact dimensions ideal for space-limited installations.

Complies with cURus and UL insulation standards, ensuring reliability and safety. Power loss optimized at 75W for efficient energy consumption. Manufactured in Hungary adhering to high quality craftsmanship. Reduces voltage stress and dv/dt noise protecting motor drives.

Suitable for industrial HVAC, pump, elevator, and conveyor systems.

This EMC filter is a durable, efficient solution for modern industrial and electronic applications requiring robust line filtering with high current and voltage specifications. Explore more EMC Filters and components on EnvMart for enhanced electrical system performance.
