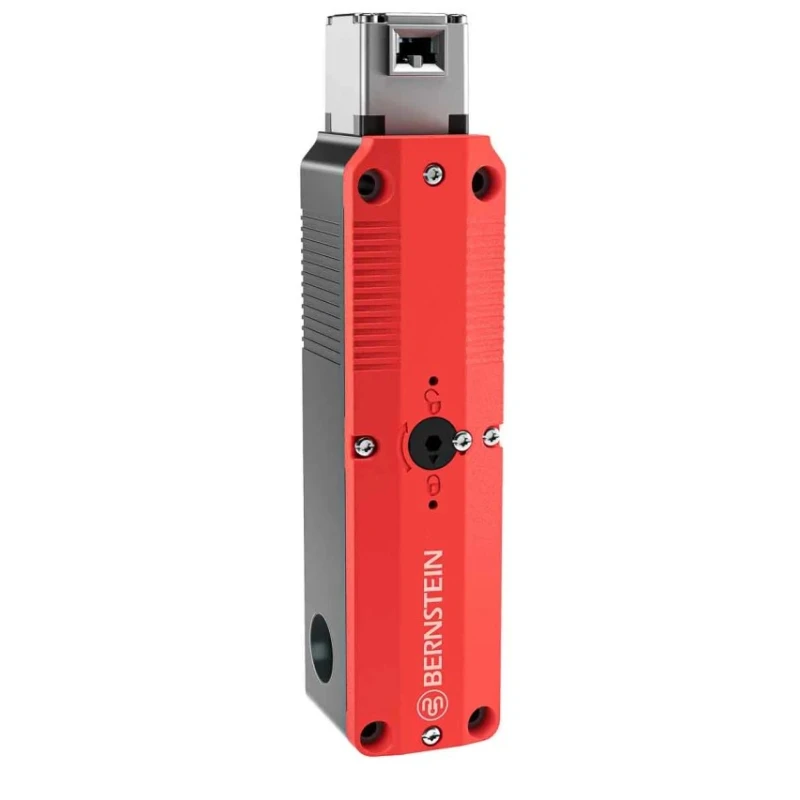

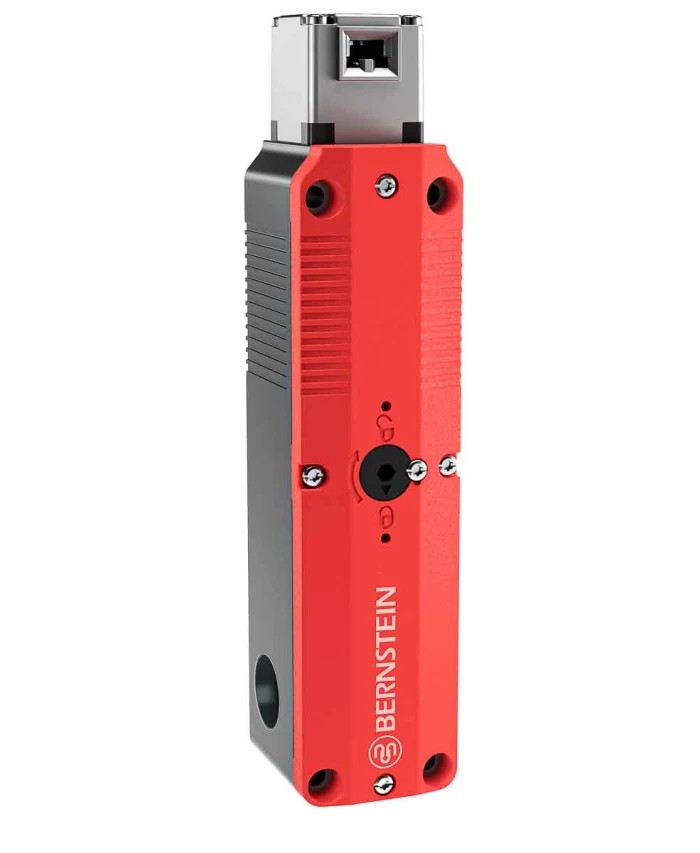

Bernstein AG SLC Safety Interlock Switch Actuator Key Lock Type Fibreglass Reinforced Thermoplastic Housing 240V 6018200016

Bernstein AG 6018200016 Safety Interlock Switch Actuator is a high-quality safety component featuring a key lock type mechanism and fibreglass reinforced thermoplastic housing. This actuator is designed for usage in industrial automation, electrical safety, and machinery guarding applications where secure and reliable safety interlocking is paramount.

The housing is a hybrid of metal and plastic materials, combining lightweight construction with mechanical robustness. It integrates a flexible contact assembly, manual release function, and a fail-safe guard locking system to prevent unauthorized access and ensure operational safety.

The switch supports a rated operational voltage Ue of 240 V AC / 24 V DC with a switch contact current of 1.5 A, making it suitable for controlling safety circuits. The unit operates effectively across an ambient temperature range from -25 °C to +55 °C and is rated IP67, ensuring protection against dust and water ingress in harsh environments.

Its compact physical dimensions (192 mm length, 42 mm width, and 44 mm depth) and rotatable head with multiple actuating positions enable flexible installation in varied safety system layouts. The component meets internationally recognized certifications and standards including UL, DIN, and CSA, affirming its quality and safety compliance.

The solenoid operating voltages include 24 V AC/DC, 110 V AC, and 230 V AC options to suit different electrical system requirements. The switch’s robust design provides a latching force of 1500 N and supports a safety data B10D rating of 2 million cycles, indicating durability and long service life.

This safety interlock switch actuator is ideal for industrial, manufacturing, automation, and electrical safety applications where reliable guarding and fault prevention are critical. It contributes to compliance with safety regulations while facilitating efficient machine operation and maintenance.

Explore more Safety Interlock Switches and related industrial safety equipment at EnvMart to suit your application needs. Includes actuator with key lock type for secure operation. Fibreglass reinforced thermoplastic housing offers lightweight yet robust construction.

Rated operational voltage of 240 V AC and switch contact current of 1.5 A. Features integrated manual release and fail-safe guard locking system. Rated IP67 for high resistance to dust and water ingress. Operating ambient temperature from -25 °C to +55 °C suitable for varied environments.

Compact dimensions: length 192 mm, width 42 mm, depth 44 mm. Complies with UL, DIN, and CSA standards ensuring reliable safety performance. Solenoid operating voltage options of 24 V AC/DC, 110 V AC, or 230 V AC available.

Designed with a rotatable head and five actuating positions for installation flexibility.
