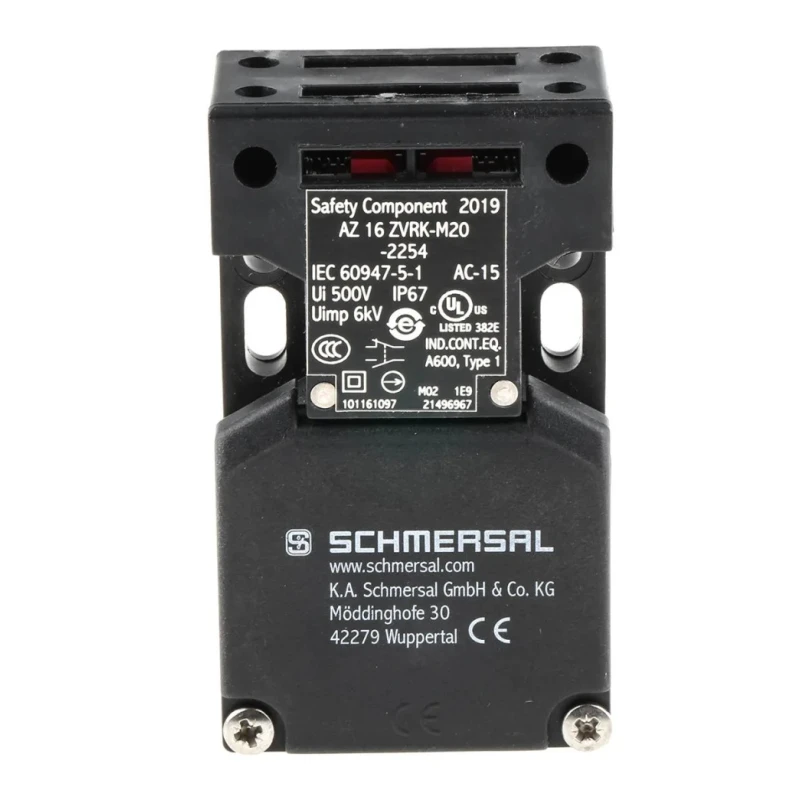

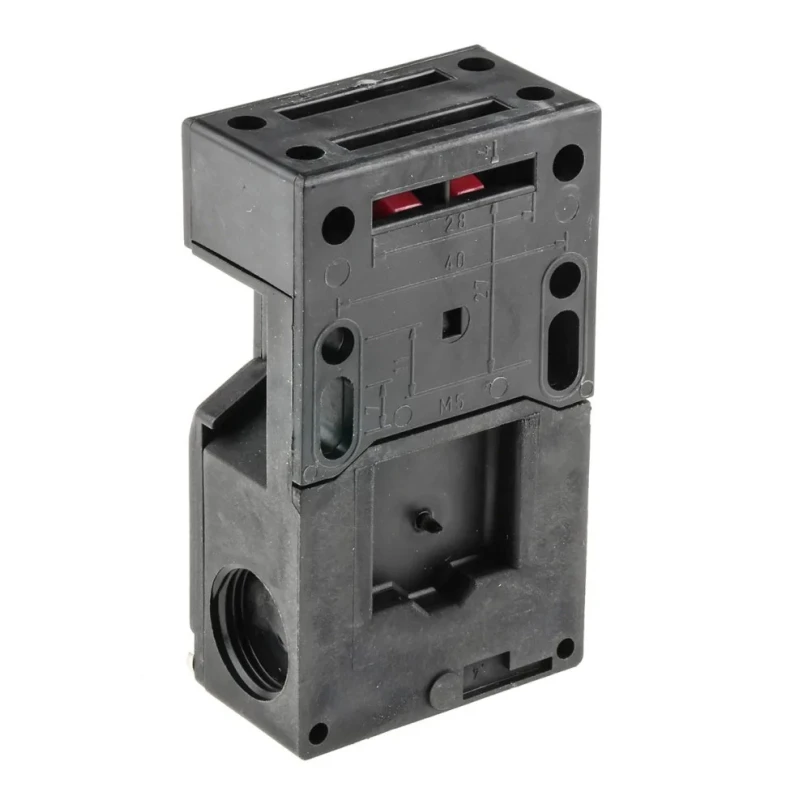

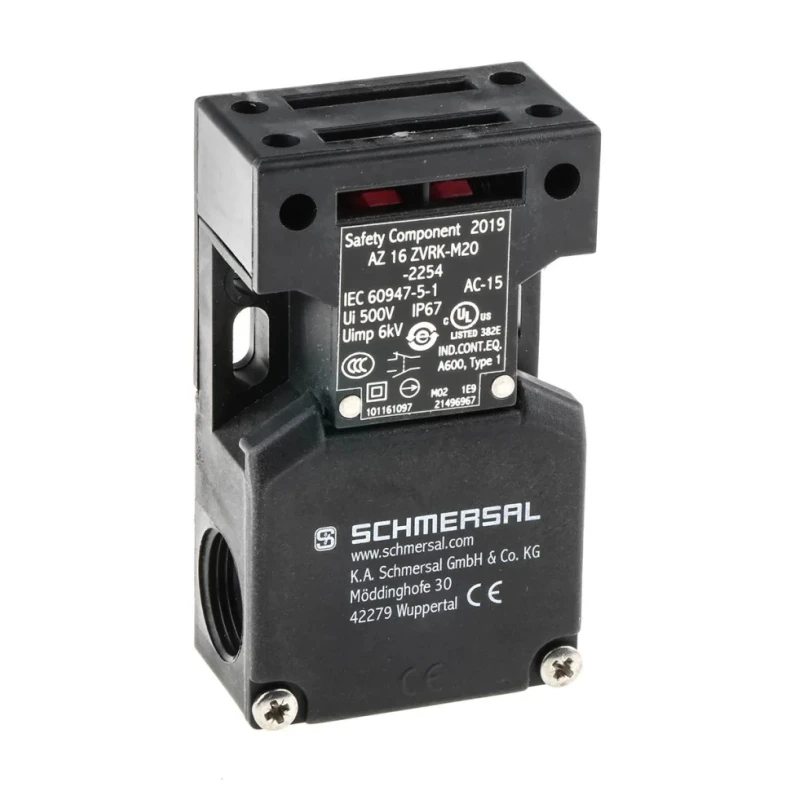

Schmersal Safety Interlock Switch Keyed Fibreglass Reinforced Thermoplastic IP67 230V AC 4A AZ16

Schmersal AZ16ZVRK-M20-2254 Safety Interlock Switch is a keyed interlock device constructed with a fibreglass reinforced thermoplastic housing, providing excellent durability and resistance to environmental stresses. Rated IP67, it offers full protection against dust and water ingress, making it suitable for challenging industrial and automation applications.

This safety interlock switch automatically detects risk situations and interrupts hazardous operations, improving operator safety and machine protection. The galvanically separated contacts prevent stray current flow, ensuring enhanced safety integrity. It is designed with tamper-proof screws for added security.

The AZ16 series switch supports an AC contact voltage rating of 230V and a switch contact current of 4A, suitable for various industrial control systems. Its robust design allows operation in temperature ranges from -30°C to 80°C and permits three directions of head orientation for flexible installation.

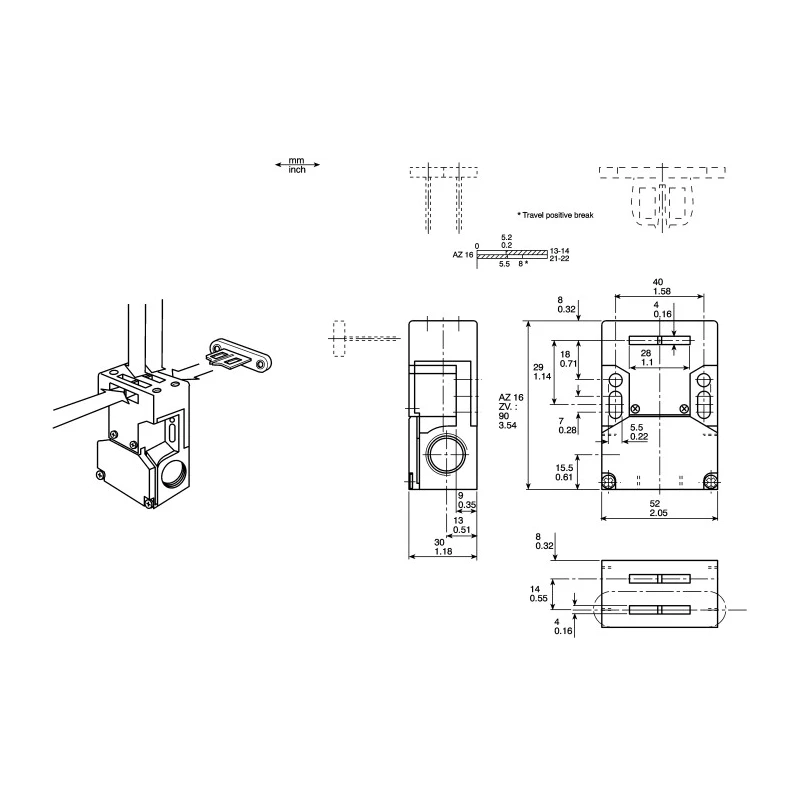

Compact dimensions of 90mm length, 52mm width, and 30mm depth with a conduit entry of M20 facilitate integration into existing equipment. Compliance with IEC, UL, and CSA standards attests to its safety and quality.

Ideal applications include robotics, mining and minerals processing, power generation, and materials handling industries where safety interlock and access control are critical. Installation ease is supported by a large wiring compartment and clear contact labelling in the wiring area. Users should ensure the use of suitable cable glands for sealing after wiring.

Keyed lock style ensures secure access control and safety interlock functionality. Housing made of fibreglass reinforced thermoplastic provides durability and resistance to harsh environments. IP67 rated housing offers complete protection against dust and water ingress.

Switch supports 230V AC contact voltage and 4A switch contact current. Suitable for use in demanding industrial environments with operating temperatures from -30°C to 80°C. Features tamper-proof screws to prevent unauthorized removal.

Multiple coding levels reduce risk of unauthorized adjustments. Compliance with IEC, UL, and CSA standards ensures reliable safety performance. Compact dimensions with length 90mm, width 52mm, depth 30mm and conduit entry M20.

Designed for applications including robotics, mining, power generation, and materials handling. Explore the robust range of Schmersal Safety Interlock Switches on EnvMart for reliable industrial safety solutions.
