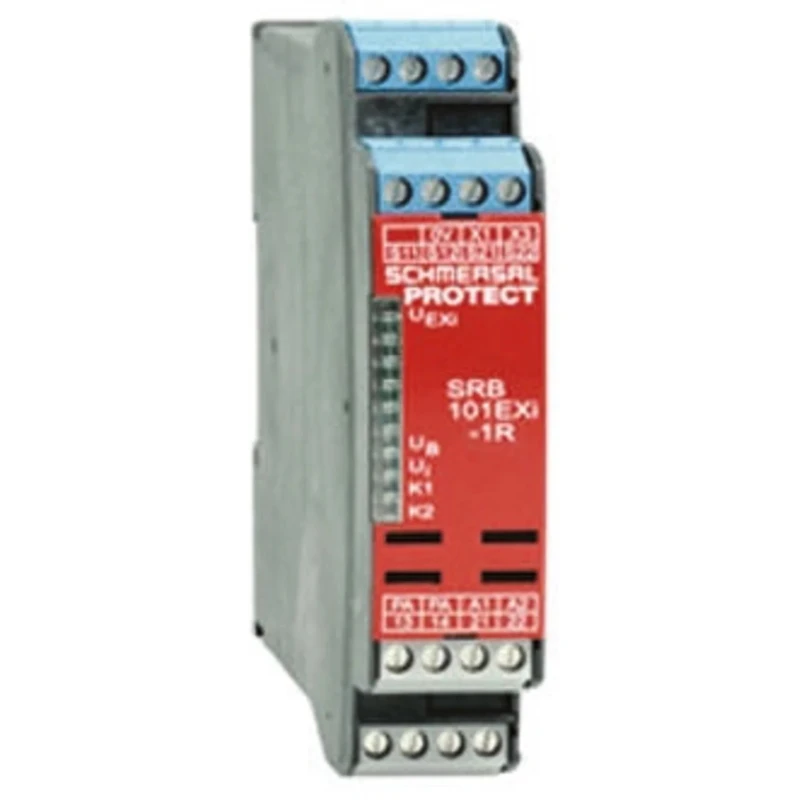

Schmersal 24V DC Safety Relay with 1 Safety Contact and 1 Auxiliary Contact SRB101EXI-1R
Specifications
| Country of Origin | Germany |
|---|---|
| Power Consumption | 2W |
| Brand | Schmersal |
| Height | 121mm |
| Length | 100mm |
| Model | SRB101EXI-1R |
| IP Rating | IP40 |
| Width | 22.5mm |
| Mount Type | Snap-On |
| Series | SRB 101Exi |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Safety Category | 3 |
| Terminal type | Screw |
| Hazardous Area Certification | ATEX |
| Standards/Approvals | IEC/EN |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 698-8694Brand: SchmersalManufacturers Part No.: SRB101EXI-1R |
| Reset Method | Monitored |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 24V dc |
| Switching AC Voltage | 230V ac |
| Safety Contacts | 1 |
| Number of Auxiliary Contacts | 1 |
Key Features
- Dual-channel design ensures reliable safety monitoring.
- Operates at 24V DC coil voltage with low power consumption of 2W.
- Includes cross-circuit and wire breakage detection for equipment protection.
- IP40 rated with a wide operating temperature range of -25°C to 60°C for harsh environments.
- Compact dimensions of 100mm length, 22.5mm width, and 121mm height for space-saving installation.
- Snap-on mount type for easy DIN rail installation.
- ATEX certified for safe use in explosive atmospheres.
- Glass fibre-reinforced thermoplastic housing offers heat, impact, and corrosion resistance.
Product Description
Schmersal SRB101EXI-1R is a high-performance safety relay operating at 24V DC with 1 safety contact and 1 auxiliary contact, suitable for industrial automation systems and hazardous environments such as oil and gas industries. The relay is designed with advanced features like cross-circuit and wire breakage detection to ensure machinery protection and safe operation.
This model is part of the SRB 101Exi series and consumes only 2 watts of power, providing energy-efficient safety control. Its snap-on mounting allows for quick installation on standard DIN rails, while five LED indicators enable simple monitoring and troubleshooting of the relay status.
Rated IP40, the device can operate reliably in temperatures ranging from -25°C to 60°C. The robust glass fibre-reinforced thermoplastic housing delivers resistance against heat, impact, and corrosion, making it suitable for harsh industrial applications.
The product is ATEX certified, meeting stringent safety standards for hazardous areas, ensuring compliance with IEC/EN standards and safety category 3 requirements for critical safety functions.
Dual-channel safety relay for reliable machine safety. Low power consumption for efficient performance. Monitored reset method improves operational safety. Compact and durable construction suitable for industrial environments.
Five LEDs enhance diagnostics and maintenance. Snap-on mount for easy and fast installation. ATEX certification for use in explosive atmospheres. Wide temperature range and IP40 protection.
This relay is ideal for industrial automation, safety systems, and applications in hazardous locations such as oil and gas industries, helping to monitor and protect equipment effectively. The compact size minimizes space requirements, and the relay provides long mechanical life and energy-efficient operation.
Explore EnvMart categories for more Schmersal industrial automation products and Safety Relays optimized for demanding operational environments.
