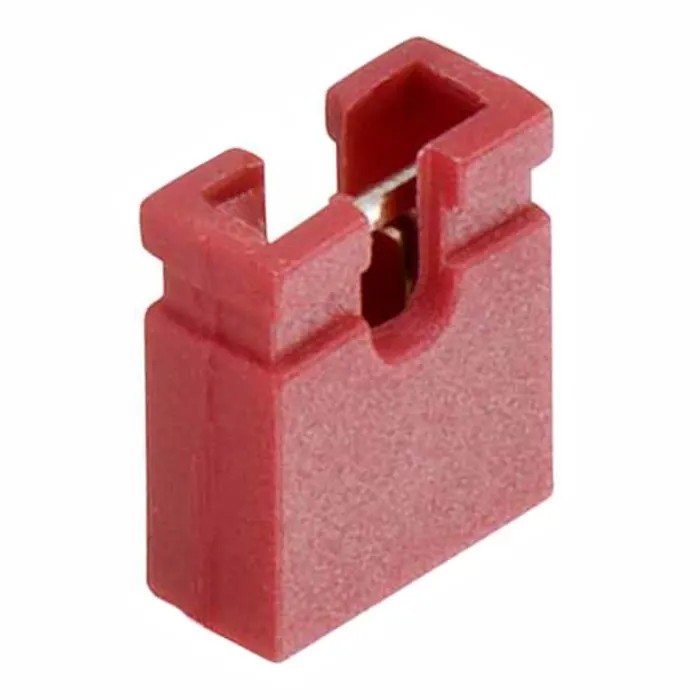

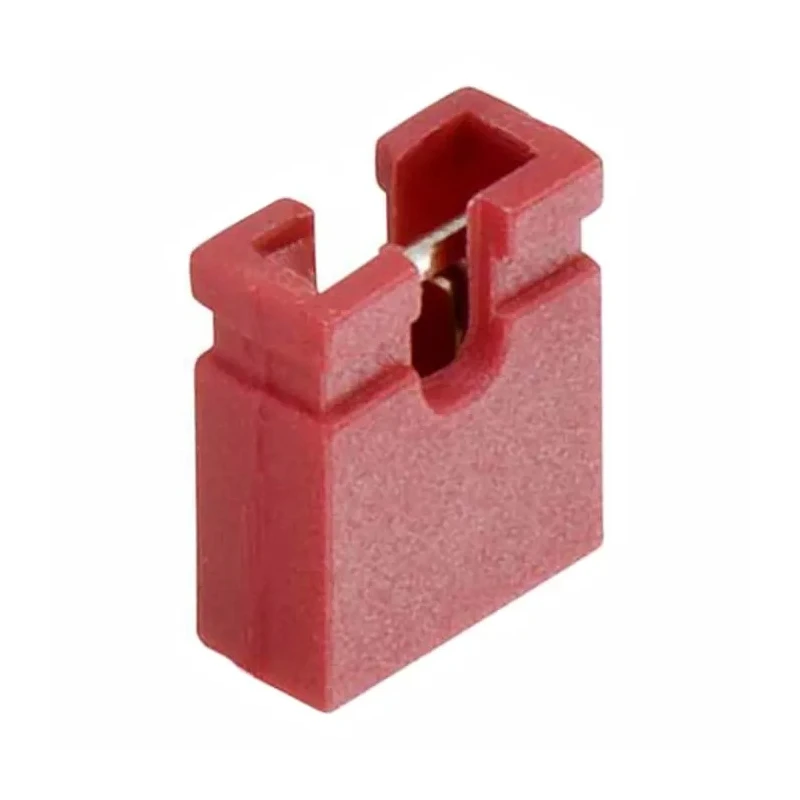

HARWIN Jumper Straight Female Red Jumper Socket 2 Way 1 Row 2.54 mm Pitch M7581-05

HARWIN M7581-05 Jumper Socket is a high-quality, straight female jumper designed for electronic PCB applications requiring a 2-way, 1-row, 2.54 mm pitch connection. Its red polybutylene terephthalate housing provides robust insulation suited for demanding electrical environments. The phosphor bronze contacts, plated with gold, deliver excellent conductivity and durability, making the jumper ideal for repeated mating cycles.

This jumper socket supports a current rating of 3A and a voltage rating of 250V, suitable for various industrial and electronic use cases such as prototype circuit boards, signal routing, and custom wiring configurations. Its compact dimensions of 5 mm length, 6 mm depth, and 2.4 mm width make it suitable for space-constrained PCB designs.

The M7581-05 jumper features a single row and straight orientation to facilitate easy hardware installation and maintain design integrity. With a maximum contact resistance of 20 milliohms, it ensures reliable electrical connections minimizing losses. Although not RoHS certified explicitly in the documentation, its manufacturing origin in Taiwan, Province Of China, aligns with high-quality component standards.

This jumper socket serves applications in industrial, manufacturing, and electronic prototyping environments requiring precise and repeatable jumper connections. Its alternative programming feature replaces DIP switches, simplifying circuit design and adjustments.

The jumper features a red polybutylene terephthalate housing for durable insulation. Phosphor bronze contacts plated with gold ensure low contact resistance and longevity. Designed to operate at a maximum current of 3A and voltage of 250V.

The jumper socket measures 5mm in length, 6mm in depth, and 2.4mm in width. Its compact single row configuration with 2 contacts supports high force and single operation. Offers a maximum contact resistance of 20 milliohms for efficient connectivity.

Manufactured to exacting standards with no certifications provided. Originates from Taiwan, Province Of China, ensuring quality production. Explore more connectors and electronic components in EnvMart's comprehensive catalog to enhance your industrial, laboratory, and manufacturing projects with trusted quality parts.
