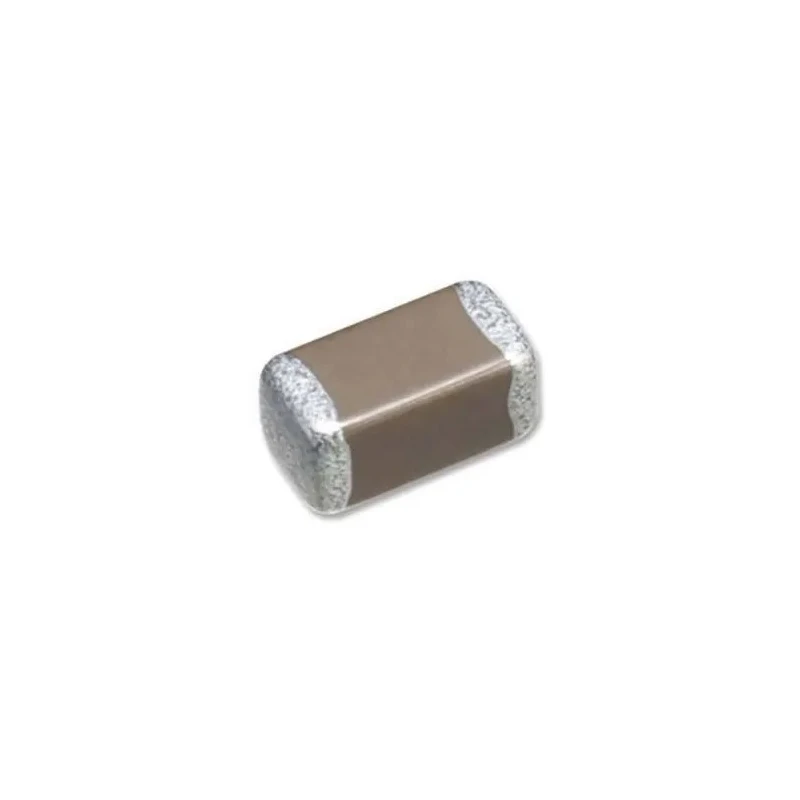

Yageo 20 pF Multilayer Ceramic Capacitor 50V DC ±5% Tolerance Surface Mount 0603 CC0603JRNPO9BN200

The Yageo CC0603JRNPO9BN200 is a 20 pF multilayer ceramic capacitor designed for surface mount technology applications. This capacitor features a rated voltage of 50V DC and a tight tolerance of ±5%, ensuring precision in electronic circuits. It utilizes a stable C0G (NP0) dielectric, which provides low loss and excellent temperature stability, making it suitable for high-frequency filtering and timing applications in industrial, electronic, and telecommunications equipment.

Constructed with a stacked design, this 0603 size capacitor measures 1.6 mm in length, 0.8 mm in width, and 0.8 mm in height, enabling compact circuit board layouts. The terminations are lead-free with a plated tin finish, meeting RoHS compliance and IEC-60384 standards for quality and environmental safety. It is supplied on tape and reel packaging, which accommodates automated pick-and-place manufacturing techniques for efficiency in production environments.

This capacitor operates reliably in temperature ranges from -55°C to 125°C, suitable for harsh industrial and commercial applications. The CC series is a general-purpose line of capacitors by Yageo, designed for reliability and versatility in passive component applications.

Capacitance of 20 pF suitable for high frequency applications. Rated voltage of 50 volts DC ensuring reliable performance. C0G dielectric type provides excellent stability and low loss. Compact 0603 package with length 1.6 mm, width 0.8 mm, and height 0.8 mm for space-saving surface mounting.

Tape and reel packaging facilitates automated assembly processes. Operates in temperature range from -55°C to 125°C for wide environmental conditions. Stacked construction enhances capacitance per unit volume. Lead-free standard termination with plated tin finish compliant with RoHS and IEC-60384 standards.

General purpose capacitor series CC designed for reliability and versatility.

This multilayer ceramic capacitor is widely used in industrial electronics, telecommunications, automotive electronics, instrumentation, and consumer devices requiring stable and precise capacitance. Its environment-resistant design and compliance with international standards make it an ideal choice for demanding applications. Browse more from Yageo capacitors and Multilayer Ceramic Capacitors on EnvMart for quality and performance.
