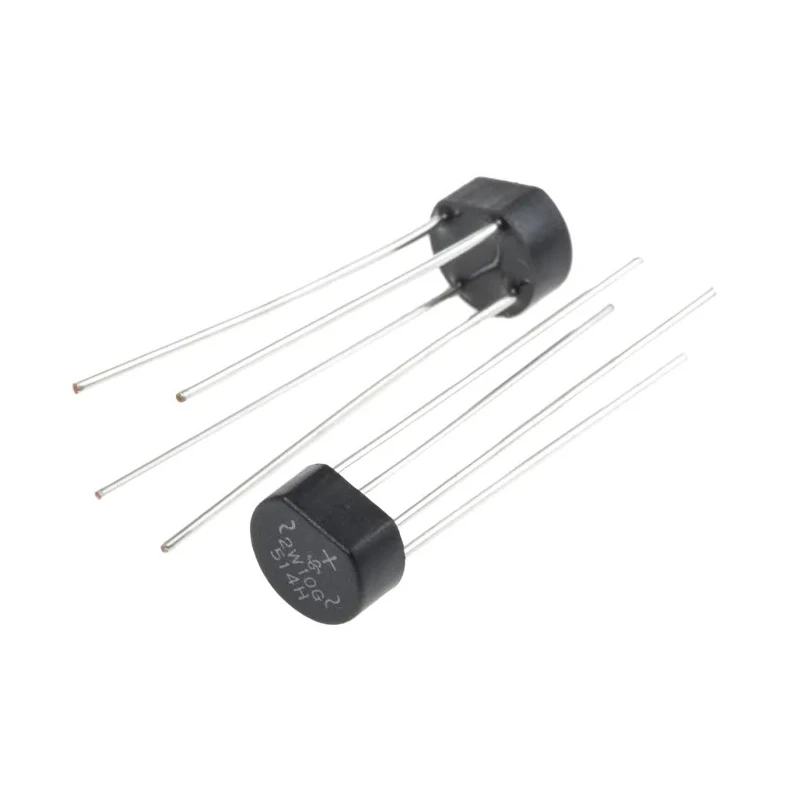

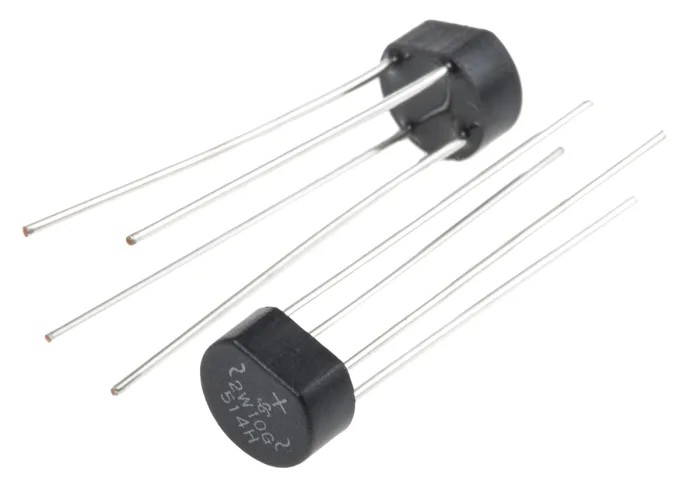

Vishay Bridge Rectifier, 1000 V Peak Reverse Voltage, 60 A Surge Current, 4-Pin Through Hole WOG Package 2W10G-E4/51

Vishay 2W10G-E4/51 Bridge Rectifier is a robust semiconductor component designed for converting alternating current (AC) input into direct current (DC) output through full-wave rectification. It is engineered with a single-phase diode bridge configuration consisting of four pins, making it ideal for through-hole mounting on printed circuit boards.

This bridge rectifier features a peak reverse repetitive voltage (Vrrm) of 1000 V and can handle a peak non-repetitive forward surge current (Ifsm) of 60 A, ensuring it suits high-demand industrial and electronic applications. The package type is WOG, with compact dimensions of 9.86 mm length, 8.84 mm width, and 5.6 mm height.

With a forward current rating of 2 A, low peak forward voltage of 1.1 V, and minimal peak reverse current of 5 μA, the device delivers efficient and reliable performance. The operating temperature range spans from -55°C to a maximum of 150°C, supporting usage in demanding environmental conditions.

The bridge rectifier's wire lead structure facilitates easy and secure through-hole PCB mounting, making it compatible with various electronic assembly processes. Its high dielectric strength case contributes to its electrical insulation integrity, preventing failure under stress.

It complies with UL E54214 approvals, underscoring Vishay’s commitment to quality and safety standards in semiconductor devices. This component is widely used in power supplies, industrial machinery, electronic equipment, and other environments requiring dependable DC power conversion.

Provides full-wave rectification converting AC input into DC output. Designed with wire leads for printed circuit board through hole mounting. Compact WOG package with dimensions 9.86mm length, 8.84mm width, and 5.6mm height.

Operates reliably between -55°C to 150°C maximum operating temperature. Features low peak forward voltage of 1.1 V and minimal reverse current of 5 μA. High dielectric strength case ensures dependable electrical insulation.

Suitable for industrial and electronic semiconductor applications requiring robust power conversion. Conforms to UL E54214 approval for quality assurance.

This Vishay Bridge Rectifier 2W10G-E4/51 is an essential component for engineering professionals seeking a compact, efficient, and durable diode bridge for diverse electrical and industrial applications. Explore the Electronics & Electricals section on EnvMart for more semiconductor devices and Bridge Rectifiers.
