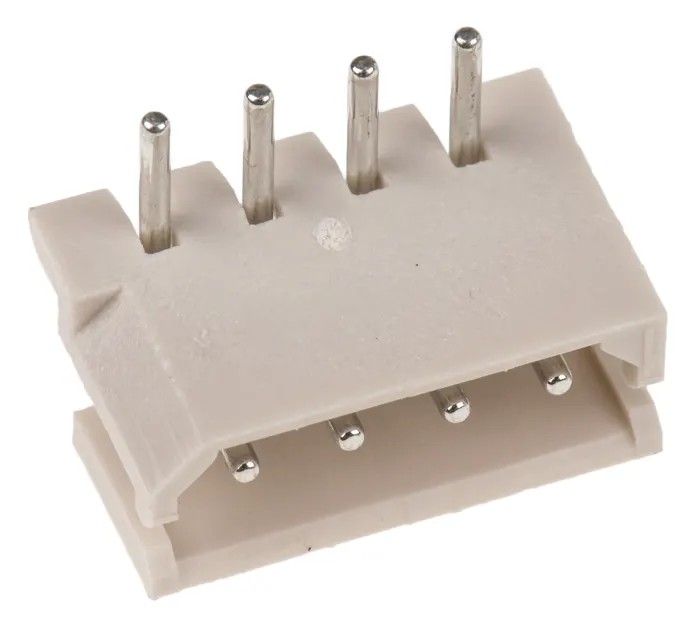

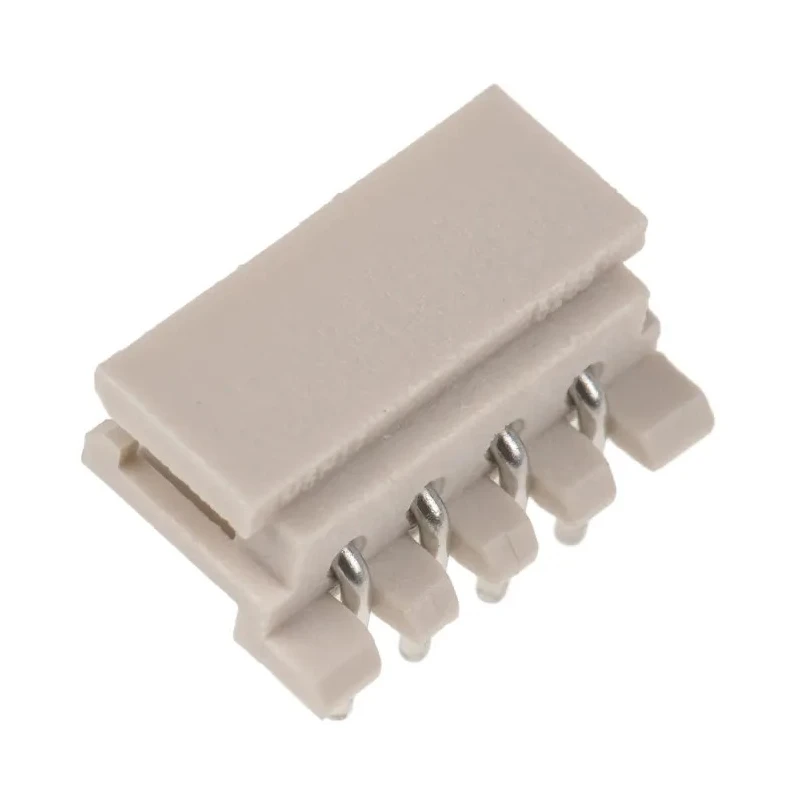

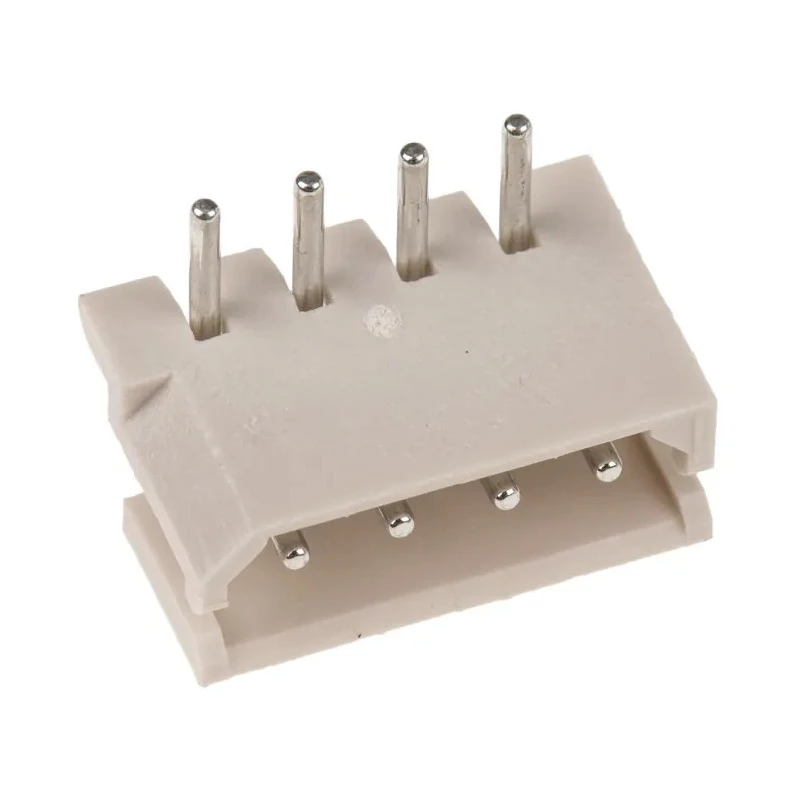

Molex SPOX Series Right Angle Shrouded Through Hole PCB Header, 4 Contacts, 2.5 mm Pitch, 1 Row 22-05-7045

Free Delivery in India | Lowest Global Shipping Charges

Molex SPOX Series Right Angle Shrouded Through Hole PCB Header, 4 Contacts, 2.5 mm Pitch, 1 Row 22-05-7045

Name: Molex SPOX Series Right Angle Shrouded Through Hole PCB Header, 4 Contacts, 2.5 mm Pitch, 1 Row 22-05-7045
Brand: Molex
SKU: 212107
Price: 0.32 USD
Availability: InStock



Category PCB Header Brand Molex Condition New

Specifications

Country of Origin	China
Voltage	250V
Brand	Molex
Orientation	Right Angle
Current	3A
Mount Type	Through Hole
Contact Material	Brass
Series	SPOX
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	2.5mm
Contact Plating	Tin
Number of Contacts	4
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Tail Pin Length	3.5mm

Key Features

Features a low-profile, shrouded design to prevent mismating.
Right angle orientation suitable for wire-to-board connections.
Constructed with brass contact material and tin plating for reliable conductivity.
Supports a voltage rating of 250V and current up to 3A.
Tail pin length is 3.5 mm, with solder termination.
Operating temperature range from -40°C to 105°C ensures durability.
Friction lock mechanism provides secure mating connection.
Polarization prevents incorrect mating and ensures proper installation.

Product Description

Molex 22-05-7045 is a right angle, shrouded through hole PCB header from the SPOX series, featuring 4 contacts with a 2.5 mm pitch and 1 row configuration. Designed for wire-to-board connector systems, this header offers a robust and secure connection thanks to its friction lock and polarization features.

Manufactured with brass contact material finished with tin plating, it supports a maximum current of 3A and voltage of 250V. This connector withstands operating temperatures ranging from -40°C to 105°C, making it suitable for demanding industrial and commercial environments.

The 3.5 mm tail pin length and solder termination allow for reliable PCB mounting, ensuring electrical continuity and mechanical stability. Its low-profile, shrouded design minimizes the risk of mismating, providing reliable performance in various applications.

These headers are widely used across automotive, consumer electronics, industrial machinery, medical devices, data communications, networking, and telecommunications sectors. Their durable construction and thoughtful design facilitate efficient assembly and operational reliability.

Features a low-profile, shrouded design to prevent mismating. Right angle orientation suitable for wire-to-board connections. Constructed with brass contact material and tin plating for reliable conductivity. Supports a voltage rating of 250V and current up to 3A.

Tail pin length is 3.5 mm, with solder termination. Operating temperature range from -40°C to 105°C ensures durability. Friction lock mechanism provides secure mating connection. Polarization prevents incorrect mating and ensures proper installation.

Suitable for automotive, industrial, medical, networking, and telecommunications applications.

This Molex SPOX series connector is a precise, reliable solution for PCB header needs, combining high electrical performance with mechanical robustness. It supports a range of industrial, commercial, and technological uses, advancing dependable electronic assembly.
