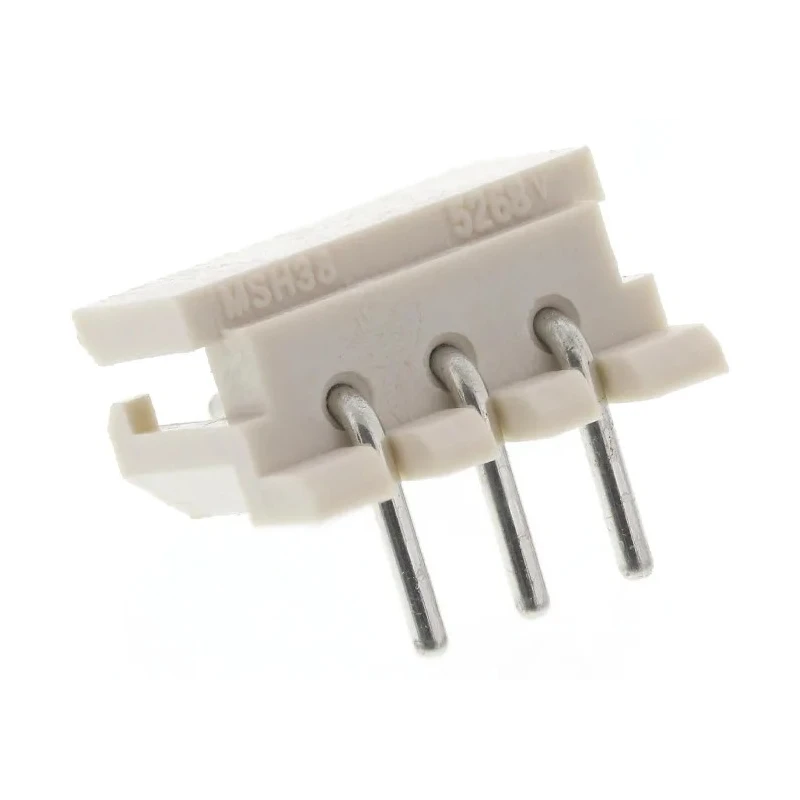

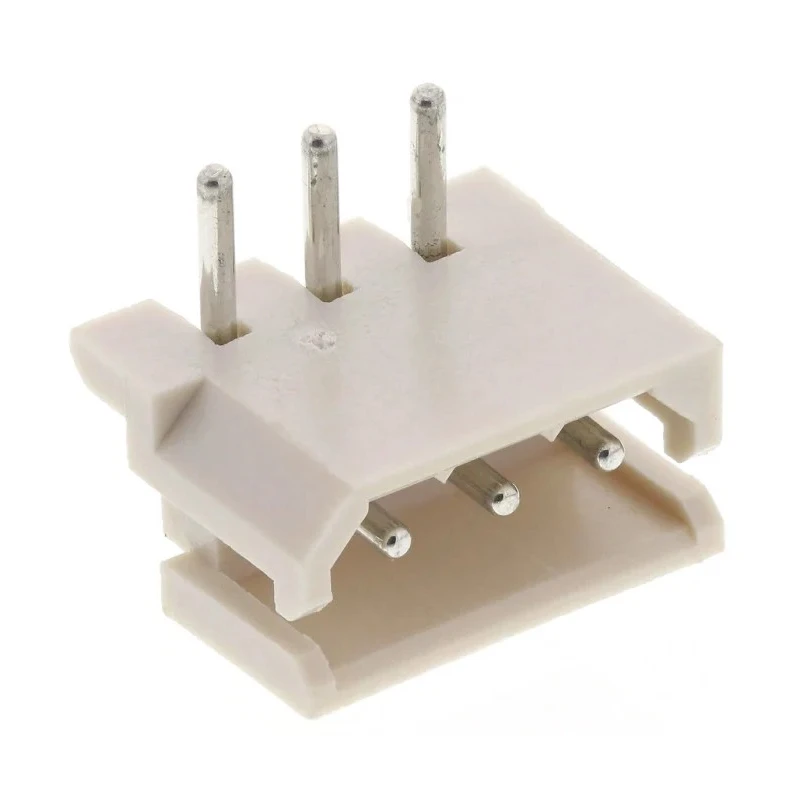

Molex SPOX Series Right Angle Through Hole Shrouded PCB Header, 3 Contacts, 2.5mm Pitch, 1 Row 22-05-7035

Molex 22-05-7035 is a SPOX Series right angle through hole shrouded PCB header designed for wire-to-board connections featuring a 2.5 mm pitch and 3 contacts arranged in a single row. It offers a low profile nylon housing with brass contacts plated in tin and incorporates polarization features to prevent mismating. The friction lock mechanism ensures a secure mating connection making it reliable for demanding industrial and commercial electronic applications.

Rated for 3A current and 250V operation, this PCB header supports through hole mounting and is operable in temperature ranges from -40°C to 105°C. The tail pin length of 3.5 mm allows for secure solder termination on printed circuit boards. With compliance to no specific standards but designed with robust materials, it caters to automotive, industrial, networking, medical, consumer, and telecommunications sectors.

The Molex SPOX series 5267/5268 connectors provide versatility for wire-to-board or wire-wire interconnects and come with versions featuring swaged tails for enhanced PCB retention. This product mates with corresponding Molex SPOX 5264 series crimp housings.

Low profile shrouded design to avoid mismating. Polarization features for correct connector orientation. Friction lock for secure connection retention. Durable nylon housing with corrosion resistant brass/tin contacts. Designed for robust performance in varying industrial environments.

Suitable across multiple application domains including automotive and medical. Through hole mount supports PCB soldering processes. Temperature range ensures stable operation in diverse conditions. 3 contact configuration with 2.5 mm pitch enables compact PCB layout.
