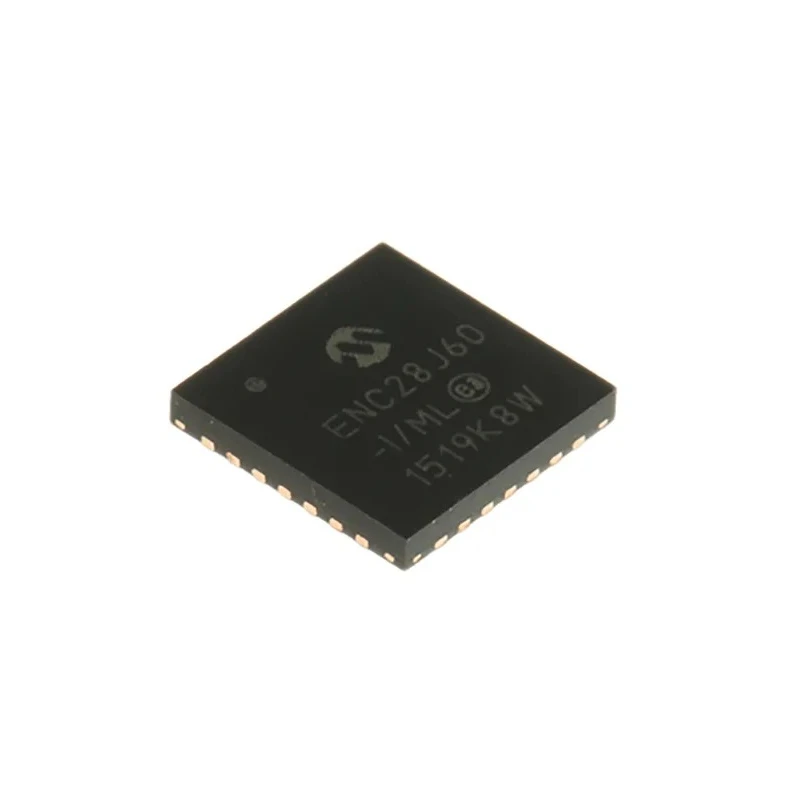

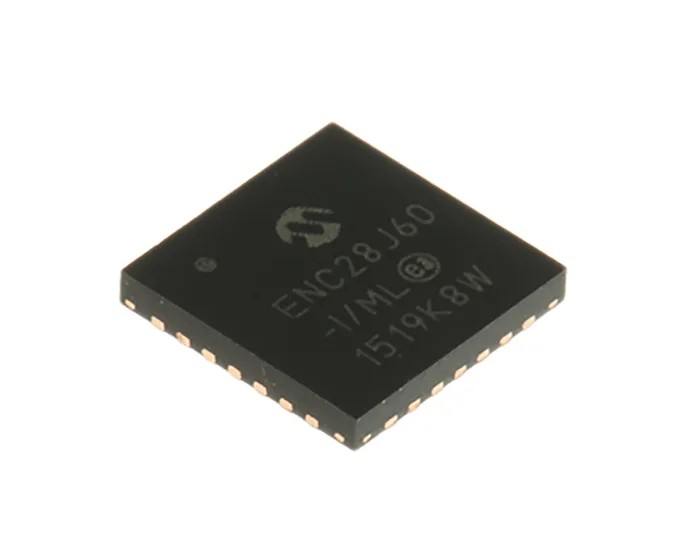

Microchip 28-Pin QFN EP Ethernet Controller IC, 3.3 V to 3.6 V, 10 Mbps Serial-SPI Communication ENC28J60-I/ML

Free Delivery in India | Lowest Global Shipping Charges

Microchip 28-Pin QFN EP Ethernet Controller IC, 3.3 V to 3.6 V, 10 Mbps Serial-SPI Communication ENC28J60-I/ML

Name: Microchip 28-Pin QFN EP Ethernet Controller IC, 3.3 V to 3.6 V, 10 Mbps Serial-SPI Communication ENC28J60-I/ML
Brand: Microchip
SKU: 204478
Price: 6.45 USD
Availability: InStock



Category Electronic Components Brand Microchip Condition New

Specifications

Country of Origin	India
Brand	Microchip
Height	1mm
Length	6mm
Model	ENC28J60-I/ML
Width	6mm
Mount Type	Surface
Number Of Ports	1
Maximum Operating Temperature	85°C
Package Type	QFN EP
Sub Type	Ethernet Controller
Minimum Operating Temperature	-40°C
ISO 9001	2000, ISO/TS-16949:2002
Communication Mode	Full Duplex/Half Duplex
Interface Type	Serial-SPI
Standards/Approvals	ISO 9001:2000, ISO/TS-16949:2002
Pin Count	28
Maximum Supply Voltage	3.6V
Minimum Supply Voltage	3.3V
Maximum Data Rate	10Mbps
Standard Supported	IEEE 802.3
Standards/ApprovalsISO 9001	2000, ISO/TS-16949:2002

Key Features

This controller features integrated MAC and PHY for efficient Ethernet communication.
Operates within a voltage range from 3.3 V minimum to 3.6 V maximum supply voltage.
Supports SPI interface with clock speeds up to 25 MHz for fast data transfer.
Compact 28-pin QFN EP surface mount package with 6 mm × 6 mm dimensions and 1 mm height.
Designed for industrial and commercial applications including security, instrumentation, and home automation.
Compliant with IEEE 802.3 standard ensuring broad compatibility.
Operating temperature ranges from -40°C to 85°C for reliable performance in harsh environments.
Includes PHY loopback mode and supports MAC unicast, multicast, and broadcast packets.

Product Description

Microchip ENC28J60-I/ML is a high-performance 28-pin QFN EP Ethernet Controller IC designed for 10Base-T Ethernet networks. Operating at 3.3 V to 3.6 V supply voltages, it delivers a maximum data rate of 10 Mbps with support for Full Duplex and Half Duplex communication modes. The device integrates both MAC and PHY layers, providing a compact and efficient solution for Ethernet interface requirements in embedded systems.

The compact footprint of 6 mm by 6 mm with a low profile of 1 mm high makes this IC ideal for space-constrained designs. It communicates via a Serial-SPI interface capable of clock speeds up to 25 MHz, which enables fast and reliable data transfers for industrial, commercial, and home automation applications. The ENC28J60-I/ML supports IEEE 802.3 networking standards and essential Ethernet functions such as MAC unicast, multicast, and broadcast packet handling.

With a wide operating temperature range of -40°C to 85°C, this Ethernet controller IC is suitable for harsh and demanding environments common in industrial automation, building automation, security systems, instrumentation, and VoIP applications. The IC also features PHY loopback mode and programmable outputs for diagnostic and testing purposes.

The product complies with RoHS directives and is manufactured under ISO 9001:2000 and ISO/TS-16949:2002 quality standards, assuring high reliability and consistent performance. Its surface mount QFN EP package ensures ease of assembly and excellent thermal performance.

Integrated MAC and PHY layers support efficient Ethernet communication. 10Base-T Ethernet controller with 10 Mbps bandwidth. SPI interface with clock speeds up to 25 MHz. Full Duplex and Half Duplex communication modes supported.

Compact 28-pin QFN EP surface mount package, 6 mm × 6 mm × 1 mm. Wide operating temperature range: -40°C to 85°C. Compliant with IEEE 802.3 and RoHS standards. Ideal for industrial automation, home control, security, and instrumentation.

Manufactured under ISO 9001:2000 and ISO/TS-16949:2002 standards. Explore our comprehensive selection of Ethernet Interface ICs and related components for your industrial or commercial networking applications at EnvMart.
