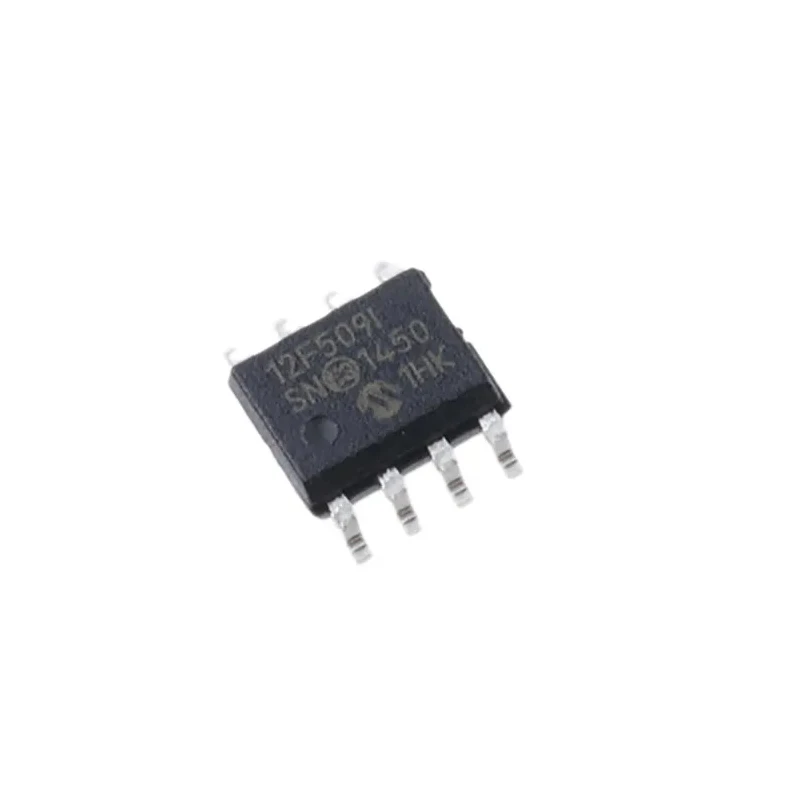

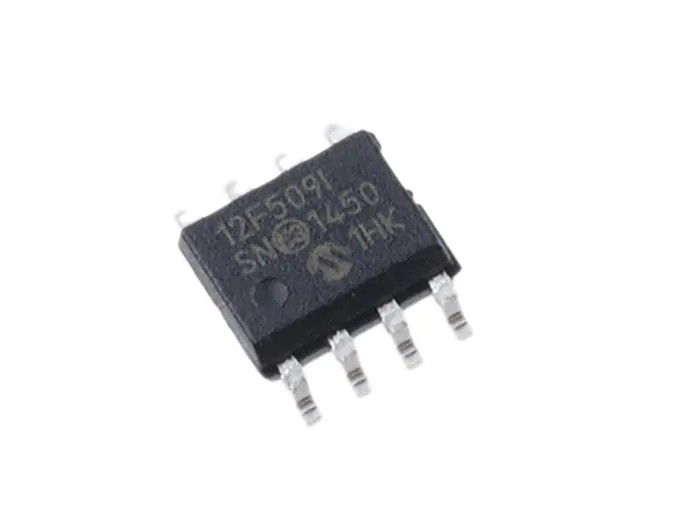

Microchip 8-bit PIC Microcontroller 4 MHz 1.5kB FLASH 8-Pin SOIC PIC12F509
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.5mm |
| Length | 4.9mm |
| Model | PIC12F509 |
| Width | 3.9mm |
| Mount Type | Surface |
| Series | PIC12F509 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Ram size | 41bit |
| Pin Count | 8 |
| Automotive Standard | ISO/TS 16949 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 1.5kB |
| Maximum Clock Frequency | 4MHz |
| Number of Programmable I/Os | 6 |
| Number of Timers | 1 |
| Instruction Set Architecture | RISC |
| ADCs | 0 bit |
| Program Memory Type | FLASH |
| Microchip, 8bit PIC, PIC12LC Microcontroller, 4MHz, 1K ROM, 8-Pin SOICBrand | Microchip |
Key Features
- Operates with a maximum clock frequency of 4 MHz for efficient processing.
- Includes 1.5kB of FLASH program memory for versatile coding.
- Features 6 programmable I/O pins for diverse interfacing options.
- Surface mount SOIC package with 8 pins for compact PCB designs.
- Supports In-Circuit Serial Programming (ICSP) and debugging.
- Low power dissipation of 800mW for energy-efficient applications.
- Operating temperature range is from -40°C to 85°C, suitable for harsh environments.
- Based on a baseline PIC core with a 2-level hardware stack and RISC architecture.
Product Description
Microchip PIC12F509 is a compact 8-bit microcontroller operating at 4 MHz with 1.5kB FLASH memory and an 8-pin SOIC surface mount package. This device is engineered for embedded applications requiring small form factor and efficient processing.
Featuring a RISC instruction set with 33 instructions and a 2-level hardware stack, it delivers up to 1 MIPS performance. It includes 6 programmable I/O pins and a single 8-bit timer, providing flexibility for control and timing operations.
The PIC12F509 supports In-Circuit Serial Programming (ICSP) and In-Circuit Debugging (ICD), making development and iterative programming straightforward. Low power consumption with maximum power dissipation of 800mW enhances energy efficiency in embedded systems.
With an operating temperature range of -40°C to 85°C, this microcontroller is suitable for automotive and industrial conditions, compliant with ISO/TS 16949 standards. Its internal RC oscillator provides ±1% frequency accuracy, important for time-critical applications.
Maximum clock frequency of 4 MHz enabling fast instruction cycles. 1.5kB of FLASH memory allows flexible firmware storage. 6 programmable I/O pins for versatile interfacing. Compact 8-pin SOIC surface mount packaging for space-saving circuit design.
Supports debugging and in-circuit programming techniques. Low power dissipation ideal for energy-constrained environments. Wide operating temperature range for reliable performance in harsh settings. RISC architecture ensures efficient code execution and minimal instruction cycles.
This Microchip PIC12F509 microcontroller is ideal for industrial, automotive, consumer electronics, and embedded control applications where space, power, and processing efficiency are priorities.
Explore more microcontrollers and related semiconductor components in the Electronics & Electricals category at EnvMart for comprehensive embedded system solutions.
Explore more products in our Electronic Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 4 MHz, enabling efficient processing capabilities.
It includes 1.5kB of FLASH program memory, allowing for versatile coding options in embedded applications.
The operating temperature range for this microcontroller is from -40°C to 85°C, making it suitable for harsh environments.
This model features 6 programmable I/O pins, providing flexibility for various interfacing options.
It comes in an 8-pin SOIC surface mount package, which is designed for compact PCB layouts.
The maximum power dissipation is 800mW, which contributes to its energy-efficient operation.
The minimum supply voltage is 2V, and the maximum supply voltage is 5.5V.
This microcontroller is based on a RISC architecture, which ensures efficient code execution and minimal instruction cycles.
Yes, it supports In-Circuit Serial Programming (ICSP) and In-Circuit Debugging (ICD) for easy development and programming.
This model complies with the ISO/TS 16949 automotive standard, ensuring quality for automotive applications.
The dimensions are as follows: height is 1.5mm, length is 4.9mm, and width is 3.9mm.
This microcontroller includes 1 timer, which can be used for control and timing operations.
