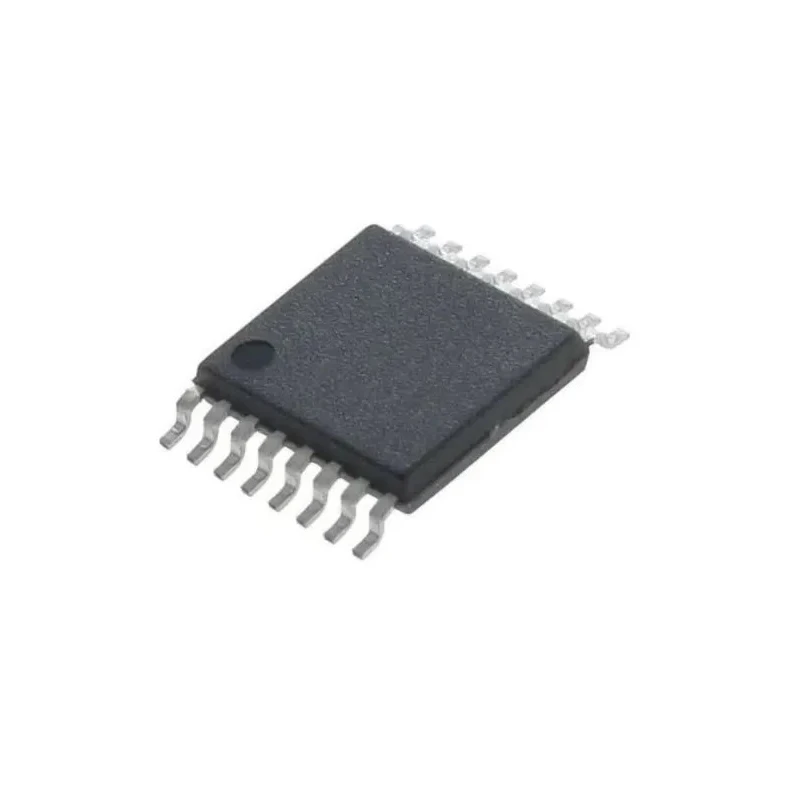

Renesas Electronics Clock Buffer 16-Pin Surface Mount TSSOP Miniature Low Skew 1-to-4 Fanout 1.5V-3.3V 350MHz 8305AGLF

Renesas Electronics 8305AGLF Clock Buffer is a highly reliable low skew, 1-to-4 fanout buffer designed for clock signal distribution in complex electronic systems. It supports differential and single ended LVCMOS/LVTTL inputs, making it adaptable to various clock sources. The device features an internal synchronization of the clock enable to eliminate runt pulses during asynchronous toggling, ensuring clean output signals.

The clock buffer has four LVCMOS/LVTTL outputs with low 7 ohm output impedance that maintain signal integrity at frequencies up to 350MHz. Signals are forced to a stable LOW state when the clock is disabled, preventing potential glitches on downstream components. The separate output enable pin controls whether outputs are in active or high impedance states, which is beneficial for shared bus systems.

This compact device comes in a 16-pin TSSOP surface mount package with dimensions 4.0mm x 0.9mm, suitable for dense PCB layouts. It operates within a voltage supply range of 1.5V to 3.3V and an operating temperature range from 0°C to 70°C, fitting standard commercial application conditions.

The 8305AGLF ensures excellent timing performance with a maximum output skew of 35 picoseconds and maximum part-to-part skew of 700 picoseconds, enabling precise synchronization across clock domains. Furthermore, it maintains low additive phase jitter of 0.04 picoseconds RMS to preserve signal quality, critical in timing-sensitive industrial, telecommunications, and computing applications.

Typical applications include industrial electronic systems, laboratory instrumentation requiring precise clock timing, telecommunications equipment, and other high-frequency digital circuits.

Supports selectable differential or single ended clock inputs. Four buffered outputs for broad signal distribution. Surface mount 16-pin TSSOP package conserves PCB space. Wide supply voltage range from 1.5V to 3.3V. High frequency operation up to 350MHz.

Low output and part-to-part skew ensure timing accuracy. Stable operation across 0°C to 70°C operating temperature. Output enable provides control over output state. Low additive phase jitter for superior signal integrity.

Renesas Electronics 8305AGLF is an essential clock distribution IC selected for applications requiring dependable and synchronized clock signals. Browse the Electronics Components category on EnvMart for comparable high-precision semiconductor clock drivers.
