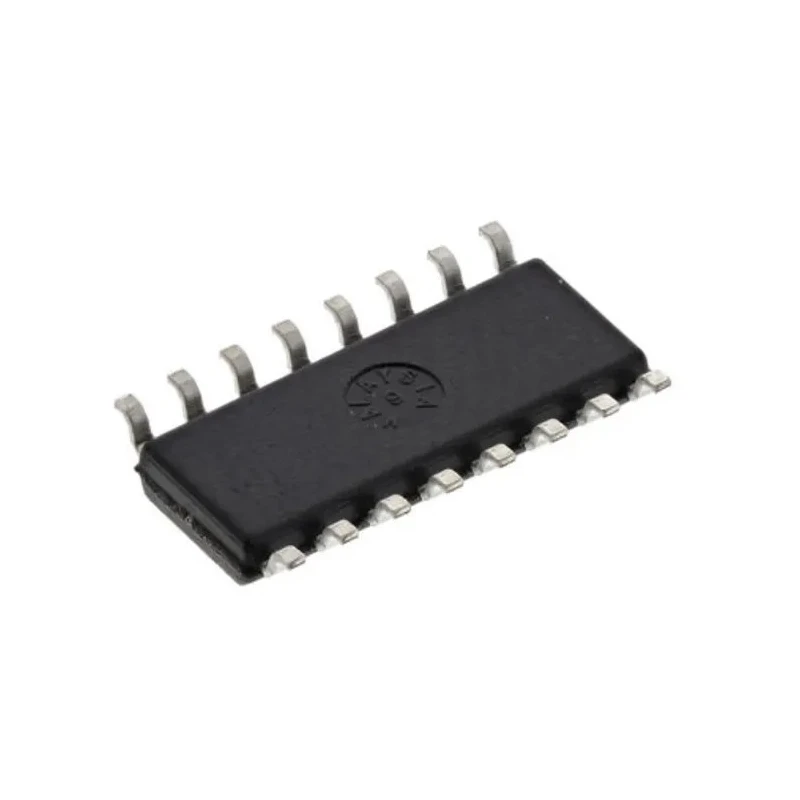

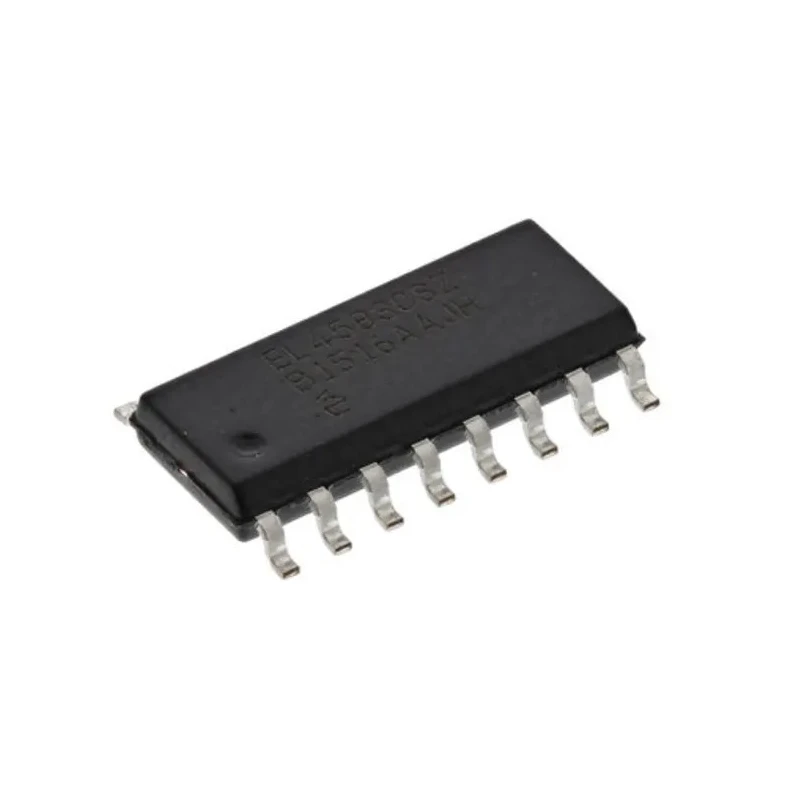

Renesas Electronics Analogue Switch, 2 CMOS Dual SPDT, 16-Pin SOIC DG403DYZ
Specifications
| Country of Origin | Philippines |
|---|---|
| Brand | Renesas Electronics |
| Height | 1.5mm |
| Length | 10mm |
| Model | DG403DYZ |
| Width | 4mm |
| Mount Type | Surface |
| Output type | CMOS/TTL |
| Series | DG403 |
| Configuration | Dual SPDT |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 16 |
| Number of Elements per Chip | 2 |
| Maximum Supply Voltage | 34V |
| Logic Family | CMOS |
| Minimum Supply Voltage | -5V |
| Maximum On State Resistance | 55Ω |
Key Features
- This device belongs to the CMOS logic family ensuring low power operation.
- It provides a dual single-pole double-throw (SPDT) configuration.
- The switch operates within a voltage range from -5V minimum supply to 34V maximum supply.
- Maximum on-state resistance is 55 ohms ensuring efficient signal switching.
- Operating temperature ranges from -40°C to 85°C suitable for various industrial environments.
- The package dimensions are compact with length 10 mm, width 4 mm, and height 1.5 mm for PCB space savings.
- RoHS compliant ensuring environmental safety standards.
- Manufactured in the Philippines with high reliability standards.
Product Description
Renesas Electronics DG403DYZ is a high-quality analogue switch designed with 2 CMOS dual SPDT switches integrated into a 16-pin SOIC surface mount package. It belongs to the CMOS logic family, offering low power consumption and high performance in electronic circuit switching applications.
The switch supports operation voltages ranging from a minimum of -5V up to a maximum of 34V, making it versatile for diverse electrical systems. It features a maximum on-state resistance of 55 ohms, which helps in minimizing signal loss during switching operations.
Its ambient operating temperature range from -40°C to 85°C ensures it can be deployed reliably in harsh industrial, manufacturing, automotive, and electronic component applications.
The compact device dimensions of 10 mm length, 4 mm width, and 1.5 mm height provide optimal PCB space efficiency for modern electronic designs. The DG403DYZ is RoHS certified, meeting environmental compliance regulations for safer use and disposal.
Manufactured in the Philippines, this switch demonstrates Renesas Electronics commitment to quality and reliability in semiconductor components. Low power consumption CMOS logic family. Dual SPDT configuration offers flexible switching.
Wide supply voltage range from -5V to 34V. Maximum on resistance of 55Ω for minimal signal interference. Wide operating temperature range of -40°C to 85°C. Compact 16-pin SOIC package dimensions. RoHS compliant for environmental safety.
This product is a reliable choice for electronic component manufacturing, industrial automation, instrumentation, and electronic control systems. Explore the Electronics & Electricals category at EnvMart for compatible switches and semiconductor components.
Explore more products in our Electronic Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a voltage range from -5V minimum supply to 34V maximum supply.
The maximum on-state resistance is 55 ohms, which helps minimize signal loss during switching operations.
The package dimensions are 10 mm in length, 4 mm in width, and 1.5 mm in height, allowing for efficient PCB space utilization.
It has an operating temperature range from -40°C to 85°C, making it suitable for various industrial environments.
This switch is housed in a 16-pin SOIC surface mount package.
Yes, it is RoHS compliant, ensuring it meets environmental safety standards.
It features a dual single-pole double-throw (SPDT) configuration, providing flexible switching options.
This model belongs to the CMOS logic family, which is known for low power operation.
There are 2 elements per chip in this model.
The output type is compatible with CMOS and TTL logic levels.
It is manufactured in the Philippines, adhering to high reliability standards.
This switch is suitable for electronic component manufacturing, industrial automation, instrumentation, and electronic control systems.
