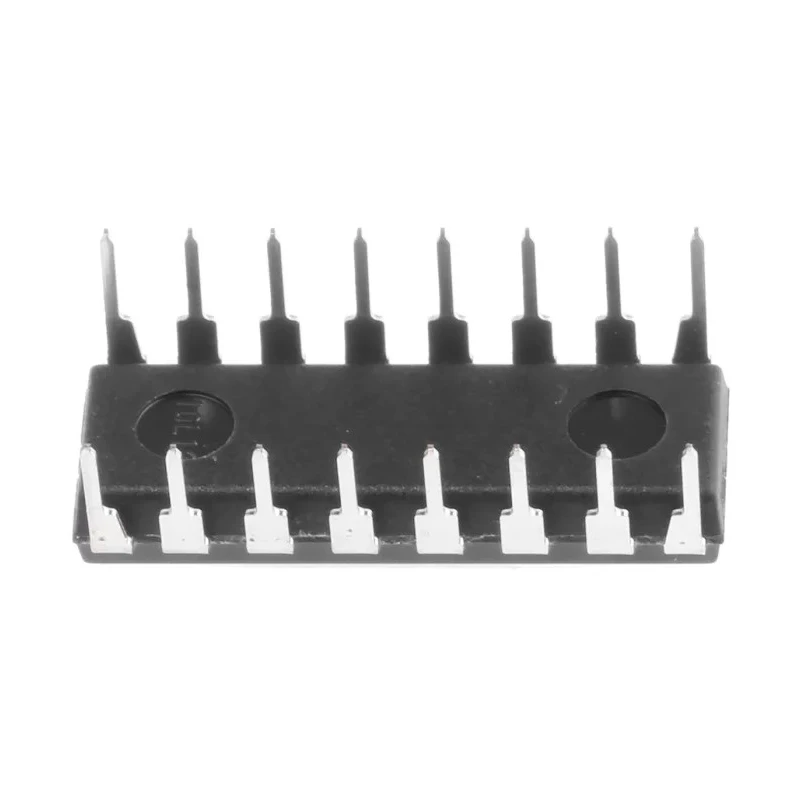

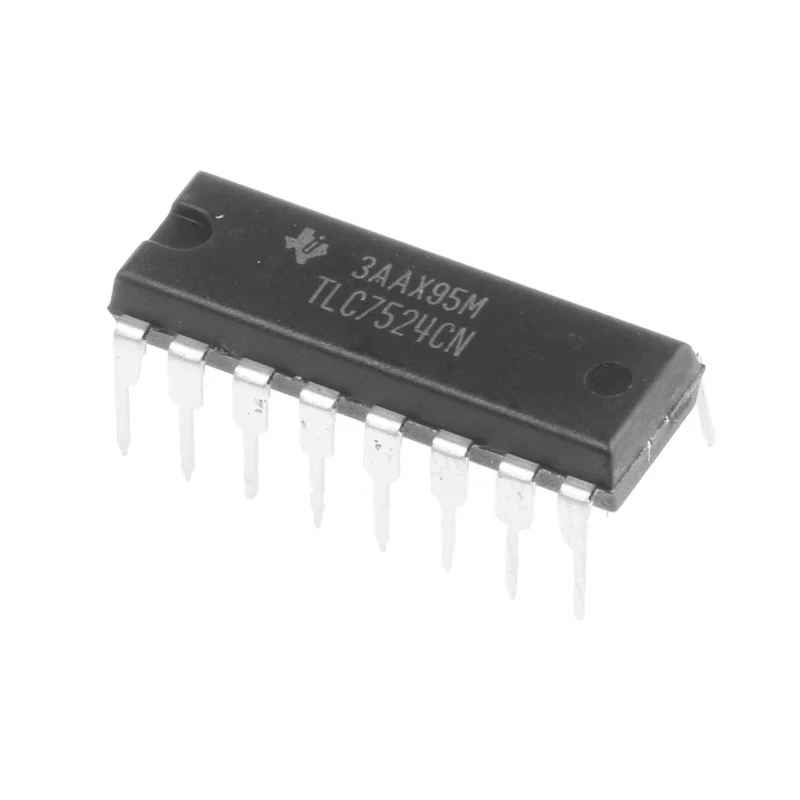

Texas Instruments Digital to Analogue Converter DAC 8 bit Parallel Interface 10 Msps 16-Pin PDIP TLC7524CN
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 8 bit |
| Brand | Texas Instruments |
| Height | 5.08mm |
| Length | 26.9mm |
| Model | TLC7524CN |
| Width | 6.6mm |
| Mount Type | Through Hole |
| Settling Time | 0.1μs |
| Sampling rate | 10Msps |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 1 |
| Interface Type | Parallel |
| Architecture | R-2R, Resistor String |
| Pin Count | 16 |
| Maximum Supply Voltage | 16.5V |
| Minimum Supply Voltage | 5.5V |
Key Features
- Utilizes an R-2R resistor string architecture for stable and accurate conversion.
- Operates with a supply voltage range from 5.5V to 16.5V.
- Provides a fast settling time of 0.1 microseconds for rapid output stabilization.
- Designed for single channel operation with a parallel interface type for ease of integration.
- Operates within temperature limits of 0°C to 70°C, suitable for industrial environments.
- Compact 16-pin PDIP package with dimensions 26.9mm length, 6.6mm width, and 5.08mm height.
- External voltage reference enhances output accuracy and flexibility.
- Mount type is through-hole, ideal for robust PCB assembly.
Product Description
Texas Instruments TLC7524CN Digital to Analogue Converter is a high-performance 8 bit DAC device featuring parallel interface communication and operating at a high sampling rate of 10 Msps. This 16-pin PDIP package uses a proven R-2R resistor string architecture to deliver reliable digital-to-analog conversion with fast settling times of 0.1 microseconds.
Designed for single channel operation, the TLC7524CN supports an input voltage supply range from 5.5V minimum to 16.5V maximum and can operate across a temperature range of 0°C to 70°C, making it suitable for various industrial and electronic applications.
The device's through-hole mounting and compact dimensions of 26.9 mm length, 6.6 mm width, and 5.08 mm height make it adaptable for a wide range of printed circuit board designs. External voltage reference capability allows improved accuracy and customization for specific output needs.
R-2R resistor string architecture for precision DAC conversion. 8 bit resolution with parallel interface for efficient data handling. High-speed operation at 10 Msps sampling rate. Single channel design ensuring focused application usage.
Wide operating supply voltage from 5.5V to 16.5V. Operating temperature range suitable for industrial environments. 16-pin PDIP package with through-hole mounting. Fast settling time of 0.1 microseconds for responsive output.
External voltage reference for output accuracy.
This DAC is widely used in electronic component manufacturing, instrumentation, control systems, and signal processing applications within industrial, laboratory, and commercial electronic environments.
Explore the extensive range of semiconductor and semiconductor components available at EnvMart to complement this product.
Explore more products in our Electronic Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TLC7524CN Digital to Analogue Converter has a resolution of 8 bits.
This DAC operates with a maximum supply voltage of 16.5V.
The sampling rate of the TLC7524CN is 10 Msps.
It utilizes a parallel interface for communication.
The dimensions of this model are 26.9 mm in length, 6.6 mm in width, and 5.08 mm in height.
This DAC has a fast settling time of 0.1 microseconds.
The operating temperature range for the TLC7524CN is from 0°C to 70°C.
This DAC is designed for single channel operation.
It employs an R-2R resistor string architecture for digital-to-analog conversion.
The TLC7524CN features a through-hole mounting type.
The country of origin for this model is India.
This DAC operates with a minimum supply voltage of 5.5V.
