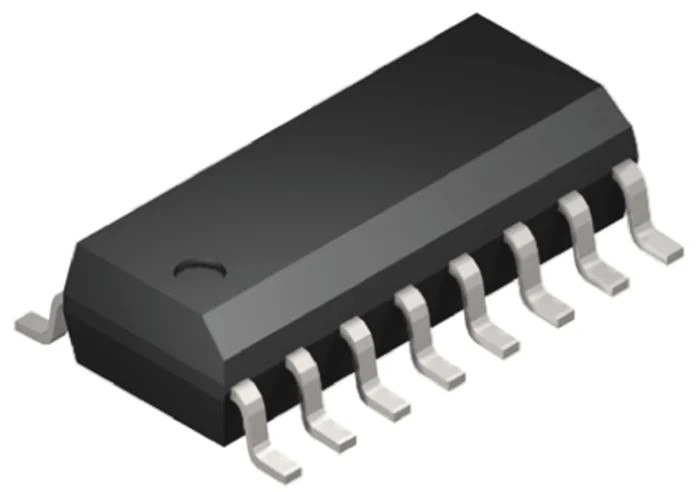

onsemi 6-Channel Non-Inverting 3 State Buffer, 16-Pin SOIC MC14503BDR2G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 1.5mm |
| Length | 10mm |
| Model | MC14503BDR2G |
| Mount Type | Surface |
| Output type | 3 State |
| Series | MC14503B |
| Input Type | Single Ended |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -55°C |
| Polarity | Non-Inverting |
| Number Of Channels | 6 |
| Pin Count | 16 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 18V |
| Logic Family | CMOS |
| Logic Function | Buffer |
| Minimum Supply Voltage | 3V |
| Maximum High Level Output Current | 19.2mA |
| Maximum Propagation Delay Time @ CL | 200ns |
| Supply Current | 15μA |
| Maximum Low Level Output Current | -8.2mA |
| Wide operating voltage range | 3 to 18V |
Key Features
- Part of the MC14503B series offering 6 buffering channels.
- Operates from a wide voltage range of 3V to 18V for versatile use.
- Non-inverting output with 3-state functionality enables flexible circuit design.
- Surface mount package with 16 pins in SOIC form factor.
- Features low supply current of 15μA for energy-efficient operations.
- Has maximum propagation delay time of 200ns ensuring reliable timing.
- Operating temperature supports -55°C to 125°C suitable for harsh environments.
- Compliant with automotive standard AEC-Q100 ensuring quality and durability.
Product Description
onsemi MC14503BDR2G is a 6-Channel Non-Inverting 3 State Buffer IC housed in a 16-pin SOIC surface mount package, part of the MC14503B CMOS logic family. This buffer is designed to operate over a wide voltage range from 3V to 18V, providing flexibility in various electronic circuit designs.
The device features single-ended inputs and non-inverting outputs with 3-state capability, useful in digital logic systems requiring bus driving and buffering. With a maximum propagation delay of 200ns and a low supply current of 15μA, it ensures efficient and stable performance while consuming minimal power.
The IC supports an operating temperature range from -55°C to 125°C and meets the automotive AEC-Q100 standard, indicating robustness in demanding environments. Typical applications include use in industrial, automotive, consumer electronics, and embedded system designs where reliable buffer functionality is essential.
Part of the MC14503B series providing 6 channels of buffered output. Wide operating voltage range from 3V up to 18V. Compact SOIC 16-pin surface mount package facilitates PCB space optimization. Low power consumption with supply current of 15μA.
Non-inverting 3-state outputs suitable for bus interfacing. Automotive grade AEC-Q100 compliant ensuring high reliability. Operating temperatures from -55°C to 125°C for harsh conditions. Maximum output currents: 19.2mA (high level), -8.2mA (low level).
Propagation delay time ensures timing precision in digital circuits. Ideal for industrial, automotive, and commercial logic applications.
This IC is essential for projects requiring stable and robust logic buffering, offering ease of integration with standard CMOS logic levels and broad voltage tolerance. Browse more logic ICs and Electronic Components on EnvMart for your engineering and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates over a wide voltage range from 3V to 18V, providing flexibility for various electronic circuit designs.
It supports 6 buffering channels, making it suitable for applications that require multiple outputs.
The maximum propagation delay time for the MC14503BDR2G is 200ns, ensuring reliable timing in digital circuits.
This unit has a low supply current of 15μA, which contributes to its energy-efficient operation.
It features non-inverting outputs with 3-state capability, suitable for bus interfacing in digital logic systems.
The MC14503BDR2G operates within a temperature range of -55°C to 125°C, making it suitable for harsh environments.
It is housed in a 16-pin SOIC surface mount package, which helps optimize PCB space.
This model is compliant with the automotive standard AEC-Q100, indicating its robustness and reliability in automotive applications.
The maximum high-level output current is 19.2mA, allowing it to drive loads effectively.
It utilizes single-ended inputs, which are common in digital logic applications.
The height of this model is 1.5mm, contributing to its compact design.
This buffer is part of the CMOS logic family, which is widely used in electronic circuits.
